Basic Info.
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid
Certification
CE, ISO, API
No.S of Rotor and Stator
Single, Two Stage, Three Stage
Connection Type
Clamp, Thread, Flange
Function
Mixing, Dispersion, Breaking, Dissolution, Refiner
Seal Type
Double Flushed Mechanical Seal
Contact Material
SS304, 316, 316L or Others
Rotation Speed
1450r/Min, 2900r/Min, 3600r/Min
Motor Type
Fixed Speed Motor, Variable Speed Motor
Installation Type
Fix, Movabe
Operating type
Continuous Operating
Transport Package
Plywood Case
Production Capacity
5000sets/Year
Product Description

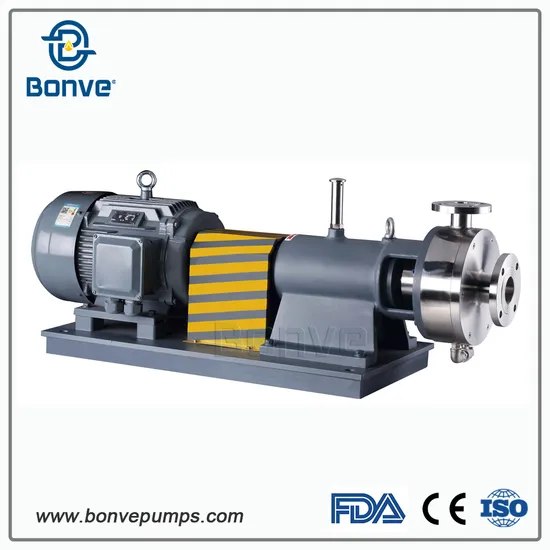

Bonve Pumps Co., Ltd. presents the Supper SS High Shear Rotor Stator Mixer, ensuring high efficiency in homogenizing processes. Ideal for various applications, this mixer offers a reliable solution with 18 months warranty.
Product DescriptionSuperior High Shear Rotor Stator Agitator mixing-equipmentBonve Pumps Co., Ltd. presents the Supper SS high shear rotor stator mixer, a high-efficiency product that revolutionizes mixing processes.
Features:100% dispersive shearQuickly dissolves solids without agglomerationNo dead ends, high evennessTime-saving, high-efficiency, low-consumptionSimple operation, convenient maintenanceRealizes automatic controlBenefits:Homogenization is crucial for creating high-quality products, enhancing taste, texture, and consistency. This leads to increased sales and customer satisfaction.
Upgrade your production process with the Supper SS high shear rotor stator mixer for superior results.
Working principleBonve Pumps Co., Ltd. Product DescriptionThe main components of our innovative pumps are stators and rotors. When the rotors run at high speeds, they generate centrifugal and fluid forces. The stators then apply strong power shearing, centrifugal pressing, breaking, fluid friction, and turbulence to the materials being processed (solid, fluid, and gas phases).
As a result of this advanced process, the materials are quickly refined, homogenized, dis-aggregated, and emulsified. This leads to the production of stable and high-quality products. Our pumps are designed to deliver efficient and effective results for various industrial applications.
Product lineBonve Pumps Co., Ltd.Bonve High Shear Mixers are available in 2 series:
FHM1 SeriesSingle stage rotor and statorDesigned for cyclic processing of medium and small batch productionSuitable for short distance transmission, homogeneous, and emulsionFHM3 SeriesThree-stage rotors and statorsAn extension of FHM1 seriesFor applications requiring greater and quicker homogenizing and emulsifyingIdeal for cyclic processing of medium and large-scale productionProduct ParametersFHM1 series
Model | Electrical Power (Kw) | Rotation Speed (r/min) | Capacity (m3/h) | Pressure (Mpa) | Diameter of inlet/outlet |
FHM1/100 | 2.2 | 2900 | 0-3 | 0-0.05 | DN40/40 |
FHM1/120 | 4 | 2900 | 0-4 | 0-0.1 | DN40/40 |
FHM1/140 | 5.5 | 2900 | 0-5 | 0-0.1 | DN50/40 |
FHM1/165 | 7.5 | 2900 | 0-8 | 0-0.15 | DN50/40 |
FHM1/185 | 15 | 2900 | 0-15 | 0-0.15 | DN65/50 |
FHM1/200 | 22 | 2900 | 0-20 | 0-0.15 | DN80/65 |
FHM1/220 | 30 | 2900 | 0-30 | 0-0.15 | DN80/65 |
FHM1/240 | 37 | 2900 | 0-50 | 0-0.2 | DN100/80 |
FHM3 series
Model | Electrical Power (Kw) | Rotation Speed (r/min) | Flow rate (m3/h) | Discharge pressure (Mpa) | Diameter of inlet/outlet |
FHM3/100 | 5.5 | 2900 | 0-3 | 0.1 | DN40/40 |
FHM3/120 | 7.5 | 2900 | 0-4 | 0.15 | DN40/40 |
FHM3/140 | 11 | 2900 | 0-5 | 0.2 | DN50/40 |
FHM3/165 | 18.5 | 2900 | 0-10 | 0.3 | DN50/40 |
FHM3/185 | 30 | 2900 | 0-20 | 0.4 | DN65/50 |
FHM3/200 | 45 | 2900 | 0-30 | 0.5 | DN80/65 |
FHM3/220 | 55 | 2900 | 0-40 | 0.5 | DN80/65 |
FHM3/240 | 90 | 2900 | 0-60 | 0.6 | DN100/80 |
Product Description:Zhejiang Huatai Bonve Pumps Co., Ltd. offers a high-quality lobe pump designed for products with poor liquidity or requiring a higher discharge pressure. The pump is recommended for installation before the homogenizer for efficient transferring.
Port size can be customized as needed, with flange connection as standard and clamp or thread options available.The motor matched with the pump is Siemens or an equivalent brand, with a standard 3-phase/380V/50Hz configuration.Material of construction (MOC) is SS304 as standard, with optional SS316, 316L, and others available. The pump is equipped with a 150°C (302°F) anti-heat seal.Specifications are subject to change without prior notification, as Bonve reserves the right to make adjustments.DimensionsApplications
Company Name:Zhejiang Huatai Bonve Pumps Co., Ltd. |
Product Name:Supper Ss High Shear Rotor Stator Mixer with High Efficiency |
Keywords:High Shear Rate Mixer, Rotor Stator High Shear Mixer, High Shear Mixer Silverson |
Attributes:After-sales Service: Online Service, Warranty Period: 18 Months, Type: Homogenizer |
Description: High efficiency Supper Ss High Shear Rotor Stator Mixer for precise homogenization. Enjoy 18 months warranty and online service support.
Your industry/application
|
|
Processed medium's name
|
|
Medium's feature
| Sanitary ( ) Corrosive ( ) Poisonous ( )
|
Medium's proportion
| Liquid % ____ Density____ Viscosity____ PH value____ Solid % ____ Solid size ___
|
Processing requirement
| Mixing dissolving ( ) Dispersed suspension ( ) Emulsification ( ) Homogeneity ( ) Reaction ( ) Powder liquid mixing ( )
|
Working type
| Continuous circulation work ( ) Continuous non-circulation work ( ) Batch type ( )
|
Working temperature
|
|
Particle size
| Before processing _______ After processing ________
|
Handling capacity required
|
|
Delivery head/pressure required
|
|
Vessel's dimension
|
|
Existing pipe size and connection type
|
|
The existing process equipment and the existing problems
|
|
About usWelcome Bonve Pumps Co., Ltd.Zhejiang Huatai Bonve Pumps Co., Ltd. is a leading Chinese manufacturer specializing in Rotary Lobe Pumps and Homogenizer Mixers. Our ISO9001:2015 approved company offers customized pumping and mixing solutions to meet our customers' needs, with over 20 years of expertise in the industry.
When you choose a Bonve pump, you benefit from high-quality pumps, engineering expertise, and years of application knowledge in various industries such as food, chemical, pharmaceutical, and cosmetics.
As of 2021, we have obtained more than 30 patents, including invention and utility model patents. Our state-of-the-art facilities include a fully automated pump testing system, 98 advanced CNC machines, and precise inspection equipment to ensure top-notch quality.
Bonve pumps are trusted and used in over 40 countries worldwide, with more than 5000 companies relying on our pumps. Over 60000 units of Bonve pumps are currently in operation globally, making us a preferred choice for many manufacturing processes.
We look forward to partnering with you and providing top-of-the-line pumping and mixing solutions for your production needs.
FAQBonve Pumps Co., Ltd.Product Description:
Guaranteed Performance: Our pumps are meticulously selected based on your specific medium and technological requirements, ensuring optimal performance for critical processes.Industry Experience: With over 20 years of experience (2001-2021) and more than 600,000 units running worldwide, we provide rich and effective solutions.Quality Control: Our rigorous quality control process includes vendor evaluation, incoming material inspection, and thorough testing to guarantee reliability.High-Quality Construction: All main pump parts are precision machined using CNC technology for durability and efficiency.Warranty: Enjoy an 18-month warranty from the manufacturing date, with prompt parts replacement at no cost in case of any quality issues.User-Friendly Operation: Access our comprehensive English manual, training materials, and videos for easy installation and maintenance guidance.
