Hot Sale Square Bale Weed Loose Grass Wheat Straw Crushing Machine Price

Product Description

Hot Sale Square Bale Weed Loose Grass Wheat Straw Crushing Machine Price
Product Description
Different types of bale shredder Product Description:
1.Vertical Straw Bales Shredder
Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability, and convenient disassembly and transportation.

Motor Driving	PTO Driving

Vertical Straw Bales Shredder Technical parameter

Specification Model	LB-80	LB-100	LB-130	LB-150
Matching power	22-30kw	45-55kw	75kw	90kw
Crushing efficiency	2-3t/h	3-5t/h	5-7t/h	8-10t/h
Crushing effect	3-8cm	3-8cm	3-8cm	3-8cm
Top diameter	1800mm	2200mm	2600mnm	2800mm
Bottom diameter	1500mm	1800mm	2200mm	2400mm
Number of tools	24 pcs	24 pcs	24 pcs	24 pcs
Discharge method	Spray	Spray/bottom discharge	bottom discharge	bottom discharge
Machine weight	1700kg	2300kg	2800kg	4300kg
Dimensions	3.2*1.8*2m	3.6*2.2*2.3m	4*2.6*2.5m	4.7*2.8*2.8m

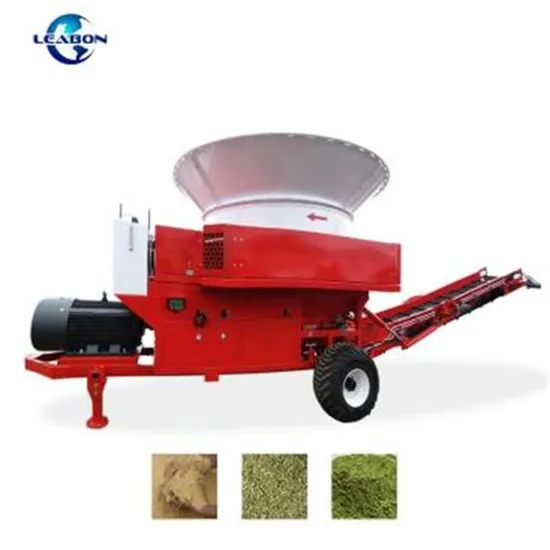

2.Belt Grass Bale Shredder
The combined tractor power of F1000 is 90~180 hp, the rotational speed of the PTO shaft is 1000r/min. According to the different grass grinding lengths, the production efficiency can reach 3-15 tons per hour, and for grain grinding like corns, it can reach 40-70 tons per hour. Besides meeting the farm's self-use requirement of 5000 heads beefs, it can be also used to process for other farms to collect extra fee, thereby improve the utilization rate of the equipment and increase more benefits. (1)Electric Type Belt Straw Bale Shredder
(2)PTO Type Belt Straw Bale Shredder
Belt Grass Bale Shredder Technical parameter

Type	LBF-1000
Rotor hammer mill	Fly hammer: 64pcs, wear-resisting alloy material Fly hammer shaft: 8pcs, strength alloy steel Drive: PTO
Combined power	Tractor drive: 90-180HP Motor drive: 90-150kw PTO speed: 1000/r-min
Screen mesh	Thickness: 6mm;Diameter of hole: 6mm-125mm
Drum/Tub	thickness: 3mm Outside width: 3.2m Inside Dia: 2.3m; Depth: 0.8m
Screw pusher	Type: bi-column symmetric; Length: 1150mm
discharging conveyor	Type: folding hydraulic drive Maximum lifting height: 4.19 m Belt: Rubber
Transport size	6500x3200x3200 mm ; 5300kg

Product Structure

Production workshop

Raw Materials&Final Product


Customer feedback
Packaging & Shipping



Company Profile
1.Long Time Warranty, 2 Years. (Exclude Wearing Parts)
2.Offering Wearing Parts at Lower Price in the Future.
3.Prompt Response for your Doubts or Requirement.
4.Professional Solutions with different Demands.
5.SGS, BV Certificates for your Company, which means Trusbable Supplier in China.
6.CE, ISO Certificates of our Machine.
FAQ

Q1:What is your raw material and the material diameter? ------Our raw materials can be grass, maize straw, wheat straw, corn straw, etc.

Q2:What's the certification of your machine? ------CE Certification.

Q3:what's your voltage requirement? ------we can produce the machine voltage as your requirement.

Q4: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
