Small Plastic HDPE PP Auto Extrusion Blow Molding Machines Equipments for 500ml 1liter 2L 5L Water Bottle Cosmetics Bottles

Small Plastic HDPE PP Auto Extrusion Blow Molding Machines Equipments for 500ml 1liter 2L 5L Water Bottle Cosmetics Bottles

US$24,000.00
1 Piece
US$23,000.00
2+ Pieces

Basic Info.

Model NO.
GS-2L-II
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Skillful Engineer for Installation and Training
Hydraulic System
Yuken From Taiwan
Die Head
From 1 to 4
Screw Diameter
60mm
Pneumatic System
Delta
Eletrci System
ABB, Siemens, Omron, etc
Inverter Brand
ABB, Delta
Parison Controller
Moog 200 Points From Japan
Advantages
High Speed for Dairy Bottles 2000bph
Transport Package
Standard Export Package
Trademark
GS MACHINERY
Origin
Jiangsu, China
HS Code
8477309000
Production Capacity
20-50sets Per Year

Product Description


Product Description

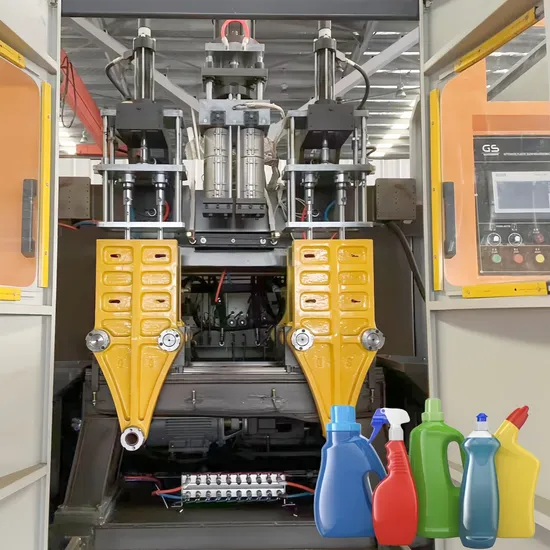

GS-2L-II double station machine is different from the single station machine in that it has one additional station with high-precision linear guide. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, etc. The largest capacity of the product can be 5L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production. MACHINE ADVANTAGES
1. Toggle-balanced clamping frame, with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. Can be achieved 16 blow pins at the same time perpendicular to the mold pin blow hole; patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan's CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality. Detailed Photos
MECHANICAL STRUCTURE
Mold carriage is with high-precision linear railway guide HIWIN from Taiwan;
The end positions & slow speed positions are controlled by proximity switches and braking valves
great clamping force and avoid mold swelling problem;
Whole blow pin frame could be turned over onto top platform, convenient for mold change
DIE HEAD
Head mode: the continuous extrusion head is designed double lips torpedo type die head with individual flow control valve;
Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
convenience to refueling, change color, purge, disassembly and cleaning with those die head.
Symmetry part of the wall thickness is very uniform;
HYDRAULIC SYSTEM
Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
Hard steel pipes fully avoid oil leaking;
World famous brand Yuken from Taiwan for oil pump & valve, Siemens motor, bigger oil cooler.
Inverter is from ABB or Taiwan DELTA, adjust the screw speed, saving energy .
CONTROL SYSTEM
Computer intelligent control system, operation, set and modify the production process conveniently.
provide remote control system to assist client's operatation;
have English, Russian, Arabic, Spanish, French, etc different language on touch screen, easier for operators in different countries.
ELECTRIAL SYSTEM
World famous brands like SIEMENS, OMRON, MINGWELL etc, full y-guaranteed machine preformance and liftspan.
MOOG parison controller 200 points with MOOG Servo valve for option.
could control bottle wall thickness precisely, saving production cost in a long run.
servo motor +servo pump are optional. saving 30--40% power consumption
rotary cutter fixed on machine, for neck waste cutting, suitable for different neck sizes, improve working efficiency greatly.
we have the best designer group to complete custom requirements.
equipped with a set of advanced mould processing system and the best machines
Application

Product Parameters
Specification GS-2L-II
Material PE,PP…
Max. container capacity L 2
Number of die set 1, 2, 3, 4
Machine Dimension m 2.9×2.1×2.6
Total weight ton 4
Accumulator head GS-2L-II
Number of die heating zone 3
Power of die heating KW 4.2
Max die -pin diameter mm 60
Center distance of twin-die mm 130
Center distance of tri-die mm 85
Center distance of four-die mm 65
Center distance of six-die mm --
Clamping Unit GS-2L-II
Clamping force KN 38
platen opening stroke mm 120-390
platen size mm 290×330
Max mould size mm 310×330
Mould thickness mm 120-220
Extruder Unit GS-2L-II
Screw diameter mm 60
Screw L/D ratio L/D 25\1
Extruding Volume Kg/hr 60-80
Number of heating zone zone 3
Extruder heating power KW 5-6.6
Extruder driving power KW 15-18.5
Power consumption GS-2L-II
Oil pump drive power KW 7.5
Fan power for screw KW 0.5
Total power KW 35-38
Air pressure Mpa 0.6
Air consumption M3/min 0.6-1.0
Average energy consumption KW 20



After Sales Service
-Installation & testing
A technician shall be sent to test the machine till it can work normally upon buyer's notification when everything is ready for installation and testing. The buyer shall bear all the charges involved since the technician leave off seller's company till he gets back, charges including transportation expenses, visa fee, accommodation, and insurance, etc. If the technician is required to go abroad, USD 120/day shall be charged as the service fee within the same time period stated above.
-Warranty & Guarantee
We provide 2 years guarantee since machine is running normally at buyer's factory.
The seller shall deal with all the problems due to the quality of the machine within the guarantee
period, with the damaged parts (unit price > USD 50) sent back for new ones.
Our company act strictly according to the requirement of ISO 9001 quality system with every spare part registered before shipment so as to assure prompt service.
24hours online for technical support
