Hot Selling Zj-516 Fan Pleating Machine Skirt Pleating Machine

Hot Selling Zj-516 Fan Pleating Machine Skirt Pleating Machine

US$5,000.00
1-9 Pieces
US$4,800.00
10+ Pieces

Basic Info.

Model NO.
ZJ-217
Condition
New
Certification
CE
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Drive
Electric
Thread Number
Garment Pleating Machine
Needle Number
Fabric Pleating Machine
Stitch Type
Skirt Pleating Machine
Machine Name
Multi-Function Pleating Machine
Type
Semi Automatic and Automatic
The Application
All Kinds of Chemical Fiber, Blended Fabrics, PVC,
MOQ
1 Set
Max Folding Width
1600mm
Max Folding Speed
80/Min
Weight
1400kg
Motor Power
1.2kw
Transport Package
Standard Wooden Case Packaging
Specification
3200*1650*1750mm
Trademark
Gashili
Origin
China
HS Code
8451500000
Production Capacity
80/Min

Product Description

Product Description

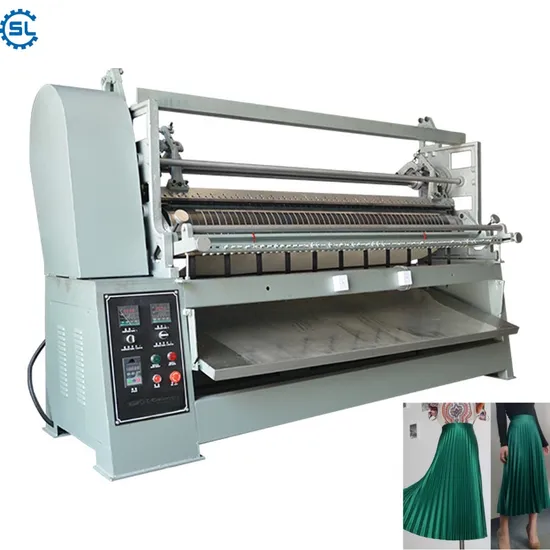

Multi-function Pleating Machine
This machine is a special equipment for pleating all kinds of chemical fiber, blended textile, PVC, PU leather, cowhide, pigskin, with personalized design, strong sense of three-dimensionality and special flower shape. There are many patterns, such as bamboo leaf pattern, straight pattern, wave pattern, pull view and their combination patterns.
Pleated bottom 0.2-2CM, pleated surface 0.3-3.5CM, after processing the fabric can produce various kinds of
The processed fabrics can be used to produce various kinds of garments and decorations, such as pajamas, shirts, children's clothing and lampshades and other decorative items.
Product Parameters
Model ZJ-217 ZJ-416 ZJ-516
Maximum folding width 1600mm 1600mm 1500mm
Maximum folding speed 80/min 200/min 100/min
Motor power 1.2kw 1.1kw 1.1kw
Electric heating power 9kw 8.1kw 9.6kw
Machine weight 1400kg 1100kg 900kg
Dimension 3200*1650*1750mm 2600*1250*1525mm 1900*1000*1300mm
Detailed Photos
ZJ-217 D model: computer servo mechanism. To control the movement of the cylinder, screw, motor and other components and with infrared positioning by a computer program.
ZJ-416 model can only make straight line vertical pleat, pleat size can be adjusted.
ZJ-516 model is mainly used in apparel sector crimp and stereotypes of special equipment.
