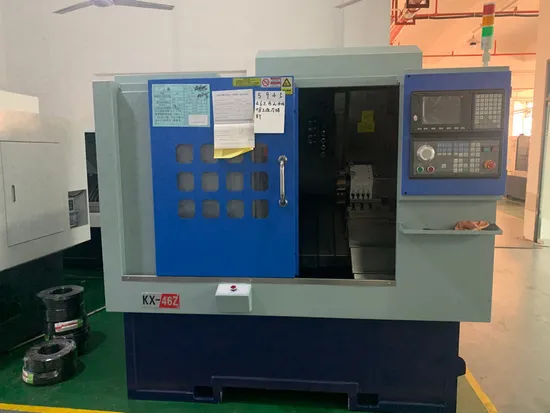

Automatic Slant Bed Lathe CNC Machine Kx46-R900 Torno CNC High Precision Nanjingkt System with 4+4 Live Tools on The Y Axis and 8 Potisiotnal Turret
Basic Info.
Model NO.
KX-46
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001, Eac
Condition
New
Max. Bar Hole
45mm
Transport Package
Wooden Case
Specification
2100*686*2050mm
Trademark
neoronko
Origin
Guangdong China
HS Code
8458110090
Production Capacity
500
Product Description
| KX-46 J | |||||||||
| Machinery Specification | |||||||||
| Specification | Parameter | Optional | |||||||
| LATHE | Slant bed degree | 45° | |||||||
| Clamping way | Hydraulic clamping | ||||||||
| Tool form | Row of knives | ||||||||
| PART | Guide rail | Taiwan 30 Linear guideway | |||||||
| Ball screw | Taiwan 32 ball grinding precision | ||||||||
| Bearing | XEZ | ||||||||
| Ground to spindle center height | 1080mm | ||||||||
| Spindle motor | 5.5kw DMC servo motor | 7.5 kw DMC servo motor | |||||||
| Feed servo | 1.5kw DMC servo motor | ||||||||
| CNC Control System | NANJINGKT 830Ti | SYNTEC/GSK/LNC | |||||||
| Application scope of processing | Normal Use Value | Maximum Value | |||||||
| working ability | Spindle bore | φ45mm | φ45mm | ||||||
| Maximum particle diameter (disc type) | 300mm | 350mm | |||||||
| Maximum length of workpiece to be processed | 300mm | 320mm | |||||||
| Single side cutting of stainless steel | 3mm | 4.5mm | |||||||
| Repositioning accuracy | ±0.0075mm | ||||||||
| smooth finish | 1RA | 1.6RA | |||||||
| High center of tool rest | 50mm | ||||||||
| Turning diameter | φ400mm | ||||||||
| Square tool specification | 20*20mm | ||||||||
| travel | X axis travel | 900mm | |||||||
| Z axis travel | 300mm | ||||||||
| Feed | X-axis fast moving velocity | 25m/min | 30m/min | ||||||
| Z-axis fast moving velocity | 25m/min | 30m/min | |||||||
| X axis servo power | 1.5KW | ||||||||
| Z axis servo power | 1.5KW | ||||||||
| Spindle | Spindle speed | 3500r/min | 4000r/min | ||||||
| Spindle motor power | 5.5KW | 7.5KW | |||||||
| spindle nose | A2-5 | ||||||||
| Support hydraulic chuck size | 8 inch | 10inch | |||||||
| Dimensional & weight | Dimensions | 2100×1500×1900 mm | |||||||
| Weight | 2350KG | ||||||||
