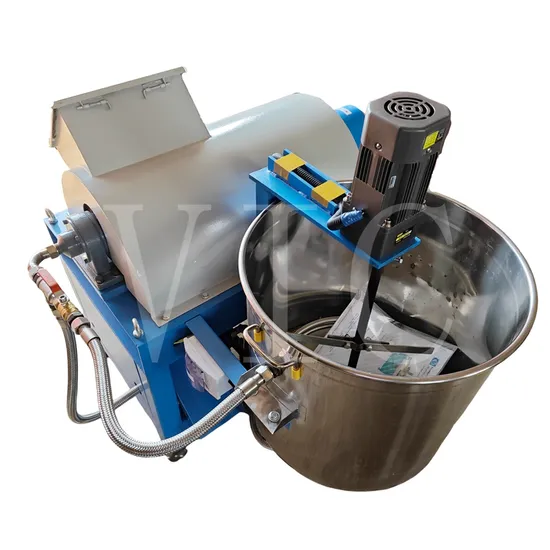

Automatic heating stiriing refining dephosphorization horizontal spiral oil slag residue centrifugal separator

Product Description

Auto horizontal slolid-liquid waste water edible oil screw centrifugal filter machine Product Description Working principle:
Spiral decanter centrifugal is according to the solid and liquid in the mixing oil by high speed rotating to go different direction:
The liquid will go to lower place, while the solid will go to higher place, adopt the different speed between variable diameter drum and variable diameter screw, and make full use of 5000rpm high speed centrifugal to force the solid into dynamic state, so can separate quickly to higher place by screw blade and straight rotor drum' reducing to realize one end have oil out, and the other end slag out.
Feature:
1. Continuous working, no filter cloth and filter sieve, so never need to change filtering medium while working.
2. High efficiency, every hour can process around 1Ton rapeseeds crude oil.
3. Easy operation, oil and slag automatically being separated so no need labor working.
4. The final oil are clear and pure, oil slag are formed and dried.
5. Material of stirring tank is stainless steel
6. The advanced automatic heating stirring system is more efficient
7. The adjustable feed and return system can adjust the output and oil cleanliness
Main data:

Model	DL-150A Spiral Decanter centrifugal
Power	3kw
Processing capacity	380kg/h
Inlet-outlet dia	800mm
Rated flow	2m/3h
Drum draw ratio	3.7L/D
Cleanness	4NAS
Size	990*1082*998mm
Weight	260kg

More pictrures and details:
1. Machine base 2. Main power box 3. Motor 4. Oil room 5. Synchronous differential system 6. Left bearing base 7. Hollow shaft 8. Drum 9. Dephosphorization system 10. Electric control system 11. Screw propeller shaft 12. Bearing box 13. Slag-out room 14. Main shaft 15. Oil seal 16. Right bearing base 17. Liquid transfer system 18. Oil pump 19. recycling pump 20 damping feet
High speed pure copper motor with double synchronous toothed belt supply strong power
The controlling system is easy to operate and safe
Oil pump system ensures continuous and stable flow
The automatic heating and stirring system with reducer can achieve the effect of dephosphorization by
adding appropriate medium.
High-speed rotating host system achieves solid-liquid separation effect
Adjustable support legs can be adjusted to the customer's needs
