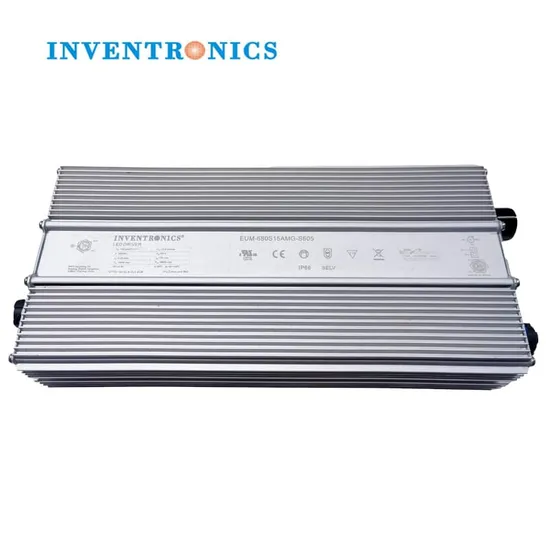

Inventronics Eum-680s15amg-S605 600W 680W 700W LED Grow Light Driver with Customized Dimmer and Waterproof Connectors

Product Description

Product Parameters
Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (6)
							120Vac	220Vac
0.125-1.7A	1.25-1.7A	1.7 A	90~305 Vac/ 127~300 Vdc	200 ~ 544Vdc	680W	95.5%	0.99	0.96	EUM-680S170MGS
0.18-2.4A	1.8-2.4A	2.1A	90~305 Vac/ 127~300 Vdc	141.5 ~ 378Vdc	680W	94.5%	0.99	0.96	EUM-680S240MGS
0.26-3.5A	2.6-3.5A	3.5A	90~305 Vac/ 127~300 Vdc	97.1 ~ 262Vdc	680W	95.0%	0.99	0.96	EUM-680S350MGS
0.42-5.6A	4.2-5.6A	5.6A	90~305 Vac/ 127~300 Vdc	60.7 ~ 163Vdc	680W	94.5%	0.99	0.96	EUM-680S560MGS
0.63-8.4A	6.3-8.4A	8.4A	90~305 Vac/ 127~300 Vdc	40.4 ~ 108Vdc	680W	95.0%	0.99	0.96	EUM-680S840MGS (4)
1.26-15.0A	12.6-15.0A	15.0A	90~305 Vac/ 127~300 Vdc	22.6 ~ 54Vdc	680W	95.5%	0.99	0.96	EUM-680S15AMGS (4)
1.26-15.0A	12.6-15.0A	15.0A	90~305 Vac/ 127~300 Vdc	22.6 ~ 54Vdc	680W	95.5%	0.99	0.96	EUM-680S15AMG-S605 (4)

Notes: (1) (1) Output current range with constant power at 680W. (2) Certified input voltage range: KC: 100-240Vac; otherwise: 100-277Vac. (3) Measured at 100% load and 220Vac input (see below "General Specifications" for details). (4) SELV output. Product Description
Fetaures: Panel mount connectors facilitates installation Brackets accommodates variety of hanging applications Ultra High Efficiency (Up to 96.0%) Full Power at Wide Output Current Range (Constant Power) Adjustable Output Current (AOC)with Programmability Isolated 0-10V/PWM/3-Timer-Modes Dimmable INV Digital Dimming, UART Based Communication Protocol Dim-to-Off with Standby Power ≤ 0.5 W Minimum Dimming Level with 5% or 10% Selectable Maximum Dimming Level with 9V or 10V Selectable Fade Time Adjustable Always-on Auxiliary Power: 12Vdc, 250mA Low inrush current Output Lumen Compensation End-of-Life Indicator Input Surge Protection: DM 6kV, CM 10kV All-Around Protection: IOVP,IUVP, OVP, SCP, OTP IP66 / IP67 and UL Dry / Damp / Wet Location TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location 5 Years Warranty Descriptions: The EUM-680SxxxMGS series is a 680W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture, etc. It provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.
Detailed Photos
