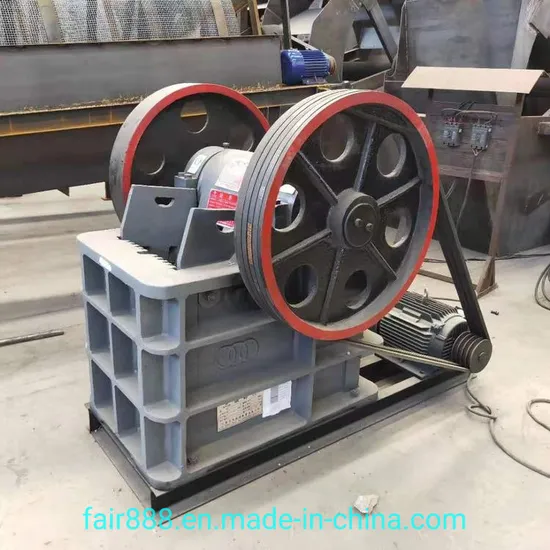

Mini Stone Crushing Mobile Jaw Crusher Machine for The Stone

Product Description

Product Description
jaw crusher manufacturers mainly use rough and moderate broken operations of various ore materials whose compressive strength is not more than 320 MPa. This crusher has features of a high broken ratio, uniform product size, simple structure, reliable operation, convenient maintenance, low operating costs, etc,

Detailed Photos

Product Parameters

Model FM-JC	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Discharging Opening Size(mm)	Capacity (t/h)	Power (kW)	Overall Dimension (mm)
PE150x250	150x250	125	10-40	1-5	5.5	875x758x850
PE200x300	200x300	180	15-50	2-10	7.5	910x750x990
PE250x400	250x400	210	25-60	5-20	15	1450x1315x1296
PE400x600	400x600	350	40-100	15-65	30	1565x1732x1586
PE500x750	500x750	425	50-100	40-130	45	2150x1900x1950
PE600x900	600x900	500	60-125	90-180	55	2500x2010x2350
PE750x1060	750x1060	630	60-150	110-380	110	2630x2310x3110
PE900x1200	900x1200	750	95-165	220-450	132	3720x2850x3250
PE1000x1200	1000x1200	850	200-300	280-560	160	3820x2850x3250
PEX150x750	150x750	120	10-40	5-16	15	1310x1118x1145
PEX250x750	250x750	210	15-50	15-30	22	1440x1751x1515
PEX350x750	350x750	300	15-50	18-40	30	1485x1680x1648
PEX250x1000	250x1000	210	15-60	15-52	30	1730x1950x1400
PEX250x1200	250x1200	210	15-60	20-60	37	1730x2150x1400
PEX300x1300	300x1300	250	25-60	30-105	55	2000x2320x1730

Application
Now Depending on the application requirements, Jaw Crushers can be used in stationary, wheeled portable, and track-mounted locations. The Jaw Crusher is well suited for a variety of applications, including rock quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, road and railway construction, metallurgy, water conservancy, and the chemical industry.
Working Principles
Jaw crusher Powered by a diesel or gas motor, the materials of the brakes are in a crushing chamber. The materials are pushed inside the chamber from the top opening and when crushed they are released through the bottom opening.


Our Advantages
1. High crushing ratio, even particle size, low noise.
2. Strong adaptability to materials, wide market.
3. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
4.Reliable quality can be guaranteed for many years without repair.
5. Good particle size, the crushing cavity and jaw plate tooth have been designed specially.
6. It is well suit for running in very poor working environment.

FAQ
Q:Deliver time ?
A:The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q:Payment terms ?
A:Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
