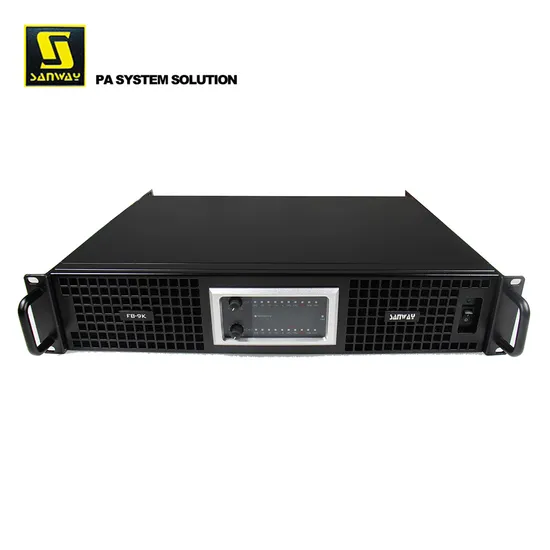

Fb-9k CE 2CH High Power Audio Stereo Amplifiers

Product Description

FB-9K CE 2CH High Power Audio Stereo Amplifiers
Descrption
We use large current rectifier bridge to ensure the unobstructed supply current. Using independent shielding way in the high-voltage power part, able to reduce the interference to audio signal to the lowest level, and ensure the higher safety for electricity.
We use high performance audion; make the system can bear larger current, with better dynamic and safety. Each audion has to be checked strictly, ensure the consistency of amplifier and minimum distortion.
We use the way of mainboard power-supply for the process the audio signal, able to make the voltage more stable, clear and thick, and sounds much better. Reasonable wiring can reduce the interference between channels and input-output.

Features
A. Very high power and channel density
B. Four-channel flexibility
C. Patented Class TD amplifier topology
D. Regulated Switch Mode Power Supply
E . Efficient cooling system
F. Adjustable parameters
G. Comprehensive protection and warning
H. XLR input connectors
I. Heavy-duty binding post or Speakon output connectors

Applications
1. Churches, Museums, Sports venues, Conference centres,
2. Theatres, Auditoria, Shopping malls, Transport terminals,
3. Concert halls, Bars, Restaurants, Lecture theatres
Amplifier PA System ( FB-9K)
1>. 2X1600@8ohms PRO amplifier
2>. Stable switching power amplifier
3>. Gross weight 18kg audio power amplifier
Specifications:

FB-9K CE 2CH High Power Audio Stereo Amplifiers
ITEM	FB-9K
Output Power	20-20kHz, 1W with 1 khz
8ΩStereo Power(RMS)	1600WX2
4ΩStereo Power(RMS)	3000WX2
2ΩStereo Power(RMS)	4500WX2
8ΩBridged Power(RMS)	6000W
4ΩBridged Power(RMS)	9000W
Frequency Response(+o/-0.3dB, 1W/8Ω)	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W	<0.1%
Signal-to-Noise Ratio	>112 Dba
Channel separation (Crosstalk) at 1 kHz	>70 dB
Input Connectors (per channel)	3-pin XLR, electronically balanced
Output Connectors (per channel)	Binding Posts 2-pole
Class	TD
TourClass Protection	short cricuit, DC voltage, urn-on/off transient, current, inrush
Operating voltage	130-265 V / 65-135 V selectable
Voltage Gain(dB)	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance	20 Kohms
Level adjustment (per ch.)	Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W×H×D)	483×88×396mm
Packing dimension	575×140×550mm
Net weight(kg)	12
Gross weight(kg)	18
