Economical Shredding Machine for Recycling Used Plastic Pallet with Easy Maintenance

Product Description

Economical Shredding Machine For Recycling Used Plastic Pallet With Easy Maintenance
Shredding Machine brief introduction:
The DGS Compact Single Shaft Shredder has a 251mm diameter profiled rotor made of solid steel, operating at a speed of 11.6-12.9rpm. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate, low power consumption and maximum output of shredded material.
The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input meterial.
Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings.This ensures a long service life and minimum services and maintenance.
Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end of the rotor.
A safety switch prevents machines startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

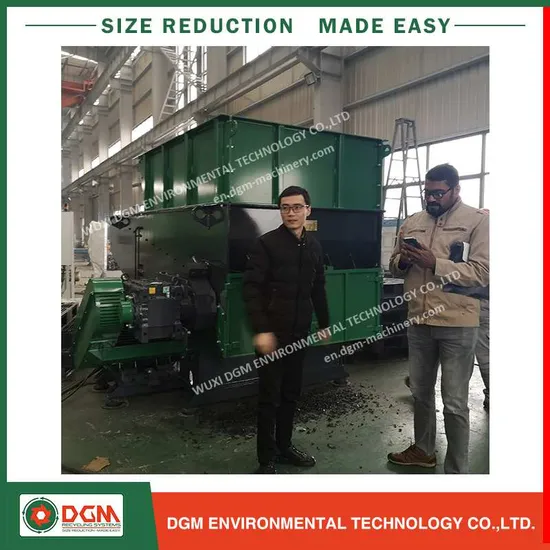

Pictures of Shredding Machine :
Specification of Shredding Machine :

Item		Unit	DGA550	DGA850
Feeding Size		mm	580*90	880*900
Rotor Diameter		mm	251	251
Rotor Speed		rpm	90	90
Main Motor Power		kw	18.5-22	30
Rotor Knives		pcs	13 or 26	20 or 40
Stator Knives		pcs	2	2
Screen Size		mm	15-100	40-100
Machine Dimensions		mm	1890*1348*1723	1894*1648*1723
Dimensions	A	mm	1894	1894
	B	mm	1348	1648
	C	mm	580	880
	D	mm	1723	1723
	E	mm	1020	1020
	F	mm	620	620

Layout for Shredding Machine :

Key features of shredding machine	Alternertive options
- Flat rotor - Machined pocket knife holders - Optional hard facing - Concave ground square knives - Robust ram construction - Heavy duty guide bearings - Universal couplings - Low speed, high torque geared drive - Powerful hydraulic swing type ram - Bolt in drive shafts - Multiple rotor designs - Two speed hyraulic system - Oil cooling on ram and gearbox - Ram comb plate - Amp meter control	- Hydraulic screen cradle - Gearbox with shrink disc - Rotor cooling - Pipe spacer - Touch screen PLC - Hopper mounted viewing mirror - Increased motor drive - Hydaulic drive - Bespoke colour scheme - Turbo hydraulics - Housing wear plate - Sound aborbing hopper

Cetificates
Packing and Shipping
1. Several layers of plastic wrapping film and cardboard to protect shredding machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the single shaft shredder to be safely shipped to customers appointed location.
5. If you have any other request for the packaging or loading, we will do our best to meet your demands.
Company Introduction
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling. Utilizing core German design and technology, we have expanded our scope of application to include plastics,timber,rubber,biomass and many other industries where size reduction and materials processing are critical. Our dedication to product development and attention to individual customer needs means we are well equipped to offerr successful business solutions and tailor-made processing plants to our customers.
FAQ
Q1: Are you a trading company or a factory ?
DGM is a factory with 10 years experience in tire and plastic machinery manufacturing, and 20 years experience in technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction, washing line and tire recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: What is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
DGM---Qualified supplier to offer you high quality shredding machine.
