2025 New Products High-Voltage Copper Core Electricity Oil-Immersed Transformer

Product Description

Product Description

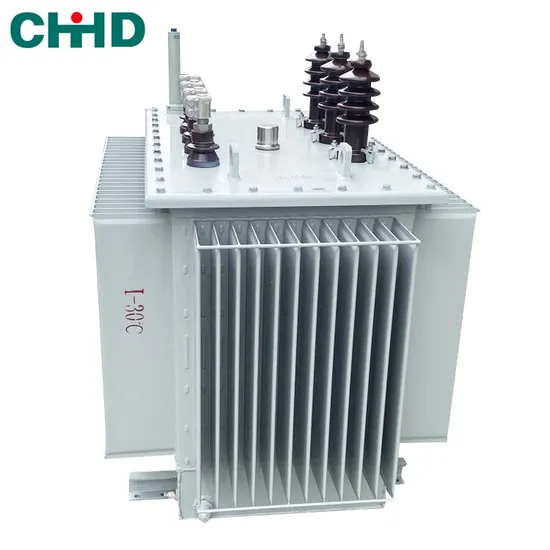

Introducing our groundbreaking, high-efficiency oil-immersed transformer, a pinnacle of innovation in energy conservation and environmental sustainability. Expertly crafted, this leading-edge transformer utilizes oil as an insulating and cooling medium, delivering exceptional power conversion and outstanding heat dissipation. Perfectly suited for robust power transmission and distribution systems, it is ingeniously designed to drastically reduce energy consumption, significantly enhance grid efficiency, and substantially lower its environmental footprint. Key Features 1. Energy Efficient: With an optimized design, our transformer significantly reduces core and coil losses, thereby greatly enhancing energy conversion efficiency and dramatically lowering operational energy consumption, establishing it as an essential pillar in cost-effective power solutions. 2. Low Loss: Constructed from premium-grade silicon steel sheets and employing cutting-edge manufacturing processes, it effectively minimizes no-load and load losses. This breakthrough results in a marked reduction in the total operating costs of the power system, ensuring unparalleled economic efficiency. 3. Excellent Heat Dissipation: Leveraging oil as a cooling agent, it efficiently dissipates heat through natural convection or forced oil circulation, guaranteeing stable and reliable operation even under heavy load conditions, thereby extending the equipment's lifespan. 4. Environmentally Friendly Design: Fully compliant with both national and international energy-saving and environmental protection standards, it effectively contributes to reducing carbon emissions and environmental pollution, making it the ideal choice for green energy projects and modern eco-friendly power grids, promoting a sustainable and environmentally responsible future. 5. Safe and Reliable: Built with durable insulation materials and precision craftsmanship, the transformer ensures safe and stable operation even in the toughest grid environments, providing peace of mind and unwavering reliability. Product Parameters

Product Model	Rated Capacity(kVA)	Connection Group	No-Load Loss	Load loss(W)(120°)
S11-M-50/35	50	Yyn0 Dyn11	160	1200/1140
S11-M-100/35	100		230	2010/1910
S11-M-125/35	125		270	2370/2260
S11-M-160/35	160		280	2820/2680
S11-M-200/35	200		340	3320/3160
S11-M-250/35	250		400	3950/3760
S11-M-315/35	315		480	4750/4530
S11-M-400/35	400		580	5740/5470
S11-M-500/35	500		680	6910/6580
S11-M-630/35	630		830	7860
S11-M-800/35	800		980	9400
S11-M-1000/35	1000		1150	11500
S11-M-1250/35	1250		1400	13900
S11-M-1600/35	1600		1690	16600
S11-M-2000/35	2000		1990	19700
S11-M-2500/35	2500		2360	23200

Product Advantages: Our oil-immersed transformer stands out with its remarkable performance and exceptional features.
We offer tailored customization services to perfectly meet your specific requirements and preferences.
Experience unmatched insulation combined with excellent heat dissipation performance, ensuring optimal reliability.
Enjoy impressively low no-load losses, decreased noise levels, and an extended service life, ensuring enduring performance. Certifications
Company Profile
FAQ 1. What about the lead time?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
2. Can you do OEM?
Yes, we are 61 years factory,we can provide OEM (Original Equipment Manufacturer) services. We can customize the transformers according to your specifications, including branding, design, and packaging to meet your specific needs. Let us know your requirements, and we'll work with you to deliver a product that aligns with your request. 3. What is your payment terms?
T/T, L/C,Visa Paypal for different circumstances. 4. Do you have inspection procedure before shipping?
Yes,we do 100% QC inspection. 5. Do you offer guarantee for the products?
Yes. We offer at least two years warranty for all of our transformer.
