New Ground Soil Plate Bearing Capacity Test Apparatus factory price

Product Description

Product Description

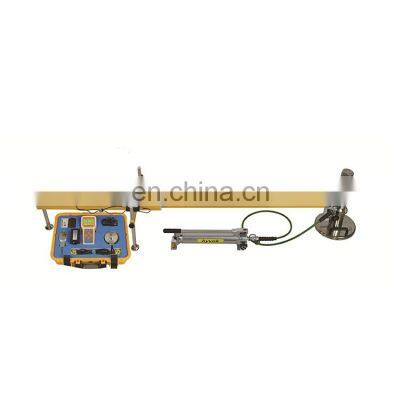

New Ground Soil Plate Bearing Capacity Test Apparatus factory price
Usage Overview
Ev2 Plate bearing test set is used to measure the settlement5 value of Subgrade under static load, so as to evaluate the bearing
capacity and deformation of subgrade. It is suitable for monitoring and monitoring the construction quality of railway, highway,
airport, urban traffic, port, wharf and industrial and civil building subjected to static load.
After the first loading and unloading of the ground by the circular bearing plate and loading device, the second loading is
carrier out. The values of deformation modulus Ev2 and Ev2/Ev1 are calculated by the measured stress-under the bearing plate and
the corresponding central settlement value S of the bearing plate.
Product Description
· Integral design, compact size
· Easy to carry and make work efficient
· Measurement data can be calibrated manually
Specification

Model	EV2
Usage	Deformation Testing Machine
Rate of work	Electronic
Application	Effective depth	Normal condition 500mm
		Working ambient	Working ambient -10℃~40℃ Humidity <90%HR
Electeic sedimentation meter	Size	Screen size:3inch Overall size:100×205×40mm Net weight:0.8kg
		Storage amount	400 groups testing curve
		Powder supply	Lithium battery, 18hrs continuous work time
		Display method	Chinese/English
Printer	Connection method	Wireless Bluetooth printer
Transducer	Pressure transducer	100kN
		Displacement, transducer	25mm, 0.01mm
Measure device	Bearing plate	Diameter:300mm Thickness:25mm Weight:17.5kg
		Loading device	Hydraulic pump:100kN high pressure tube:2m Oil cylinder extensible rod:1*90mm,1*120mm, 1*160mm,1*160mm,2*60mm
		Sedimentation measure device	Three point frame, flexible and rotary lever arm, adjustable base Dimension:2320*570*420mm Weight:12.5kg

Unpacking display
Our Advantages
1.Imported cylinders and manual pumps are adopted, with outstanding performance of pressure control and voltage stabilization.
2.The displacement acquisition device adopts heavy profile and three-point support design, which has strong seismic and windproof
capability and ensures accurate data.
3.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with
backlight, has better visibility in various environments;
4.Automatically calculate Ev1, Ev2 and Ev2/Ev1 values and display curves.
5.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the
test results.
6.USB transmission interface, easy to connect with the computer.
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
our customer
Company Profile
` Cangzhou Lovely Group Co.,Ltd. is a professional manufacturer specializing in Testing Equipment,Universal Testing Machine ,Asphalt Tester,Test Moldsand Soil Road Lab Tester,supply verious type of products ..... We assure high quality to you.
· All our products are made in China .Excellent quality with competitive price
Packing & Delivery
· Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express company
FAQ
Q1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material.
Besides, we could also purchase products as request.
Q2: Where is the loading port?
A: Tianjin port or Qingdao Port.
Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,then
to select for you.
Q4: What certificates do you have?
A: We have ISO 9001, CE, SGS.
Q5: Do you have an OEM service?
A: Yes. We can provide OEM services according to your requirements.
Q6: What are the payment terms?
A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.
