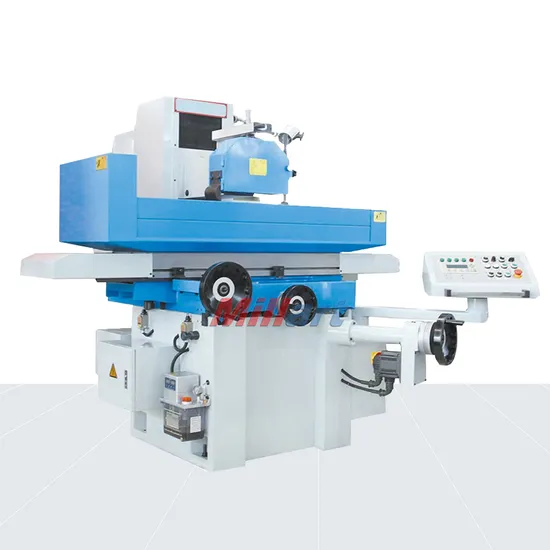

Sga Series Hydraulic Saddle Surface Grinding Machine with PLC Control Sga3063ah/Sga3063ahr/Sga3063ahd, Auto Feeding Precision Hydraulic Surface Grinder

Sga Series Hydraulic Saddle Surface Grinding Machine with PLC Control Sga3063ah/Sga3063ahr/Sga3063ahd, Auto Feeding Precision Hydraulic Surface Grinder

US$10,700.00
1-2 Pieces
US$10,000.00
3+ Pieces

Basic Info.

Model NO.
Sga3063ah/Sga3063ahr/Sga3063ahd
Type
Tool Grinding Machine
Certification
GS, CE
Condition
New
Table Size(W X L)
305X635
Max Longitudinal Travel
765
Max Cross Travel
340
Spindle Motor
4
Gross Weight
2900
Package Dimensions(L x W x H)
2350X2220X2150
Transport Package
Plywood Case
Trademark
Millart
Origin
Shandong, China
Production Capacity
1000units/Month

Product Description

Product description:
Technical parameter :
Feature :
Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results Grinding spindle runs in maintenance-free preloaded precision angular ball bearings
Automatic transverse and longitudinal feed
Rapid feed for setup to desired work height(HFS VC)
Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC)
Double table V-guide in transverse table, V-guide and flat guides in longitudinal table
Table guide ways are hardened, ground, and PTFE counter laminated-ensuring maximum wear resistance
High table load capacity for heavy parts
External hydraulic unit ensures high temperature stability
Automatic central lubrication
AH:Wheel head Manual up and down
AHR:Wheel head Motorized up and down
AHR:Wheel head servo motor up and down
Specification:
MODEL Unit SGA3063AH/AHR/AHD
Table size(W x L) mm 305x635
Max longitudinal travel mm 765
Max cross travel mm 340
Max distance from spindle center to table mm 580
Electro magnetic chuck size mm 300x600
Speed of table longitudinal movement m/min 5-25
Table transverse movement Auto feed mm/min 0.1-8
Rapid speed mm/min 990
Feed of handwheel Mm/div 0.02
Wheelhead vertical movement Auto feed mm 0.005-0.05(AHD)
Rapid speed Mm/min 650(AHR) 480(AHD)
Feed of handwheel Mm/div 0.005
Grinding wheel speed rpm 1450(50Hz) 1750(60Hz)
size mm 350x40x127
Spindle motor kw 4
Max loading capacity of table KG 270
Gross weight kg 2900
Package dimensions(L x W x H) mm 2350x2220x2150

Standard accessories :
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tools box and tools
Wheel dresser stand
Standard electro magnetic chuck
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD models
Optional accessories :
Dust collect
Balance stand
Wheel flange
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
