Heavy-Duty Vertical Big Size CNC Milling Machine for Steel and Alloy Processing

Product Description

High Precision 3/4/5 Axis CNC Milling Machine for Hard Metals and Alloys
Product Description
Introducing the TZ-V1165 Line Rail Vertical Machining Center, a true masterpiece in the realm of modern CNC engineering. This state-of-the-art marvel embodies the quintessence of ergonomic design, precision manufacturing, and advanced automation technology, ensuring excellence in every cut and carve. Every unit undergoes exhaustive engineering simulations and meticulous prototype testing, thus guaranteeing its adaptability and dependability across demanding sectors such as medical, UAV, new energy auto parts, precision fixtures, and sophisticated automation equipment components. Embrace the seamless transition to efficient mass production of high-precision parts, renowned for their exceptional reliability and unparalleled operational efficiency.
Product Parameters

Model		TZ-V640	TZ-V850	TZ-V855	TZ-V1165	TZ-V1270
Worktable size L*W	(mm)	700x420	1000x500	1000x550	1100x530	1200x600
Work table Max. loading	kg	350	400	500	500	600
T-slots size (N×W×D)	mm	3x18x125	5x18x90	5x18x90	5x18x90	5x18x100
X/Y/Z axis travel	mm	600/400/450	800/500/500	800/500/550	1100/650/600	1200/700/700
X/Y/Z axis feed speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw	2/2/3 kw	2/2/3 kw	2/2/3 kw	3/3/3 kw
X/Y/Z axis roller Guide	mm	30/30/35	35/35/35	35/45/45	35/45/45	45/45/45
Spindle taper		BT40	BT40	BT40	BT40	BT40
Max. spindle speed	rpm	12000	12000	12000	12000	12000
Spindle motor power	kw	7.5	7.5/11	7.5/11	7.5/11	11
Distance from spindle nose to workbench	mm	150-610	120-620	120-670	150-750	140-840
A.T.C capacity	pcs	24	24	24	24	24
Positioning accuracy (X/Y/Z)	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Machine weight	kg	4300	5000	6000	6800	8100
Machine size (L*W*H)	mm	2000*2400*2600	2500*2250*2650	2600*2500*2650	2700*2500*2750	3100*2760*3100

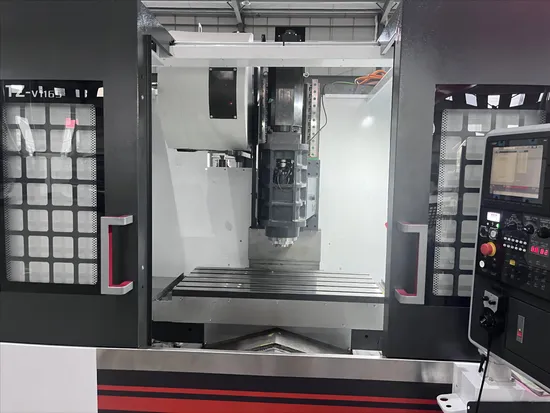

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
Immerse yourself in processing conditions and a production environment crafted with precision, delivering superior performance at each stage of operation.
Our state-of-the-art facility is outfitted with imported horizontal and vertical machining centers, precision CNC boring machines with rotating tables, and advanced gantry guideway grinding machines. This sophisticated setup guarantees impeccable accuracy for every workpiece, significantly enhancing precision in assembly and extending the durability of the final product.
Advanced Detection Methods
With meticulous positioning accuracy tests, integrated with laser technology corrections, we strictly adhere to the rigorous German VDI3411 inspection standards. These rigorous checks are performed five times to ensure unprecedented precision and quality.
Before any machine tool departs from our factory, it undergoes stringent processing side tests to verify that it meets the rigorous demands of real-world processing, achieving the precise accuracy required.
Product sample
• Our CNC machine center stands as an innovation powerhouse, effortlessly integrating milling, drilling, and tapping functionalities to deliver unmatched versatility across applications.
• Master the art of machining with our CNC machine, a perfect choice for processing a diverse array of metal profiles including aluminum, steel, and copper, as well as a variety of non-metal materials, catering to all your industrial needs.
• CNC Vertical Machine tools have become indispensable in a myriad of industries, including 3C electronics, rail transportation, aerospace, and liner module guide rail industries,and beyond, skillfully meeting the evolving demands and complexities of modern engineering.
Packaging & Shipping
•Highly Protective
•Structural Stability
•Environmentally Friendly and Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T, with 40% initial payment upon order and 60% balance payment before shipment.
2. What trade terms do you offer?
A: We offer FOB, CFR, and CIF terms.
3. What is the delivery time?
A: For standard machines, the delivery time is within 30 days. Special machines may require additional time. You can place your order based on the provided delivery and shipping times.
4. What is your minimum order quantity and warranty?
A: The minimum order quantity is one set, with a one-year warranty.
5. How are the machines packaged?
A: Machines are standardly packed in wooden cases.
6. How can I choose the most suitable machines?
A: Please provide your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us product drawings, and we will help you choose the most suitable machines.
