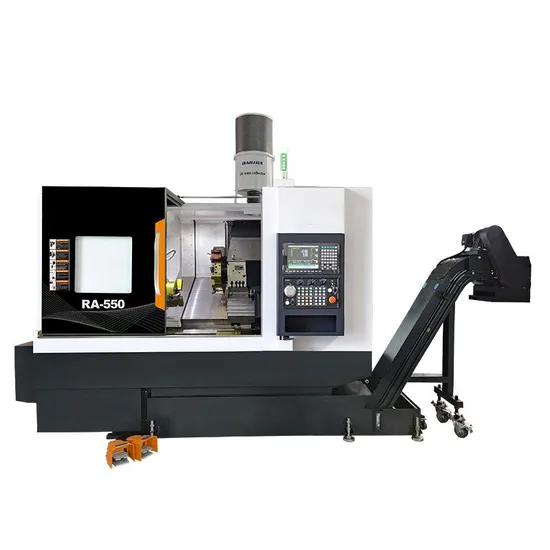

Vertical Industrial Big Size CNC Milling Slant Lathe Machining Tool Machine

Product Description

Vertical Industrial Big Size CNC Milling Slant Lathe Machining Tool Machine
Product Description

Processing Capability			Unit	RA-550
Processing Capability	Maximum bed swivel diameter		mm	Φ580
	Maximum machining diameter		mm	Φ450
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	540
	Maximum bar through-hole diameter		mm	Φ52
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-6
	Spindle through-hole diameter		mm	Φ65
	Maximum spindle speed		rpm	4000
	Hydraulic cylinders/chucks		Inch	8''
Axis feed	Axis travel	X-Axis	mm	270
		Z-Axis	mm	600
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	100-12T
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	460
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ80
	Tailstock sleeve travel		mm	80

Our CNC turret lathe stands as a pinnacle of versatility and precision, essential across various manufacturing domains. It is ideal for crafting automotive components, intricate mechanical parts, moulds, shafts, wheels, and an array of metal parts. Perfectly suited for mass production, it ensures high precision in processing complex shapes with diverse materials, thereby significantly enhancing your enterprise's competitiveness and productivity.
• High-precision machining: Designed to adhere to the highest precision standards in machining, our cutting-edge machine tool achieves exceptional accuracy for ultra-fine cutting tasks. It guarantees flawless internal and external precision, impeccable roundness, and superior coaxiality.
• Multiple processes: This multifunctional machine seamlessly manages a wide range of complex and varied processing tasks. From radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing, it delivers a comprehensive suite of multi-process capabilities in one robust and efficient solution.
• Clamping and positioning the workpiece:
The gripper's primary role is to securely fasten the workpiece, ensuring it remains steadfast and immovable throughout the machining process.
By maintaining meticulous positioning, the gripper ensures the workpiece's precise alignment with the cutting tool, delivering unparalleled machining accuracy.
• Solve special clamping problems:
For machining holes, shafts, slots, and threads in parts that are neither bushings nor wheels, our specialized fixtures offer precise and effective solutions.
These custom-designed fixtures are meticulously crafted to meet specific machining needs, effectively overcoming clamping challenges that ordinary fixtures cannot handle.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Experience unparalleled processing conditions in a state-of-the-art production environment, designed to deliver exceptional quality and efficiency.
Our state-of-the-art imported equipment, including horizontal and vertical machining centers, CNC boring machines with rotating tables, and gantry guideway grinding machines, ensures exceptional workpiece precision. This significantly boosts assembly accuracy and extends the longevity of our products' performance.
• State-of-the-Art Detection Methods
Positioning accuracy is rigorously tested and precisely calibrated using advanced laser technology, adhering strictly to the elite German VDI3411 inspection standards, with 5 comprehensive tests per standard.
Each machine tool undergoes thorough processing tests before it leaves our factory, ensuring it not only meets but consistently exceeds the highest actual processing accuracy standards.
Product sample
• Experience unrivaled efficiency with the Vertical CNC Drilling Machine Center by Dongguan Luotuo Industrial Co., Ltd. This state-of-the-art machine masterfully integrates advanced milling, drilling, and tapping functions for seamless operation.
• Achieve the pinnacle of precision with our expertly engineered Vertical CNC Milling Lathe Machine. Designed to flawlessly handle an extensive variety of materials-from robust aluminum, steel, and copper to delicate non-metal profiles-this machine is your go-to solution for precision craftsmanship.
• Enhance your production prowess across a spectrum of industries with our versatile CNC machining solutions. From 3C electronics and rail transportation to aerospace and linear module guide rails, the Vertical CNC Milling Lathe Machine by Dongguan Luotuo Industrial Co., Ltd. is engineered to meet your diverse manufacturing needs with exceptional efficiency and precision.
Packaging & Shipping
•Highly Protective: Our state-of-the-art packaging solutions ensure that the Vertical CNC Drilling Machine Center from Dongguan Luotuo Industrial Co., Ltd remains safe and secure throughout transit. This robust protection shields against all forms of potential damage, guaranteeing peace of mind.
•Structural Stability: Expertly designed, our packaging maintains the machine's structural integrity, ensuring that each component arrives in pristine condition. This readiness for immediate use reflects our commitment to quality and precision.
•Environmentally Friendly and Recyclable: At Dongguan Luotuo Industrial Co., Ltd, we are dedicated to sustainability. Our durable packaging materials are eco-friendly and fully recyclable, significantly minimizing environmental impact while ensuring maximum protection.
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments with a 40% initial deposit required upon ordering and the remaining 60% balance due before shipment.
2. What are your trade terms?
A: Our trade terms include FOB, CFR, and CIF, offering you the flexibility to choose what suits you best.
3. When is the delivery time?
A: For our standard Vertical CNC Drilling Machine Center, we can have your order ready within 30 days. Custom or special machines might require additional time. Please place your order according to our provided delivery schedule.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity is one set, and we proudly offer a comprehensive one-year warranty.
5. How are the machines packaged?
A: Each machine is meticulously packed in a sturdy wooden case to ensure it reaches you in perfect condition.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model for your needs. You also have the option to select the exact model yourself.
Alternatively, you can send us your product drawings, and we will identify the ideal machine configuration for you.
