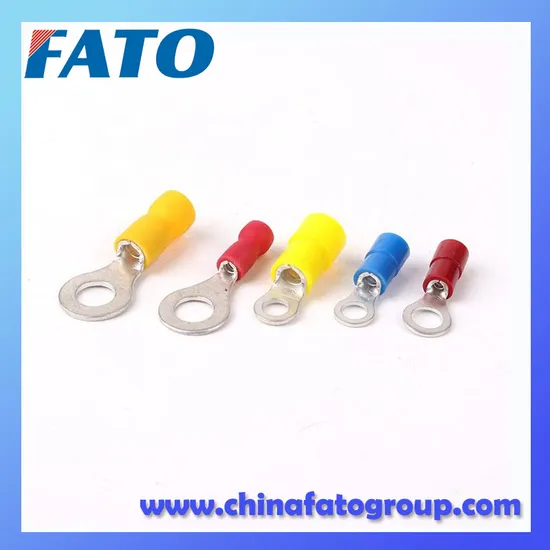

Highly Quality Popular Packing Type Insulated Ring Terminal
| US$0.01-0.15 | 500 Bags (MOQ) |
Basic Info.
Model NO.
RV
Application
Conduct Electricity, Transmission of Electrical Signals
Character
Insulation
Species
Terminal
Production Process
Injection Molding
Interface Type
DC/DC
Current
9-48A
Color
Black Blue Yellow Red
Transport Package
Export Packing
Specification
CE / ISO9001
Trademark
FATO or OEM
Origin
China
HS Code
8538900000
Production Capacity
5000000PCS/DAY
Product Description
Product Description:0.5-1.5mm2(22-16) Max current: =9A
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV1.25-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10.0 | 4.3 | Red |
| RV1.25-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-3.5 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| RV1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| RV1.25-6 | 1/4 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-8 | 5/16 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| RV1.25-10 | 3/8 | 6.5mm | 12.0 | 21.2 | 11.0 |
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | Blue |
| RV2-3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 | |||
| RV2-3.5 | #6 | 3.7mm | 6.6 | 21.0 | 7.0 | |||
| RV2-3.5 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-4 | #8 | 4.3mm | 6.6 | 21.0 | 7.0 | |||
| RV2-4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 | |||
| RV2-5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 | |||
| RV2-6 | 1/4 | 6.5mm | 12.0 | 27.6 | 11.0 | |||
| RV2-8 | 5/16 | 8.4mm | 12.0 | 27.6 | 11.0 | |||
| RV2-8 | 3/8 | 10.5mm | 13.6 | 30.2 | 13.9 |
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV3.5-4 | #8 | 4.3mm | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 | Black |
| RV3.5-5 | #10 | 5.3mm | 8.0 | 24.6 | 7.7 | |||
| RVL3.5-5 | #10 | 5.3mm | 12.0 | 27.9 | 7.7 | |||
| RV3.5-6 | 1/4 | 6.5mm | 12.0 | 27.9 | 7.7 |
| Type | Number of ANSI bolt | Diameter of bolt mouth d2 | B(mm) | L(mm) | F(mm) | H(mm) | D(mm) | Color |
| RV5.5-3.5 | #6 | 3.7mm | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | Yellow |
| RV5.5-4 | #8 | 4.3mm | 7.2 | 21.5 | 5.9 | |||
| RV5.5-4 | #8 | 4.3mm | 9.5 | 25.5 | 8.3 | |||
| RV5.5-5 | #10 | 5.3mm | 9.5 | 25.5 | 8.3 | |||
| RV5.5-6 | 1/4 | 6.5mm | 12.0 | 31.5 | 13.0 | |||
| RV5.5-8 | 5/16 | 8.4mm | 15.0 | 33.7 | 13.0 | |||
| RV5.5-10 | 3/8 | 10.5mm | 15.0 | 33.7 | 13.7 | |||
| RV5.5-12 | 1/2 | 13.0mm | 19.2 | 38.1 | 16.0 |
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer a free sample depending on product types.
Q:Can you print our own logo?
A:Yes, we provide OEM/ODM services.
Q:How long is the quality guarantee?
A:18 months warranty,every products is inspected before they leave the factory.
Q: Do you have a catalog? Can you send me the catalog to see all your products?
A: Yes, we have e-catalog. Please contact us online or send us an e-mail to get it.
Q:How's the delivery?Because I really need them is urgently?
A: 5-10 days for inventory products and 7-20 days for customized products.
Q: What's your main product?
A: Our main products include circuit breakers and transformers. We also have other low voltage apparatus as our minor products.
Q: What is your payment terms?
A: We accept T/T, Western Union, PayPal, Money Gram, L/C at sight.
Q: Any certification of your company or product?
A:We have ISO 9001,CE,CB, SEMKO, SAA, TUV, CCC.
