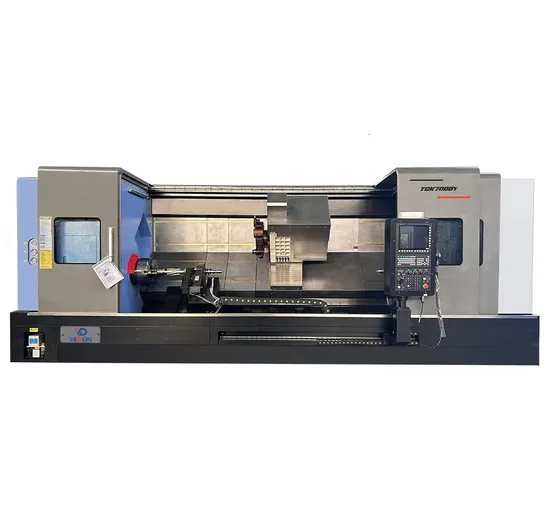

Tck700dy Slant Bed CNC Lathe Fanuc Control 12 Station CNC Tool Holder Inclined Bed CNC Lathe

Product Description

Overview
Main structural features of the machine tool: 1. The 45 ° inclined bed and the base are integrally cast and formed, and the high-strength cast iron is cast. Through finite
element analysis, the stiffeners, high-strength cast iron materials, resin sand molding, and full secondary aging and natural
aging are optimized to make the basic parts of the machine tool highly rigid and ensure the stability of the machine tool for long-term use; With automatic forced lubrication, the friction resistance of feeding movement is greatly reduced, and the accuracy and service life of the machine tool are improved.
2. Both X and Z axes adopt high precision, high load capacity and high reliability linear rolling guide rails. The Z axis adopts a 6-slider designto greatly increase the rigidity, cooperate with automatic forced lubrication, reduce the friction resistance of the feeding movement, and improve the accuracy and life of the machine tool; The feed speed and positioning accuracy of the machine tool are higher.
3. The main shaft adopts the combination of the first three and the second two of the large diameter precision angular contact ball bearings, or the combination of the large diameter precision angular contact thrust ball bearings and double row cylindrical roller bearings. The transmission ratio of the main shaft servo motor is 1:3 to drive the main shaft, which has excellent stiffness and large torque at low speeds.
4. The X - and Z-axis ball screws adopt the structure of pre tensioned inner circulating nuts. The ball bearing for the lead
screw with a contact angle of 60 ° is selected as the lead screw support bearing, which can withstand higher axial loads and ensure the rigidity and accuracy of the feed transmission device.
Machine Details
Guide rails Turret form
Adopting Taiwan HlWlN guide rails 12 station power turret with Y axis
Tailstock Chuck
MT6 Hydraulic automatic tailstock 15 inch hydraulic chuck

Distance center Optional
1100/1600/2100/3100mm 18inch Renishaw HAMA Tool Set
Internal protection Electrical cabinet
Patch workpiece(receiver) Servo programmable tailstock
Internal protection Electrical cabinet
All use metal internal protection The wiring of the electrical cabinet is neat
Optional GSK 988TA system
Hydraulic center frame/Servo center frame OptionaI FANUC/SIEMENS/KND/Mitsubishi Specifications

Basic parameter configuration
Processing range
Max. swing over bed	mm	Φ780
Max.swing over slide	mm	Φ500
Max.turning diameter	mm	Φ650
Center distance	mm	1100/1600/2100/3100
Spindle
Spindle head type	/	A2-8/A2-11
Spindle through-hole diameter	mm	Φ88/Φ105/Φ132
Bar capacity	mm	Φ74/Φ91/Φ115
Max.spindle speed	rpm/min	3000/2500/1800
Rated output of the main motor	kw	22
Max.spindle output torque	NM	573
Spindle transmission form	/	Timing belt
Chuck
Hydraulic chuck	inch	12/15/18/21
Tailstock
Tailstock sleeve	/	MT6 internal rotation
Tailstock movement form	/	Hydraulically programmable tailstock
Lathe bed
Tilt angle	DEG	45°
X-axis travel	mm	350+20
Z-axis travel	mm	1100/1600/2100/3100
X/Z fast moving speed	m/min	16/24
Turret
Servo hydraulic	/	BMT65
Adjacent tool change times	s	0.5
Number of station	/	12
Tool size(turning/boring)	mm	32x32/Φ40(50)
Spring chuck	/	ER40
Driven power	kw	5.5-7.5
Y-axis travel	mm	±75
Out size
1.0m	7500kg	4500*2300*2550mm
1.5m	9500kg	6000*2300*2550mm
2.0m	10500kg	6500*2300*2550mm
3.0m	13300kg	7500*2300*2550mm
