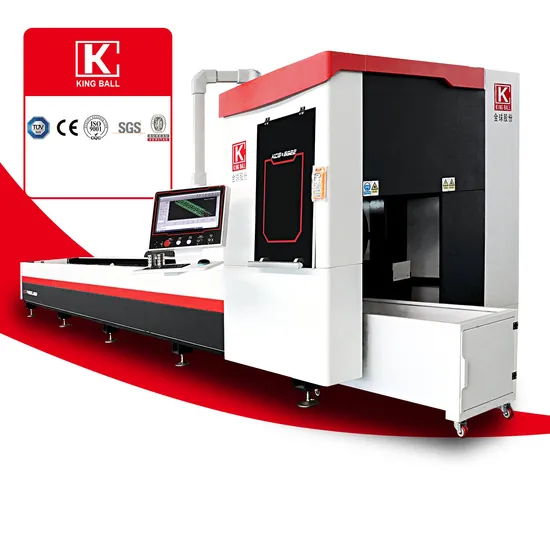

1500W Small Fiber CNC Laser Cutting Machine Metal Pipe Cutter
| US$5,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JQHG-LT-6020D
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Solid Laser
Laser Technology
Laser Flame Cutting
Jiangsu
Nanjing
Transport Package
Plastic
Specification
JQHG-LT-6020D
Trademark
KINGBALL
Origin
China
HS Code
8456110090
Production Capacity
100 P/M
Packaging & Delivery
Package Size
400.00cm * 300.00cm * 250.00cm
Package Gross Weight
10.000kg
Product Description
1500w small fiber CNC Laser Cutting Machine metal pipe cutter1,Specifications:
| NO. | ITEM | LT-6020D | |
| 1 | CONTROL | CYPCUT | |
| 2 | LASER RESONATOR | IPG 1500W | |
| 3 | LASER HEAD | RAYTOOLS | |
| 4 | WATER CHILLER | HANLI | |
| 5 | SERVO MOTOR | Yaskawa | |
| 6 | CHUCK | TYPE | MECHANICAL SELF-CENTERING CHUCK AND PNEUMATIC CHUCK |
| DIAMETER(mm) | φ20-φ220 | ||
| MIN. WASTE LENGTH(mm) | 190 | ||
| RATED RESOLUTION(r/min) | 40 | ||
| MAX. RESOLUTION(r/min) | 80 | ||
| WEIGHT BEARABLE(TOGETHER) | 150Kg | ||
| 7 | X | TRAVEL | 6800mm |
| TRAVELLING RATED SPEED (m/min) | 43 | ||
| TRAVELLING MAX. SPEED (m/min) | 86 | ||
| 8 | Y | TRAVEL (mm) | 400 |
| TRAVELLING RATED SPEED (m/min) | 40 | ||
| TRAVELLING MAX. SPEED (m/min) | 60 | ||
| 9 | Z | TRAVEL (mm) | 180 |
| TRAVELLING RATED SPEED (m/min) | 30 | ||
| TRAVELLING MAX. SPEED (m/min) | 60 | ||
| 10 | RAIL(TAIWAN BRAND) | 25,20 | |
| 11 | TRANSMISSION | X: 2 MOL 6 LEVEL OF GRINDING Y: BALL SCREW Z: BALL SCREW | |
| 12 | REDUCER | CHINESE BRAND | |
| 13 | POSITIONNING ACCURACY | ±0.05/1000mm | |
| 14 | REPEAT POSITIONNING ACCURACY | ±0.05 | |
| 15 | ELECTRICAL PART | CHINT | |
| 16 | PNEUMATICAL PART | SMC,Air TAC | |
| 17 | EXTRACTION SYSTEM | KINGBALL | |
| 18 | SUPPORT | PNEUMATIC | |
| 19 | DUST EXTRACTION | OPTION | |
| 20 | BED | WELDED STEEL TUBE STRUCTURE | |
2,CE certification
3,Customers
4,Factory
