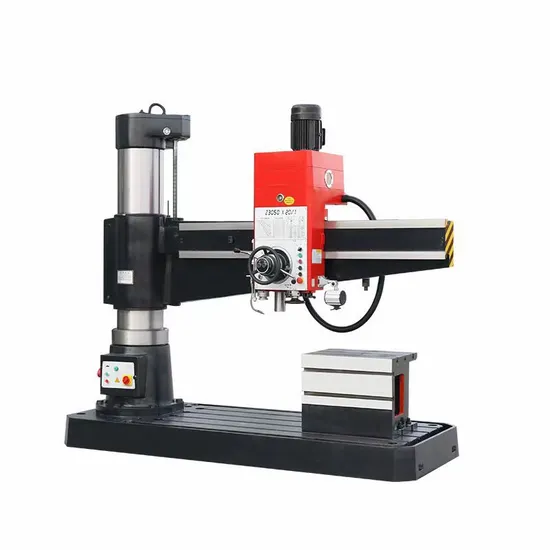

High Precision Mt4 Spindle Taper Radial Drilling Machine Tool

Product Description

Product Description
Models: Z3040X13, Z3040×16, Z3050, Z3063, Z3080 Radial Drilling Machines FEATURES:
1. Experience unparalleled efficiency with our hydraulic gear-change structure, designed to significantly reduce subsidiary time and optimize performance.
2. Enjoy seamless operation with the convenience of a single handle controlling spindle forward rotation, stop (brake), shift, and neutral-gear, ensuring a user-friendly experience.
3. Rely on the durability of our hydraulic-driven rhombic block mechanism for the headstock, radial arm, and internal and external column clamp structures, delivering dependable performance every time.
4. Benefit from robust safety measures and protective installations, including a fortified external column, enhancing operational security and machine longevity.
5. Our meticulous design and manufacturing processes incorporate efficient measures to guarantee the machine's precision and extend its operational lifespan, ensuring long-lasting accuracy.
6. The machine's electric equipment is engineered to prioritize human safety, offering reliability, durability, and ease of maintenance, making it a trustworthy industrial partner.
With its substantial weight and rigid construction, this drill provides unmatched stability and vibration-free operation, ensuring precision in every task.The versatile cube table facilitates effortless adjustment and secure workpiece placement, streamlining your workflow for maximum productivity.Experience the convenience of motorized height adjustment for the arm, allowing for precise positioning with minimal effort.A strategically placed control panel on the drill's front enhances performance and ergonomics, putting control at your fingertips.The column's polished surface ensures smooth, unrestricted, and precise arm travel, contributing to the machine's overall efficiency.The drill is equipped with manual blocking features for the head and arm of the column, providing additional control and security.A wide speed range allows for precise and rapid processing, adapting to various tasks with ease and accuracy.
Product Parameters

Modle	Unit	Z3032×10	Z3040×13	Z3050X16/1	Z3063x20/1	Z3080x25
Table SIZE (L*W*H)	mm	630X500X500			800X630X500	1000X800X560
Dimensions of Box Table	mm	630X500			800X630	1000X800
T-slot	No.	5	5	5	7	7
T Distance between two adjacent T-slots		150
T Width of T-slot		22
Dimensions of base	mm		2400X1000X200		2900X1250X250	3530X1400X300
Working surface of base	mm		1560X830		1950X1080	1200X2380
T-slot/Width/Distance		4/28/180			4/28/250	4/28/276
Distance from spindle axis to column	mm	360-1000	360 - 1300	350-1600	450-2000	500-2500
Distance from spindle nose to table surface	mm	140-1100	260 - 1300	320-1220	400-1600	550-2000
spindle head travel(horizontal)	mm	1000	1100	1250	1600	2000
Spindle taper		MT4	MT4	Morse No.5	Morse No.5	Morse No.6
Quill travel	mm	220/280		315	400	450
Max.drilling diameter	mm	35	40	50	63	80
Speed Range /steps	rpm	75-1220	28-1200	25-2000(16)	20-1600(16)	16-1250(16)
Max.output torque of spindle	N.m		500	500	600	1568
Spindle feed/steps	mm/r/step	0.1,0.16,0.25	0.1-0.25	0.04-3.2/16	0.04-3.2/16	0.04-3.2/16
Spindle motor power	kW	4			5.5	7.5
Elevating motor	kW	1.5	1.1	1.5	2.2	3
Coolant pump	kW	0.09	0.09	0.09	0.125	0.125
Clamping type		hydraulic
Overall dimension (L*W*H)	mm	1500×705×2050	1600×700×2050	2500X1070X2840	3080X1250X3400	3730X1400X4025
Package dimension (L*W*H)	cm	158×75×213	167×77×217	258X111X270	318X142X309	380×147×410
Net weight	kg	1100/1200	1500	3500	7000	11000

Radial drilling machines are versatile hole-processing equipment, perfect for drilling, reaming, tapping, end-face repair, and more. They are divided into hydraulic and mechanical types based on clamping structures. Known for their ease of use, flexibility, and adaptability, radial drilling machines are ideal for single-piece or batch production involving large porous parts, making them indispensable in general machining workshops.
