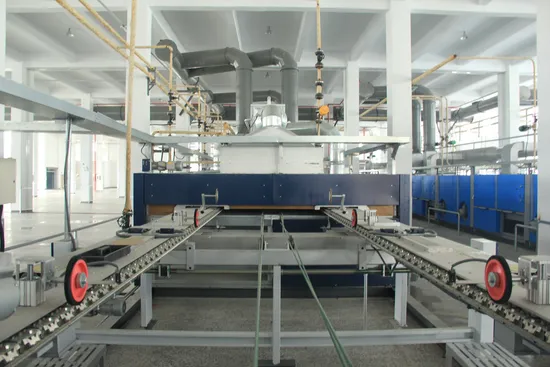

Coating Knife Stenter Finishing Machine for Blackout Fabric
| US$100,000.00-330,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RAM-C
Material
Cotton Fabric
Voltage
380V
Load Capacity
>2000kg
Certification
CE
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
Overseas Service Available
Machine Color
Blue+Grey
Speed
5-100m/Min
Rail
Horizontal Rail
Heating System
Gas/ Thermal Oil/ Steam
Transport Package
Wooden Box Packing
Specification
45X3.2X2
Trademark
HANTEX
Origin
China
HS Code
84512900
Production Capacity
6 Sets/ Month
Product Description
STENTER MACHINESPECIFICATION
| Application | Knitted, woven, warp knitted |
| Machine width | 2600mm |
| Working width | 2400mm |
| Speed | 5-100m/min |
| Chain | Horizontal chain |
| Rail | Lubricant free rail |
| Heating system | Natural gas, Thermal Oil, Steam |
| Chamber | 6 chamber/ 8 chamber/ 10 chamber |
| Nozzles | Specially nozzles for different kinds of fabric |
| Cooling | Air cooling+ cylinder cooling |
| Fabric exit | Plaiter+ Batching |
FEATURES:
- Fabric inlet combination is combined by fabric infeed frame, centering device, padder, speed synchronous controller etc
- Horizontal type padder, its combined by two solid roller, one is columnolid roller, the other is the drum-type solid roller.
- All the operating parameters of the machine are displayed in the same interface
- Virtual button with icon is easy for operating
- Exactly control the process of putting on needles
- Gumming unit are adjustable to meet the different processing needs
- Module design is suitable for different requirements
- Easy assembling
- Space saving construction
- Minium lubricant consumption by the direct lubrication system
- The insulation panel of the whole machine is made of 150mm thickness high density heat insulating material, it keeps the heat loss at the lowest state
- All drive device are located outside the heated chamber and are accessible from the outside
Flow Chart:
Entry → Padder → Coating device→ Operation platform → Rail+ pinning → Heat setting chamber → Air cooling → Selvedge cutting → Plaiter+ Batching
