Nc Milling Machine for Aerospace Parts, Metal Engraving Double Milling Machine
| US$74,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DM-1200NC
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
Dm-1200nc
Machine Capacity
200-1250mm
Max Process Thickness
290mm
X,Y-Axis Displacement
10m
Z-Axis Displacement
10m
X,Y-Axis Travel
560mm
Z-Axis Travel
1300mm
Spindle(Taper)
Bt50
Spindle Speed
50-600 Rpm/Min
Tool Disc Diameter
300mm
Spindle Servo Motor
11kw
Z-Axis Servo Motor
4.5 Kw
X,Y-Axis Servo Motor
2 Kw
Dividing Disk Diameter
600mm
Mechanical Weight
15000kg
Transport Package
Standard Exporting Package
Trademark
TEMY
Origin
China
HS Code
8459210000
Production Capacity
500 Sets/ Year
Product Description

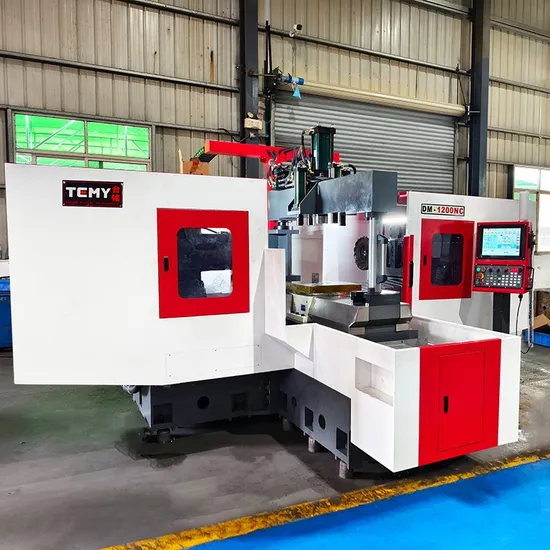

CNC Double Head Milling MachineModel: DM-1200NC
The double-head milling machine is a kind of machining equipment mainly used in the manufacturing industry. It is equipped with two milling heads, which can work simultaneously or independently according to the processing requirements. These milling heads are usually driven by high-power motors to provide sufficient torque and rotational speed for milling operations.
The double-head milling machine has high processing efficiency and precision. It can complete the milling of complex workpieces in one operation, reducing the processing time and improving the production efficiency. It is widely used in the processing of various materials such as metal, wood and plastic, and is suitable for manufacturing parts with high precision requirements, such as mechanical parts, mold manufacturing and so on.
| Model | UNIT | DM-1200NC | |
| Maching capacity | Processing scope | mm | 200-1250 |
| Max.processing thickness | mm | 290 | |
| Workbench loading | kg | 2500 | |
| Maching accuracy | Dimensionalaccuracy | mm | .01-0.02 |
| Verticality | mm | 0.02 | |
| Straight angle | mm | 0.008 | |
| Feeding speed | Z-axis travel | mm | 1300 |
| X,Y-axis travel | mm | 560 | |
| Feeding speed | Z-axis rapid displacement | m | 10 |
| X,Y-axis rapid displacement | m | 10 | |
| Spindle | Spindle(taper) | / | BT50 |
| Spindle speed | rpm/min | 0-600 | |
| Tooldisc diameter | mm | 300 | |
| Motor | Spindle servo motor | kw | 11 |
| Z-axis servo motor | kw | 4.5 | |
| X,Y-axis servo motor | kw | 2 | |
| Fourth axis servo motor | kw | 2 | |
| Verticalclamp servo motor(oil pressure) | kw | 2 | |
| Workbench | Dividing disk diameter | mm | 600 |
| Disk surface dividing | 90°-(Dividing) | ||
| Others | Mechanical weight | kg | 15000 |
