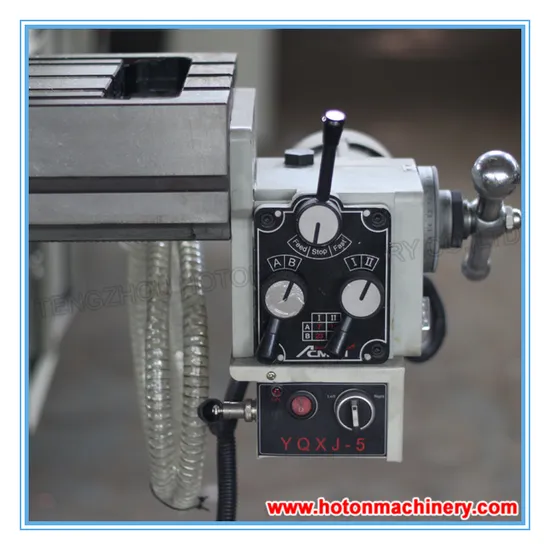

Universal Variable Speed Turret Milling Machine (X6330)

Product Description

TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably
and rigidly, also makes it beautiful and easy to operate.
5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
SPECIFICATIONS:

MODEL	X6323A	X6325	X6325D	X6333	X6330A
Table size	230*1067 230*1246	254*1270 254*1370	254*1270 254*1370	330*1370 330*1500	305*1370 305*1500
Long travel(mm)	650 840	850 950	850 950	840 1000	870 1000
Cross travel(mm)	305	420	420	368	380
Vertical travel(mm)	350	420	420	450	430
T-slot No.and size(mm)	3x16
Ram travel(mm)	315	470	470	500	500
Distance from spindle nose to table surface(mm)	0-350	0-405	0-405	0-450	0-350
Spindle hole taper	Standard:R8	standard:ISO40
Spindle travel(mm)	127
Spindle speed(r.p.m)	standard: shift grade 16, 50HZ 65-4500,60HZ80-5440
	optional:variable:60-4200
Auto.quill feed	Three steps:0.04/0.08/0.15mm/revolution
Spindle motor	2.25kw/3hp	2.25kw/3hp	3.75kw/5hp	3.75kw/5hp	3.75kw/5hp
Head swivel	90°
Head tilting	45°			Fix
Dimension of package	1400 x1476x2030	1516 x1550x2080	1516 x1550x2080	1800 x2016x2180	1566 x1650x2080
G.W/set	1100	1550	1590	2300	1750
