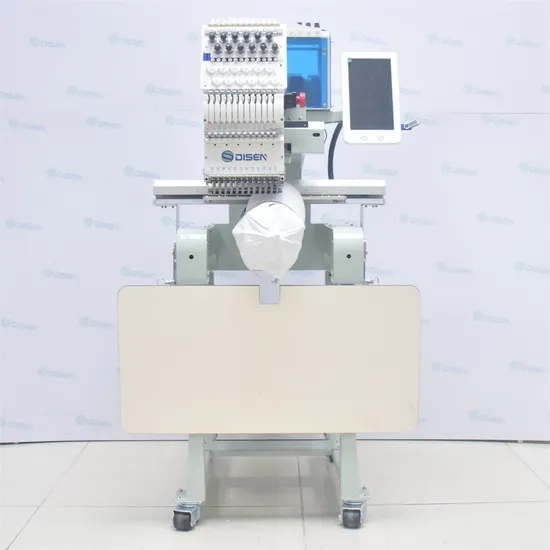

Cheap Embroidery Machine Single Head 12 Needle Dahao Computer 300*400mm

Product Description

Product Description
Product Parameters

Product name	30*40 Mini Cap Embroidery Machine
Package size	1110*840*880mm
Power	220V/110V custom
Maximum Speed	1000 RPM
Embroidery Area	300*400mm
Weight (KG)	200KG
Function	Cap/shirt/flat/3D/etc,Custom sequin/Cording/Beading/Chenille/Boring
Application	Cap/T-shirt/finished Garments/logos/3D Embroidery
Computer	Dahao/Rayan Computer
Language	15 Languages
Optional Devices	Sequin+cording+chenille
Advantage	High Efficiency Automatic Working
Packing	Wooden Case Packing
Thread trimming	Automatic Trimming

Detailed parameters of control system1.Display screen: 10 inch touch screen,resolution 1024 * 6002.Control accuracy: minimum control stitch distance 0.1mm3.Stitch size range: 0.1mm-12.7mm4.Pattern input and output forms: USB, network5.Servo main motor,stepper XY motor,motor color change,motor trimming, motor thread hooking6.In conjunction with the main shaft zero position plate,the main shaft angle detection and mian motor share the same encoder7.Using an external multi turn potentiometer, directly detect the position of the color changing needle and display it on the operating head8.Using highly reliable plugins to ensure the reliability of system connections9.Lock encryption:have
Machine configurations1.Head number: 12.Needle number: 12/153.Embroidery area: 300 * 400mm4.Control system: Raynen5.Dimensions: length 650 * width 700 * height 1400mm6.Net weight: 150KG7.Maximum speed: 1000RPM8.Memory pattern total capacity: 32 million needles9.Max stitches for a single pattern: 10 million stitches10.Function: Flat embroidery, hat embroidery, ready to wear embroidery, patch embroidery, combination and loop embroidery, letter embroidery, graffiti embroidery.11.Supported languages: Chinese, English, Spanish, Turkish, French, German, Portuguese, Russian, Thai, Italian, Arabic, Dutch, Polish
