Sanway D20kq Fp20000q DSP Professional 16000W Class D Audio Power Amplifier DJ Audio High Power Amplifier for Subwoofer
| US$300.00-800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FP20000Q with DSP D20KQ
Used For
Professional
Tube Type
Transistor Amplifier
Function
Post Amplifier
Sound Channel
4.1
Output Number
4
Voltage
AC220V or AC110V
Element Number
Push-Pull Amplifier
Conductive Mode
D
8 Ohms
4 X 2100W
4 Ohms
4 X 4000W
Power Supply
SMPS Mosfet
Transport Package
Double Layer Carton Packing
Specification
483× 377× 88mm
Trademark
Sanway Audio
Origin
Made in China
HS Code
8518400090
Production Capacity
2000 PCS /Month
Packaging & Delivery
Package Size
60.00cm * 55.00cm * 18.00cm
Package Gross Weight
18.000kg
Product Description

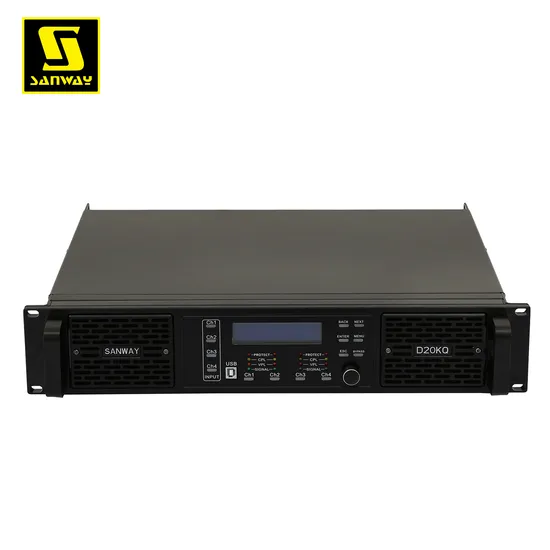

Sanway D20KQ DSP Professional Audio Amplifier Quiet Fans Power Amplifier for Home TheaterDescription:
1>. D20KQ 4 channel Class-D DSP Professional Audio Amplifier is the innovative technology achievement of Sanway Audio.
2>. The D20KQ consists of one 4in & 4out digital processing with 20 factory preset configurations enable user can modify and store the presets conveniently.
3>. The built in DSP including a crossover, parametric EQ filters, limiting and alignment delay, it eliminates the need for outboard loudspeaker processors.
Features:
1>. Sanway D20KQ DSP Professional Audio Amplifier Quiet Fans Power Amplifier for Home Theater;
2>. 4x2100W at 8 ohms, 4x4000W at 4 ohms;
3>. It innovated high-efficiency cooling system with special design for fast cooling;
4>. DSP function: Mute, Polarity, Gain, EQ, Xover, Limiter;
5>. Ethernet function (Wi-Fi): to control many D20KQ amplifiers with one computer.
Specification:
| DSP | |
| MODEL: | D20KQ DSP Professional Amplifier Quiet Fans Power Amplifier |
| Input: | 4 channel |
| Output: | 4 channel |
| PC Com Port: | 1 USB Com Port on front panel, 1 USB Com Port,2 RS485 Com Port on back panel (RJ-45) |
| Processor: | 48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter |
| Dynamic range: | >110dB |
| Frequency Response: | ±0.25dB, 20Hz --- 20KHz |
| Distortion: | < 0.01%, 20Hz - 20KHz @ +10dBu balanced input |
| Signal to noise ratio: | >110dB |
| crossover filter: | Each output channel can be independently set as LPF and HPF and APF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 dB/octave |
| EQ: | Bandwidth:0.2 to 36 oct, Frequency:20Hz to 20KHz, Gain: -24dB to +12dB, step:0.2 dB |
| Delay: | 0ms to 115ms |
| Display: | 2 x 20 LCD |
| Store Settings: | 20 user program dynamic storage |
| AMPLIFIER | |
| Model | D20KQ DSP Professional Amplifier Quiet Fans Power Amplifier |
| Output Power | |
| 8Ω Stereo Power | 4×2100W |
| 4Ω Stereo Power | 4×4000W |
| 8Ω Bridged Monon Power | 2×8000W |
| Frequenty Response | 20Hz-20kHz ±0.5dB |
| THD+N(Rated power,4Ω/KHz)% | 0.10% |
| Signal Noise Ration(dB) | 110dB |
| Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |
| Output Connectors | Speakon Connectors(NEUTRIK) |
| Power Requirement | 100-120V-50-60Hz or 200-240V-50-60Hz |
| Dimension | 483×377×88mm |
| Net weight | 13kg |
