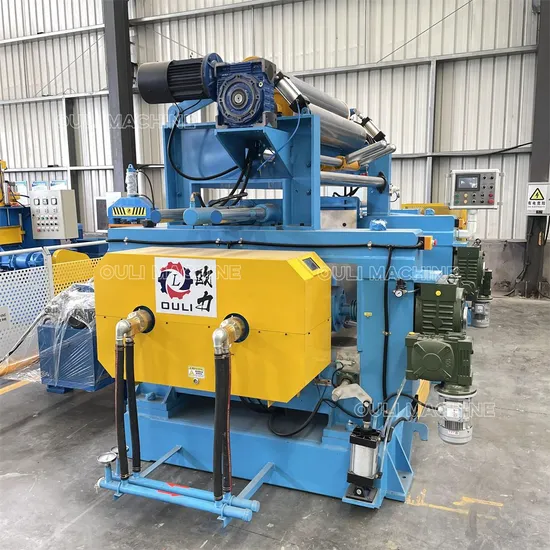

High Production Rubber Sheet Strip Making Machine, Two Roll Mill Roller Machinery

Product Description

High production rubber sheet strip making machine,two roll mill roller machinery
Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.
with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing
machine for making rubber or plastic products. Detailed Photos
Product Parameters

Parameter/model		XK-160	XK-250	XK-300	XK-360	XK-400
Roll diameter(mm)		160	250	300	360	400
Roll working length (mm)		320	620	750	900	1000
Capacity (kg/batch)		4	15	20	30	40
Front roll speed (m/min)		10	16.96	15.73	16.22	18.78
Roll speed ratio		1:1.21	1:1.08	1:1.17	1:1.25	1:1.27
Motor power (KW)		5.5	18.5	22	30	37
Size (mm)	Length	1104	3230	4000	4140	4578
	Width	678	1166	1600	1574	1755
	Height	1258	1590	1800	1800	1805
Weight (KG)		1000	3150	5000	6892	8000

Parameter/model	XK-450	XK-560	XK-610	XK-660	XK-710
Roll diameter(mm)	450	560/510	610	660	710
Roll working length (mm)	1200	1530	2000	2130	2200
Capacity (kg/batch)	55	90	120-150	165	150-200
Front roll speed (m/min)	21,1	25.8	28.4	29.8	31,9
Roll speed ratio	1:1.27	1:1.17	1:1.18	1:1.09	1:1.15
Motor power (KW)	55	90/110	160	250	285
Length(mm)	5035	7100	7240	7300	8246
Width(mm)	1808	2438	3872	3900	3556
Height(mm)	1835	1600	1840	1840	2270
Weight (KG)	12000	20000	44000	47000	51000

Our Advantages
Manufacturing Technique
Company Profile
Established in 1997, Qingdao Ouli Machine Co., Ltd. was located in Huangdao District, the west coast of Qingdao city,
Shandong province, China.We are specialized in rubber machinery designing,manufacturing and maintenance work.OULI main products:1. Rubber mixing equipment: kneader, bucket,mixing mill, bale cutter
2. Rubber vulcanizing machine: Four-column press, Frame press, E-type press, tire and tube press, Belt vulcanizing press.
3. Automatic and semi-automatic waste tire recycling equipment
4. Rubber calendaring machine: 2 roll, 3 roll, 4 roll calender, calendaring line
5. Rubber extruding equipment: Hot feed extruder,cold feed extruder, belt extrudingand calendering line .
6. Reclaimed rubber production line: XKJ-450 , XKJ-480 Rubber reining mill.
7. Paper roll cutting machine.Ouli machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil.We warmly welcome customers visit our factory and technology discussion is highly appreciated.

Certifications
Marketing Campaign
Packaging & Shipping FAQ
Q1: Where is your factory located?
A1: Qingdao OULI machine co.,LTD is located at Wangjialou industrial zone ,Huangdao district ,Qingdao city, China
Q2: Are you an integrated supplier for rubber&plastic machine ?
A2: Yes, we can provide the complete solution line to customer according to customer's requirement.
Q3: How about the quality control in your factory?
A3: OULI has the SOP (Standard Operation Procedure) and all the production step must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, technology also water .electrical, machine layout in factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machine and support training to workers also.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of standard machine could be within 10-30 days
Q7 : What is the warranty of the machine ?
A7: The whole machine's warranty period is 12 months and key parts will be depended.
Q8 : Do you provide any spare parts with machine?
A8: Yes, OULI will provide one set standard spare parts to customer according to different machines
