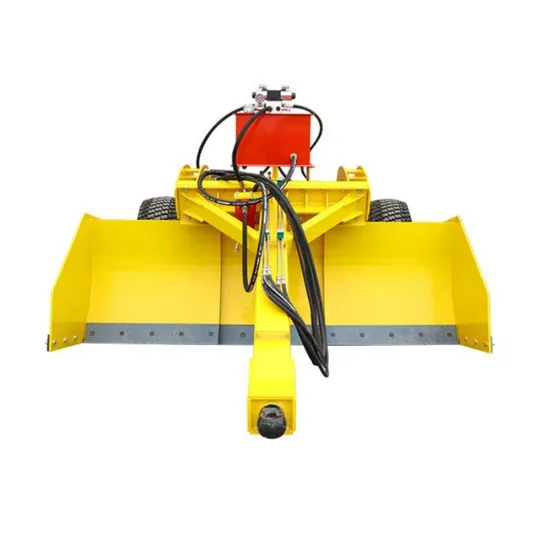

CE Approved Best Price Agriculture Tractor Used Land Leveler Grader Land Leveling Machine
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Yellow
Warranty
1 Years
Item
Land Leveling Machine
Structure
Trail Type
Dimension (mm)
2650*1600*1320
Working Width(mm)
1500-2200
Matched Power(Kw)
50.4-80.9
Control Mode
Satellite Control
Leveling Shovel Type
Straight Shovel
Tire Size
23*8.50/12
Weight (Kg)
1150
Working Area (Area/H)
3.5
Customized
Accepted
Transport Package
Standard Export
Specification
Customized
Trademark
Harvester
Origin
China
HS Code
843280900
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
480.00cm * 300.00cm * 170.00cm
Package Gross Weight
2600.000kg
Product Description
Product Description
Satellite grader is a farmland grader that uses satellite signals as feedback control. Its working principle is that the satellite base station receives high-precision positioning and elevation information, and sends differential data to the satellite receiver through radio mode. The vehicle level controller receives real-time radio broadcast data from the base station and obtains high-precision positioning and elevation information, which is controlled by the vehicle level. The main control panel of the device analyzes its differential data, calculates the real-time height of the actual satellite grader, and continuously sends signals to the controller. After receiving the height change signal, the controller will perform automatic correction. The corrected signal controls the hydraulic control valve to change the direction and flow of hydraulic oil to the cylinder, and automatically controls the height of the excavator to complete the ground leveling operation. The satellite grader mainly consists of a satellite antenna, a vehicle leveling controller, a satellite receiver, a satellite base station, a hydraulic system, and a leveling shovel.
Product Parameters
| Model | Structure | Dimension (MM) | Working Width(MM) | Matched Power(KW) | Control Mode | Leveling Shovel Type | Tire Size | Weight (KG) | Working Area (Area/H) |
| 12PW-1.5 | Trail Type | 2650*1600*1320 | 1500-2200 | 50.4-80.9 | Satellite Control | Straight Shovel | 23*8.50/12 | 1150 | 3.5 |
| 12PW-2.5 | Trail Type | 4000*2614*1350 | 2500-3200 | 102.9-154.4 | Satellite Control | Straight Shovel | 10.0/75-15.3 | 1440 | 5 |
| 12PW-2.8 | Trail Type | 4000*2930*1350 | 2800-3500 | 102.9-154.4 | Satellite Control | Straight Shovel | 10.0/75-15.3 | 1480 | 6 |
| 12PW-4.0 | Trail Type | 4800*2650*1700 | 2500-4000 | 154.4-180.5 | Satellite Control | Straight Shovel | 10.0/75-15.3 | 2600 | 8 |
| 12PW-2.5 | Trail Type | 4000*2610*1350 | 2500 | 80.4-102.9 | Satellite Control | Straight Shovel | 10.0/75-15.3 | 1150 | 4 |
| 12PW-3.0 | Trail Type | 4300*3120*1650 | 3000 | 102.9-154.4 | Satellite Control | Straight Shovel | 31*15.5-15 | 1980 | 5 |
Detailed Photos
The System
Applications
Why Chhoose Us
Certifications
Company Profile
