Sfjcndt Xxg-2505 250kv NDT X-ray Machine with Micro Focus X-ray Tube Portable Xray Machine

Product Description

250KV Flaw detector
XXG2505 is a directional corrugated ceramic X-ray tube flaw detector:
Maximum output voltage 250KV,
Maximum tube current 5 MA,
Focus size: 2.0*2.0 mm,
Focal length is 600 mm, 5 minutes through 40 mm A3 steel, blackness is not less than 1.5, sensitivity is better than 1.5%, 1:1 work and rest, forced air cooling.

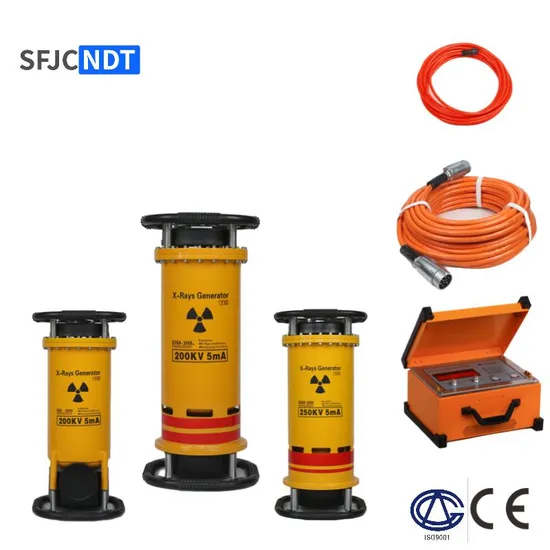

Equipment Packing List (standard)
1. X-ray generator
2. One controller
3. Each YR3*2.5 power cable is 10m
4. Control cable YR 3*2.5+6*1, each 25m
5. Fuse 20A five pieces 6*30
6. Each ground cable is 5 meters
7. A copy of product specification
8. The product comes in three packages
9. One certificate of qualification

SPECIFICATIONS

Model

Type

Output Voltage (KV)

Power Capacity (KVA)

Focus size (mm*mm)

Radiation Coverage (∘)

Max. Penetration (A3)

Output current

Cooling

Generator Size (mm)

Controller Size (mm)

Generator Weight (kg)

Controller Weight (kg)

XXG2505

Normal

130~250

2.5

2.0*2.0

40+5

40

5mA

Air cooling

230*230*640

315*240*160

28

8.5

XXG2505L

Small

130~250

2.5

2.0*2.0

40+5

40

5mA

Air cooling

200*200*610

315*240*160

23

8.5

XXGH2505P

Normal

130~250

2.5

1.0*2.2

360*25

38

5mA

Air cooling

230*230*640

315*240*160

28

8.5

XXGH2505LP

Small

130~250

2.5

1.0*2.2

360*25

38

5mA

Air cooling

200*200*610

315*240*160

23

8.5

XXGH2505Z

Normal

130~250

2.5

1.0*3.5

360*30

32

5mA

Air cooling

230*230*640

315*240*160

28

8.5

XXGH2505LZ

Small

130~250

2.5

1.0*3.5

360*30

32

5mA

Air cooling

200*200*610

315*240*160

23

8.5
