Long Frame Auto Doffer Spinning Machine with High Speed Running Performance

Product Description

Product Description
JT598 Series Compact Spinning Frame Main Models: JT598 Ring Spinning Auto-Doffing Spinning Frame
JT598J Four-Roller Negative-Pressure Auto-Doffing Compact Spinning Frame
JT598X Mesh Negative-Pressure Auto-Doffing Compact Spinning Frame
The normal speed of our spinning frame spindle up to 21500 r/min, electrical control system adopts PLC
control technology and AC servo control technology, which can make the equipment run steadily and reliably
JINGTIAN compact spinning frame key parts self-made rate reach 100%, roller and pendulum arm's output.
variety and quality are the first one in the world, compact spinning instrument's output. variety and quality are
in the lead position in the world, it can spin comb yarn, card yarn, siro yarn and bunchy, etc, and be applicable
for the special fiber's requirement of cotton, synthetic, blend, silk and so on, it is the best choice of spinning
the high-quality yarn.
Product Parameters

Spindle Gauge(mm)	70mm
Spindle Qty	1200, 1008, 944, 864, 768, 720, 624
Ring Diameter(mm)	35, 38, 40, 42, 45
Tube Length(mm)	200, 210
Spun Yarn(Count)	36-5(16-120Ne), normal supply: 36-13(16-45Ne)
Spinnable fiber	cotton and cotton type chemical fiber
Drafting	Three-line roller, with 8 spindles per piece, double apron (up short and down long)
Compact Drafting	Four-line roller, with 8 spindles per piece, double apron (up short and down long)
Drafting Times	10-100
Spindles	Aluminum-coated stem spindle used in auto-doffing
Spindle Speed Range	12500-26000 operating speed of empty spindle is up to 21500
Spindle Driving	each tape for 4 spindles
Twist	330-2000 (t/m)
Twist direction	Z
Roving package	φ135x320mm φ152x406mm(max)
Main Motor Power(kw)	37KW(for 1008 spindle/set) 45KW(for 1200 spindle/set)
Compact Motor Power	11
Parts as option	Balloon ring, cleaner, auto-doffing, automatic winder

Detailed Photos

Draft Drive
Adopts three rollers, double aprons drafting; adopts four rollers drafting with lattice aprons, or three bottom rollers, air suction drum, Adopts
pendulum arms that Tonghe Company researches and develops which can effectively ensure high quality and taste of the products.
Indraft broken yarn use unique two-air flue, single spindle cotton suction pipes, get by changing diameter, can use negative pressure
more reasonable, reduce the energy consumption.

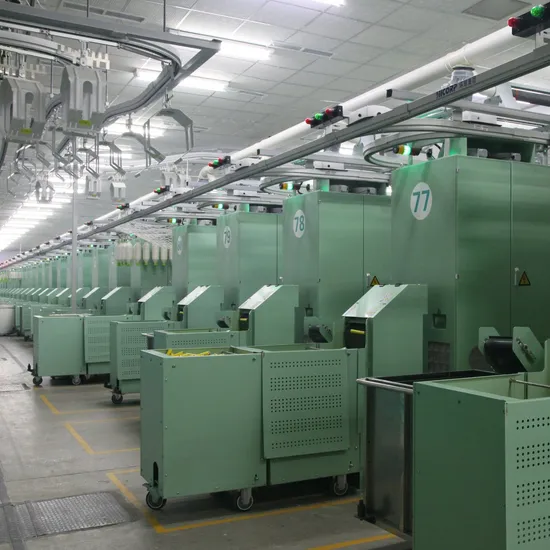

Production Process

FAQ
Q: Why Choose Our Company?
Jingtian Textile Machinery Co., Ltd. (founded in 1991) is a key backbone production enterprise in China's textile machinery manufacturing industry. It has a long history and experience in independent development and production of textile machinery products. It has a first-class R & D center and scientific and technological development team. It is an enterprise that has passed ISO9001 quality system certification earlier in the industry. At present, the company has 20 subsidiary companies with nearly 300 employees. Diversified products, standardized corporate governance structure and flexible business mechanism have injected new vitality into the development of the company.
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service?
1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
Q: One-stop Service:
We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
