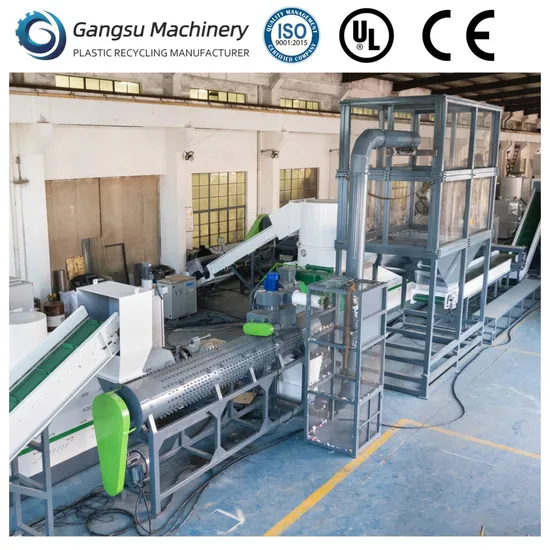

1000 Kg/H Waste Plastic Pet Washing Machine Pet Bottle/ Flake Crushing/ Washing/ Dryer Squeezing/ Recycling Line
Basic Info.
Model NO.
GS-1000
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Breaing Brand
NSK
Main Material
304 SUS
Color
Customized Color
Technology
China Standard
Motor
Siemens
Humidity
3%-5%
Washing Type
Hot Washing
Crushing Type
Wet Crushing
Processing Type
Label Removing-Crushing-Washing-Dewatering
Installing
Engineering Overseas Install
Inverter
Zoncn
Breaker
Siemens
Video Outgoing-Inspection
Provided
Condition
New
Name
Pet Washing Line
Transport Package
Wooden Pallets
Specification
1000kg/h
Trademark
GANGSU
Origin
China
HS Code
8477800
Production Capacity
1000kg/H
Product Description
1000 Kg/H Waste Plastic Pet Washing Machine Pet Bottle/ Flake Crushing/ Washing/ Dryer Squeezing/ Recycling Line Product Parameters| Model | Capacity | Installed Power | Hot Washing | Manpower | Area Required (L*W*H) |
| GS-300 | 300kg/hr | 90KW | Optional | 1-2 | 22m*5m*3.5m |
| GS-500 | 500kg/hr | 220KW | Optional | 2-3 | 25m*6m*5.5m |
| GS-1000 | 1000kg/hr | 500KW | Optional | 4-5 | 35m*6m*5.5m |
Recycling Process
Product Description
Belt conveyor
Used to convey PP/HDPE solid waste materials to the crusher in the back-end equipment
Plastic crusher
Used for crushing PP/HDPE solid waste into 10-20mm flakes
Screw feeder
This equipment is used to transport the rinsed material to the rear equipment.
Floating tank
It is used to rinse the material for the first time to separate the sediment impurities in the material
Friction washer
Used to rinse the rinsed material with high pressure water, high speed scrubbing and conveying to the rear equipment
De-water machine
The centrifugal force generated by high-speed rotation removes most of the water from the material
Zig-zag dryer system
Heating of the air in the pipeline to further reduce the moisture content of the material
Silo
For storage of clean and dry plastic film flakes
Control cabinet
For controlling the washing line and observing the operation of each piece of machine
Main Products
Company Profile
Production Line
Exhibitions&Customers
Packaging & Shipping
