11kv 15kv 20kv 33kv 35kv Medium Voltage Power Cable Single or 3 Core Copper Aluminum Conductor XLPE Insulated Armoured LSZH Electric Cable XLPE Cable

11kv 15kv 20kv 33kv 35kv Medium Voltage Power Cable Single or 3 Core Copper Aluminum Conductor XLPE Insulated Armoured LSZH Electric Cable XLPE Cable

US$1.00 100 Meters (MOQ)

Basic Info.

Model NO.
Medium Voltage Power Cable
Current
DC & AC
Insulation Material
XLPE
Sheath Material
PVC/XLPE/PE/LSZH/CPE
Material Shape
Round Wire
Wire Core Material
Copper or Aluminum
Certification
ISO, CCC, CE, RoHS
Model
YJLV22
Brand
Henway
Quality
High Quality
Standard
ASTM, BS, as, DIN, CSA, IEC, GB/T
Cores
1core or 3cores
Sample
Free
OEM/ODM
Yes
Transport Package
Wooden Drums, Steel-Wooden Drums, Steel Drums
Specification
Customized
Trademark
Henway
Origin
China
HS Code
7614900000
Production Capacity
10, 000, 000km Per Year

Packaging & Delivery

Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
0.100kg

Product Description

Product Description 5KV to 46KV Medium Voltage Cable
Application: Medium voltage power cables are apply for power transmission and distribution line at AC rated voltage up to 46kV.
Applicable standards: IEC60502-2, BS6622, SANS1339, AS/NZS1429.1, DIN VDE 0276-626, NFC 33-226, IEC60840, ICEA S-93-639,ICEA S-94-649, HD620,CSA C68.10or the standards agreed by both of the customers and us.

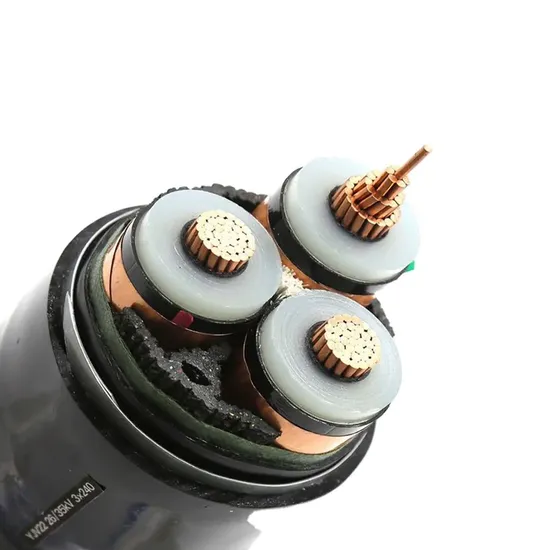

Construction:
Conductor: IEC60228 class 1 class 2 bear copper/Aluminum etc
Conductor Screen: Semi-conducting compound
Insulation: XLPE or EPR
Insulation Screen: Semi-conducting compound
Core: 1core or 3cores
Shield: Copper wire/ Copper tape/AL plastic tape/Aluminum tape
Inner Sheath( optional): PVC PE LSZH CPE
Armoured ( optional): Galvanized steel wire/Aluminum wire/Two layers of Aluminum tapegap-wrapped /Two layers of steel tape gap-wrapped / Galvanized steel interlocked armour/Aluminum alloy interlocked armour
Outer Sheath: PVC PE LSZH CPE
Product Parameters
3.6/6KV XLPE Insulated aluminum wire armour PVC sheath power cable
Number of Cores and Nominal Area Thickness of Insulation Approx. Overall Diameter Approx mass Max. DC Resistance
at 20ºC
Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
1×25 2.5 23.8 866 715 0.727 1.20 140 163 108 127
1×35 2.5 24.9 993 784 0.524 0.868 166 198 129 154
1×50 2.5 26.0 1152 867 0.387 0.641 196 238 152 184
1×70 2.5 27.7 1407 994 0.268 0.443 239 296 186 230
1×95 2.5 29.6 1721 1152 0.193 0.320 285 361 221 280
1×120 2.5 31.1 1994 1275 0.153 0.253 323 417 252 324
1×150 2.5 32.7 2301 1425 0.124 0.206 361 473 281 368
1×185 2.5 35.4 2804 1696 0.0991 0.164 406 543 317 424
1×240 2.6 38.0 3430 1976 0.0754 0.125 469 641 367 502
1×300 2.8 40.8 4119 2294 0.0601 0.100 526 735 414 577
1×400 3.0 44.4 5043 2706 0.0470 0.0778 590 845 470 673
1×500 3.2 49.8 6393 3398 0.0366 0.0605 735 958 578 767
1×630 3.2 53.9 7892 4024 0.0283 0.0469 831 1098 665 896
1×800 3.2 58.2 9719 4757 0.0221 0.0367 945 1266 761 1041
Trefoil arrangement;Maximum conductor temperature 90 °C ;Ambient air temperature 30 °C ;Ground temperature 20 °C ;Depth of laying 0,8 m ;
Thermal resistivity of soil 1,5 K.m/W
3.6/6KV XLPE Insulated steel wire armour PVC sheath power cable
Number of Cores and Nominal Area Nominal Thickness of Insulation Approx. Overall Diameter Approx mass Max. DC Resistance
at 20ºC
Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×25 2.5 41.9 3207 2748 0.727 1.20 129 143 100 111
3×35 2.5 45.6 4054 3430 0.524 0.868 154 172 119 133
3×50 2.5 48.2 4654 3792 0.387 0.641 181 205 140 159
3×70 2.5 52.2 5592 4347 0.268 0.443 220 253 171 196
3×95 2.5 56.1 6703 4975 0.193 0.320 263 307 204 238
3×120 2.5 60.0 7762 5582 0.153 0.253 298 352 232 274
3×150 2.5 63.4 8878 6187 0.124 0.206 332 397 259 309
3×185 2.5 67.3 10248 6881 0.0991 0.164 374 453 293 354
3×240 2.6 73.5 12509 8072 0.0754 0.125 431 529 338 415
3×300 2.8 81.0 15741 10190 0.0601 0.100 482 599 380 472
3×400 3.0 88.8 19093 11996 0.0470 0.0778 541 683 432 545
Trefoil arrangement;Maximum conductor temperature 90 °C ;Ambient air temperature 30 °C ;Ground temperature 20 °C ;Depth of laying 0,8 m ;
Thermal resistivity of soil 1,5 K.m/W
18/30KV XLPE Insulated aluminum wire armour PVC sheath power cable
Number of Cores and Nominal Area Thickness of Insulation Approx. Overall Diameter Approx mass Max. DC Resistance
at 20ºC
Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
1×35 8.0 37.4 1840 1630 0.524 0.868 170 201 132 158
1×50 8.0 38.7 2036 1751 0.387 0.641 200 242 156 190
1×70 8.0 40.4 2335 1920 0.268 0.443 242 300 190 235
1×95 8.0 42.3 2681 2112 0.193 0.320 288 363 224 285
1×120 8.0 43.8 2996 2278 0.153 0.253 326 420 256 328
1×150 8.0 46.4 3506 2621 0.124 0.206 364 476 286 372
1×185 8.0 48.3 3970 2862 0.0991 0.164 409 546 321 428
1×240 8.0 50.9 4661 3207 0.0754 0.125 472 645 372 505
1×300 8.0 53.5 5380 3555 0.0601 0.100 529 740 418 578
1×400 8.0 56.7 6333 3996 0.0470 0.0778 593 848 475 675
1×500 8.0 60.5 7556 4561 0.0366 0.0605 740 963 583 772
1×630 8.0 64.8 9172 5304 0.0283 0.0469 835 1101 675 900
1×800 8.0 69.1 11063 6101 0.0221 0.0367 950 1272 765 1046
Trefoil arrangement;Maximum conductor temperature 90 °C ;Ambient air temperature 30 °C ;Ground temperature 20 °C ;Depth of laying 0,8 m ;
Thermal resistivity of soil 1,5 K.m/W
18/30KV XLPE Insulated steel wire armour PVC sheath power cable
Number of Cores and Nominal Area Thickness of Insulation Approx. Overall Diameter Approx mass Max. DC Resistance
at 20ºC
Current Rating
Copper Aluminium
Copper Aluminium Copper Aluminium Direct In Soil In air Direct In Soil In air
Nos×mm2 mm mm kg/km kg/km Ohm/km Ohm/km A A A A
3×35 8.0 72.1 7473 6848 0.524 0.868 154 175 118 132
3×50 8.0 76.2 9011 8149 0.387 0.641 180 210 139 158
3×70 8.0 80.3 10196 8951 0.268 0.443 217 258 171 200
3×95 8.0 84.4 11479 9751 0.193 0.320 261 310 204 240
3×120 8.0 88.0 12743 10563 0.153 0.253 296 353 229 279
3×150 8.0 91.2 13918 11228 0.124 0.206 332 405 256 310
3×185 8.0 95.3 15562 12196 0.0991 0.164 374 458 293 360
3×240 8.0 101.1 18038 13601 0.0754 0.125 429 535 338 420
3×300 8.0 106.2 20502 14952 0.0601 0.100 482 602 380 474
3×400 8.0 113.0 23898 16800 0.0470 0.0778 541 690 428 545
Trefoil arrangement;Maximum conductor temperature 90 °C ;Ambient air temperature 30 °C ;Ground temperature 20 °C ;Depth of laying 0,8 m ;
Thermal resistivity of soil 1,5 K.m/W
Detailed Photos
Packaging & Shipping
* We can design and produce according to client's requirement. Any requirement, feel free to contact us! For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 6 hours!!
Company Profile
Established in 1994,Henway Electric Group Inc has now developed into an innovative enterprise with strong R&D ability after 20 years in the
industry. It covers an area of 210,000 square meters and has more than 2,000 employees. It has successively introduced about 2,000 items of
advanced R&D, production and testing equipment. The annual production capacity exceeds 30 billion yuan.
Henway's products can be divided into four categories,namely power cable, wire &cable for electrical equipment, communication cable and building
wire.They include insulated power cable of 220KV and below, Rubber insulated cable of 35KV and below, Aerial insulated cable,overhead conductor
,Mining cable etc,a total of nearly 30 product series with nearly 4,000 types and 50,000 items.The products are widely used in the fields of
infrastructure, utility, hydro-water projects, iron, mining, petroleum, chemical industry,building,subway, high-speed rail,airports,etc.They have been
exported to more than 100 countries around the world.
Henway passed ISO 9001,ISO 14001,OHSAS 18001,and successively acquired TUV certificate,CE certificate,UL certificate and so on.More than 30 years of development and cultivation makes the extraordinary achievements of Henway. Henway is still promoting the enterprise's scale, technology
and brand construction.
Heway Cable-make pioneering efforts and forge ahead !
Certifications
FAQ 1. Q:How does your factory control the quality?
A:Factory has a quick and enthusiastic merchandisers team, strict and responsible QC team, service for many well-known brands all around the world with our high-quality products and strict.
2. Q:Can I visit your company?
A: Sure,If you need,we will arrange the driver to pick you up.
3. Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4. Q:Have you ever supplied cables to our country?
A: Henway Cables have been sold to over 100 countries and regions in the world. you can contact me for details.
5. Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables. Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7. Q:How long is your delivery time?
A: According to your order's quantity. Usually our lead time is 3 - 20 working days.
