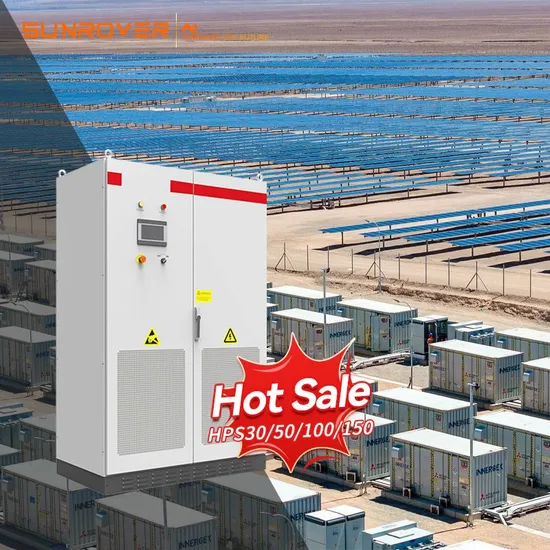

Atess 150kw Solar System Three Phase PV Grid Tied Power Inverter for Solar System
Basic Info.
Model NO.
ATESS-HPS150KW
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
8000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Deye
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
MPPT Voltage Range (V)
150-425
No. of Mpp Trackers
2
No. of Strings Per Mpp Tracker
2+2
Output Active Power (W)
7600
Output Voltage (V)
220/230
Output Frequency
50/60Hz
Battery Type
Lead-Acid or Lithium-Ion
Ingress Protection(IP) Rating
IP 65
Type of Cooling
Intelligent Air Cooling
Transport Package
Carton and Pallets
Specification
420W*670H*233D
Trademark
Deye
Origin
China
HS Code
8504403090
Product Description
Product DescriptionProduct size display
Product composition display
Product accessories display
Product Parameters
| Model | HPS30 | HPS50 | HPS100 | HPS150 |
| AC (Grid-connected) | ||||
| Apparent power | 33kVA | 55kVA | 110kVA | 165kVA |
| Rated power | 30kW | 50kW | 100kW | 150kW |
| Rated voltage | 400V | |||
| Rated current | 43A | 72A | 144A | 217A |
| Voltage range | 360V - 440V | |||
| Rated frequency | 50/60Hz | |||
| Frequency range | 45~55/55~65Hz | |||
| THDI | <3% | |||
| AC connection | 3/N/PE | |||
| AC input | 60kVA | 100kVA | 200kVA | 240kVA |
| AC(Off-grid) | ||||
| Apparent power | 33kVA | 55kVA | 110kVA | 165kVA |
| Rated power | 30kW | 50kW | 50kW | 150kW |
| Rated voltage | 400V | |||
| Rated current | 43A | 72A | 144A | 217A |
| THDU | ≤2%linear | |||
| Rated frequency | 50/60Hz | |||
| Overload capability | 110%-10 mins, 120%-1 min | |||
| DC (Battery and PV) | ||||
| Battery voltage range at Max. charge power | 450V-600V | 500V-600V | 500V-600V | 500V-600V |
| Battery voltage range | 352-600V | |||
| Max. charge power | 45kW | 75kW | 150kW | 225kW |
| Max. discharge power | 33kW | 55kW | 110kW | 165kW |
| General Information | ||||
| Protection degree | IP20 | |||
| Operating temperature | -25 °C~+55 °C | |||
| Cooling | Forced-air | |||
| Maximum altitude | 6000m (derate over 3000m) | |||
| Dimension (W/H/D) | 700/1660/600mm | 950/1860/750mm | 1200/1900/800mm | 1200/1900/800mm |
| Weight | 355kg | 610kg | 948kg | 1230kg |
Product packaging
