Atairac Efficient Cone Crusher Philippine Price
| US$60,000.00-700,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HPY
Output Size
Adjustable
Feed Opening
Based on Model
Chamber
Can Be Changed
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Object
Rock, Stone, Ores
Transport Package
Wrapped by Plastic Sheeting or Wooden Box
Specification
based on model
Trademark
ATAIRAC
Origin
China
HS Code
8474209000
Production Capacity
50 Set/Month
Product Description

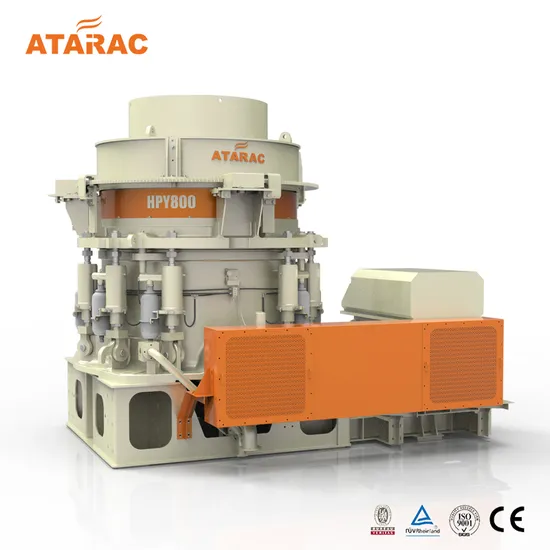

Introduction:HPY series mutil-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It aims at the high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. HPY cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate gear transmission system. Combined with one suitable crushing chamber from all optional and with PLC automatic control system, the HPY cone crusher could fully play its performance and advantages. Compared with related similar type crusher, HPY has advantages of larger production capacity, bigger crushing ratio, better end-products shape, lower power consumption, higher automation, reliability, easy operation, and lower wearing part cost, etc.
Feature: Laminating crushing, larger capacity, very good final products shape. Fixed main shaft, larger crushing force. The high-strength forging main shaft is super robust and durable. Hydraulic protection and chamber clearing system. Hydraulic motor adjusting system, reliable and quick. Best anti- dust system ensures the clean of lubrication system. PLC intelligent operating system. More than 90% spare parts can be changed with Metso, includeing mantle, bowl liner, mainshaft, etc.
Technical Parameter
| Model | Installation Power (kw) | 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 45mm | 51mm |
| HPY300 | 220 | 75-95 | 100-130 | 110-140 | 145-180 | 170-215 | 190-230 | 220-260 | 225-275 | 245-320 | 300-375 | 345-430 | |
| HPY400 | 315 | 105-140 | 135-170 | 180-225 | 215-275 | 250-320 | 275-345 | 285-365 | 315-425 | 350-480 | 400-540 | 455-615 | |
| HPY500 | 400 | 135-170 | 170-220 | 225-290 | 270-245 | 310-400 | 340-425 | 360-450 | 400-530 | 425-585 | 500-670 | 560-770 | |
| HPY800 | 630 | 240-335 | 315-420 | 375-500 | 420-540 | 465-590 | 490-725 | 545-790 | 585-920 | 670-990 | 765-1100 |
15%-30% higher than in open operation.
Cavity Selection
| Model | Cavity Type | Standard | Short Head | ||
| Minimum setting (mm) A | Feed opening(mm)B | Minimum setting (mm) A | Feed opening(mm)B | ||
| HPY300 | EF | 6 | 25 | ||
| F | 13 | 107 | 6 | 25 | |
| M | 16 | 150 | 8 | 53 | |
| C | 20 | 211 | 10 | 77 | |
| EC | 25 | 233 | |||
| HPY400 | EF | 6 | 30 | ||
| F | 14 | 111 | 6 | 40 | |
| M | 20 | 198 | 8 | 52 | |
| C | 25 | 252 | 10 | 92 | |
| EC | 30 | 299 | |||
| HPY500 | EF | 6 | 35 | ||
| F | 16 | 133 | 8 | 40 | |
| M | 20 | 204 | 10 | 57 | |
| C | 25 | 286 | 13 | 95 | |
| EC | 30 | 335 | |||
| HPY800 | EF | ||||
| F | 16 | 219 | 5 | 33 | |
| M | 25 | 267 | 10 | 92 | |
| C | 32 | 297 | 13 | 155 | |
| EC | 32 | 353 | |||
Standard Configuration
Packing & Delivery
About our company
