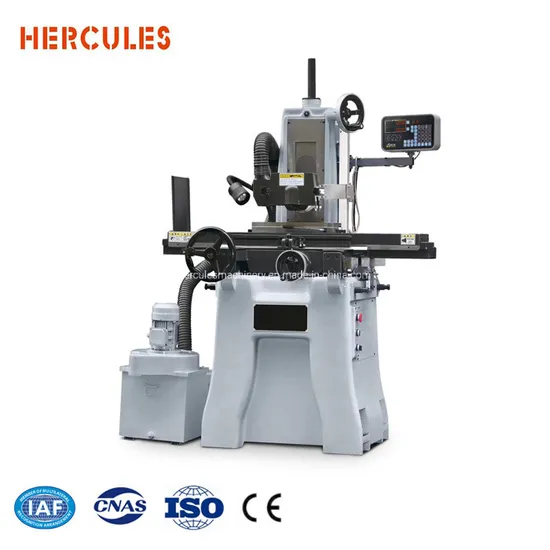

M618A High precision Taiwan spindle Rectificadora Surface Grinder Grinding machine
| US$4,200.00-7,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M618A
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Solid Wood Pallet
Specification
1700*1250*1900mm
Trademark
GrinEven or OEM
Origin
China
HS Code
8460190000
Production Capacity
3000 PCS/Month
Product Description
Advantage1. Reasonable structure and good rigidity.
2. Easy operation, labor-saving, and high-efficiency.
3. Either a permanent magnet sucker or electromagnetic sucker is available.
Application
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
| Specification | M618 |
| Table size | 150×457mm(6×18") |
| Maximum grinding length | 475mm(18-3/4") |
| Maximum grinding width | 160mm(6-1/3") |
| Distance Spindle to table | 350-400mm(6×12") customized up to 430mm |
| About feed | |
| Manual feed | 485mm(19") |
| Before feeding | |
| Manual feed | 180mm(7") |
| The manual feed per scale | 0.02mm(0.001") |
| The manual feed per revolution | 5mm(0.2") or 3mm(0.1") |
| Lifting feed | |
| Each scale handwheel feed | 0.005mm(0.0002") |
| Handwheel feed per revolution | 1mm(0.05") |
| Grinding wheel | |
| Wheel size (diameter×width×diameter) | 180mm(7×2/3×1-1/4") |
| Spindle speed | 60Hz/50Hz-3600/3000rpm |
| Motor | |
| Spindle motor | 1.5/2HP |
| Weight | |
| Net weight | 850kgs |
| Packing size | 1550×1150×1980mm(55×45×78") |
| Hercules Machinery Equipment Ltd. | |
