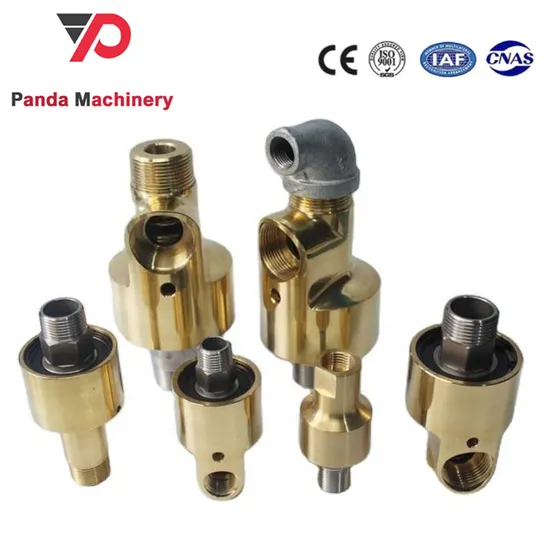

China Manufacturer Customized Rotary Union Different Size Hydraulic Rotary Joint

Product Description

Product Description China Manufacturer Customized Hydraulic Rotary Union Different Size Hydraulic Rotary Joint
Rotary joint refers to the pipe connecting device, and the connected pipe can rotate relatively.It can be used to transport gas, liquid, oil and other media.Compact design structure, flange connection, effective integration to customer equipment.The fluid medium transport pipeline and rotation, reciprocating movement or swing (rotation) move some Angle of equipment connected, not only to ensure the continuous flow of equipment, pipeline transfer fluid, but also to prevent the fluid medium collusion, leakage and external debris into the working medium.Rotary joint is a non-functional part of the machine, but its function has a great impact on the whole machine equipment and the whole factory.
Rotary joint rotary steam coupler hot water rotating union HS/HD jointRotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power. the technique of "disengaging"can achieve limitless dryrunning without medium pressurefull circulation design, without clastic and burr jambearing support, threaded swivel and easy installationRadial deep groove ball bearing, smooth operationBig export using labyrinth seal and protect the ball bearingsbalance type machine sealing, use silicon carbide material,under the harsh conditions, it still prolongs the service lifeAnti-corrosion anode aluminum shell
H series rotary joint is designed for cooling system, the advantages of small volume, light weight, the advantages of small friction torque, and uses the balance type sealing structure, friction group on the material according to different medium, choose different combination of various Bronze,CAR ,SIC to resist rust scale and other impurities on the influence of the sealing surface, and the sealing surface after finishing processing, surface mirror, more reliable sealing, long service life.The transfer media normally could be steam, water, thermal oil, hydraulic oil and coolant, as well as the air, vacuum and gas, etc.

Rotary joint rotary steam coupler hot water rotating union HS/HD joint Rotating Unions and Rotary Joints (also known as rotary swivels, rotary couplings) are precision mechanical devices used to transfer fluid from a stationary source, such as a supply pipe, into a rotating piece of machinery. Rotating Unions and Rotary Joints are used in numerous manufacturing processes to cool, heat, or transfer fluid (pneumatic or hydraulic) power. the technique of "disengaging"can achieve limitless dryrunning without medium pressurefull circulation design, without clastic and burr jambearing support, threaded swivel and easy installationRadial deep groove ball bearing, smooth operationBig export using labyrinth seal and protect the ball bearingsbalance type machine sealing, use silicon carbide material,under the harsh conditions, it still prolongs the service lifeAnti-corrosion anode aluminum shell
H series rotary joint is designed for cooling system, the advantages of small volume, light weight, the advantages of small friction torque, and uses the balance type sealing structure, friction group on the material according to different medium, choose different combination of various Bronze,CAR ,SIC to resist rust scale and other impurities on the influence of the sealing surface, and the sealing surface after finishing processing, surface mirror, more reliable sealing, long service life.The transfer media normally could be steam, water, thermal oil, hydraulic oil and coolant, as well as the air, vacuum and gas, etc.
General Description
Through bore slip rings (also known as "through hole slip ring") are slip ring with through bore, this series are designed for being installed with flange on a sleeve bracket, also they totally meet with continuous transmission of power and/or signal under 360 degree unrestrained rotations. This kind of slipring use hollow shaft that applies the best advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and maintenance free. Barlin Times standard through bore size could be from 12.7mm- 190mm are optional, the standard circuits are 6 rings, 12 rings, 18 rings and 24 rings are available, the current can be alternative from 2A-800A. Standardized & modularized design, we could fully customize the best suitable product according to the special requirement of customer in different applications.
Features:
1.Modular design & compact design.
2.Transmit various analog and digital signal.
3.Low wear and long work life time.
4.Compatible with data bus protocols.
5.360 degree continuous rotary power transmission or data signal. Option:
1.Current & Voltage
2.Circuits
3.Hollow shaft size, outer diameter and length
4.Work speed
5.Housing material and color
6.Protection degree
7.Lead wire exit direction
8.Lead wire length
9.Connector type
10.Signal and power transmitted single or together Application:
1.Radar, antenna, robotics.
2.Turn table, rotary sensor.
3.Engineering machinery equipment, cable wheel, test machine.
4.Packing machine, medical equipment.
5.Handling process control equipment.
6.Military equipment.
7.Wind turbine generator.
8.Emergency lighting machine, exhibition/display equipment.

Max. Speed:	100RPM
Max. Pressure:	32Bar
Max. Temperature:	280ºC
Media:	Steam, heat transfer oils, hot water
Specification:	Customer's demand

Circuits	18 circuits
Work Speed	100RPM
Work Temperature	-20ºC~+60ºC
Work Humidity	60%RH or higher
Voltage Rating	380VAC/DC
Current Rating	15A
Dielectric Strength	≥1000VAC@50Hz between each circuit
Insulation Resistance	1000MΩ@500VDC

Contact Materials	Silver to silver
Lead Wire Size & Length	AWG14 UL®
Housing Materials	Alluminum Alloy
Protection	IP54 or higher

Model	A	C	L	L1	L2	L3	N
HD-10	3/8	3/8	105	90	30	15	8
HD-15	1/2	1/2	115	95	35	17	14
HD-20	3/4	3/4	125	105	37	20	18
HD-25	1	1	135	110	40	20	23
HD-32	11/4	11/4	165	135	48	25	30
HD-40	1-1/2	1-1/2	170	138	50	25	35
HD-50	2	2	220	175	65	35	48
HD-65	2-1/2	2-1/2	265	215	78	40	62
HD-80	3	3	295	235	90	45	75

Detailed Photos
Rotary joint is a spherical sealing structure, self-supporting and external compensation design.
Relying on the spring to push the shell to move backward along the axial direction to compensate the seal wear and complete the seal isolation between the internal medium and the external air. Therefore, it needs reasonable installation and regular maintenance to ensure the use of products in the equipment
Fields of application
Rotary joints, with the adoption of spring loaded pistonstructure, give the sealing ring a constant pressure and thus maketight its attachment to the lower cap. The lower cap is linked byflange to the spindle nose of the dryer, and the piston remains stablewhile the lower cap rotates synchronously with the dryer, so thesealing ring can move to adapt the angle variation and eccentricity.
How to select the rotary joint?
1. One way flow type: the rotary joint is installed at both ends of the drum, the fluid enters from one end and discharges from the other end, without inner pipe.2. One way flow type: a rotary joint is installed at one end of the drum, at the same time, the fluid is introduced and discharged at this end, and the rotation of the inner pipe relative to the drum is static.3. Two way flow type (inner tube fixed): different from the previous type, there are different types of siphons in the drum to discharge the condensate. This type is mostly used for steam type.4. Two way flow type (inner tube rotation): this type is used for the structure that the inner tube is relatively fixed with the roller and runs synchronously with the roller. At this time, the fluid is led in by the inner tube and discharged by the outer tube.5.Two way flow type (inner tube rotation): a siphon is installed in the inner part of the drum which runs synchronously with the drum to discharge the condensate. This type is mostly used for steam type.
Rotary joint: It is a rotary sealing device that connects rotating equipment to the roller and is used to transport steam, water, heat transfer oil, coolant, hydraulic oil, air and other media.Medium: steam, water, heat transfer oil, coolant, air, hydraulic oil, etc.Uses: Widely used in papermaking, packaging, steel, rubber, plastic, textile, leather, printing and dyeing, chemical, food, printing, wind power, solar energy, engineering machinery and other industries.Mainly solve the phenomenon of running, emitting, dripping and leaking in the industry.
Cooperated Brands
Company Profile
Zaozhuang Panda CNC Machinery Co., Ltd. is an enterprise specializing in the production of specializing in manufacturing pulp and paper equipment Rotary Joints. We have own self-built factory to provide customers with the most competitive price; a professional technical team to provide customers with the most professional technical support; and the most complete after-sales service to support customer. With more than 30 years of experience, we have cooperated with more than 300 paper mills all over the world., as well as metal processing machinery products such as tools and mechanical accessories for all walks of life in the national economy. Our machines are very popular overseas and exported to more than 100 countries and regions, and our machines are loved and welcomed by customers,Have obtained CE, ISO, TUV, SGS, EAC and other certificates. We have more than 20 years of experience in supplying these machines to more than 100 countries, and our machines are loved and welcomed by customers at home and abroad. Our Advantages
Certifications
FAQ 1:How can I choose the most suitable Joints ?
A: Before offering you , we need to know the datas about :
Inner pipe diameter;
Diameter, length and width of the equipment;
Speed, pressure, temperature;
Connection diameter with the equipment;
Input and output tube diameter;
Flange size;
Working medium
2: What's your main products of your company?
A: We specialized in all kinds of joints,and can also do customiszed according to your requests. OEM ODM supplied.
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us at any time.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
100% Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7. What levell of series fo you provide?
--->Your inquiry will be replied within 24 hours.
8. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Video.
We can provide on-site training and commissioning Video.
We can Provide Spare parts replacement and repair service.
Give reasonable offers with the best quality.
9. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
10. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
11.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
12.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
