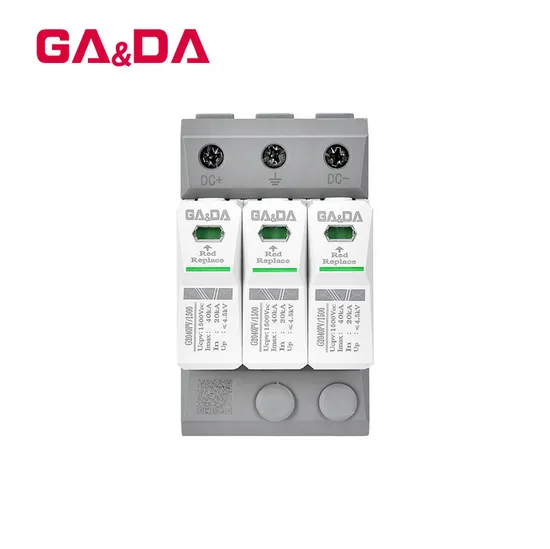

3p 1500V Surge Protective Device DC 40ka PV SPD Power Electric Surge Protector Surge Protection

Product Description

Product DescriptionSurge protection device to prevent lightning surge voltage in low-voltage electrical system or solar energy system (photovoltaic power supply system). These devices must be installed in parallel on the low-voltage distribution system or DC power supply system to be protected, and provide common and different modes of protection. Its installation location is recommended to be located at the front end of the household side of the distribution system or at both ends of the DC power line (solar panel side and inverter/converter side), and equipped with matching circuit breakers or fuses
Product Features
1. T2, T1+T2 surge protection devices are available for photovoltaic/low-voltage power system.
2. Module design, easy installation, and replaceable.
4. The color of the visible window indicates the running status, green indicates normal, and red indicates abnormal.
5. No leakage, no working current.
6. Remote signal or intelligent monitoring module (optional).

Type	G2040PV
Test standards	EN/IEC61643-31(Type 2 /Class 2/T2/Class C)
Max. PV voltage (d.c.) (Ucpv )	300V DC	500V DC	600V DC	800V DC	1000V DC	1500V DC
Nominal discharge current(8/20us)In	20kA
Maximum discharge current (8/20us)Imax	40kA
Total lighting current(8/20 µs) DC+,DC-→PE (Imax) Itotal	40kA
Voltage Protection Level Up	≤1.5kV	≤2.5kV	≤2.5kV	≤3.2kV	≤4.0kV	≤4.5kV
Response time ta	<25ns
Degree of protection	IP20
Range of operating temperatures	-40ºC~+80ºC
Failure indication	Green: normal Red:invalid
Approvals,certification	TUV/CB/CE/IEC/ROHS
Pole	2P	2P/3P	2P/3P	2P/3P	2P/3P	3P
Remote signal interface connection capability	Available
Protection Class	IP20

Product Parameters
New exterior and structural design
A brand new exterior structural design, novel and unique, with good contact performance and large flow capacity,
which is different from other ordinary products in the market.
The maximum lightning protection capacity of a single module can reach (8/20us) 80kA, (10/350us) 12.5kA A brand new color recognition system
A brand new color recognition system with a strip recognition system on the surface of the product,
which can facilitate customers to quickly distinguish the types of various products,Quality traceability system
Products can achieve visual tracking, and each product base is equipped with a QR code recognition system.
By scanning with a mobile phone, the factory test data, model, date, batch, etc. of each product can be traced,
strictly controlling the quality and consistency of each product. Innovative thermal release circuit breaker technology
No external detachment device is required, and the detachment device can be installed with reliable interruption,
achieving complete isolation and concealment after tripping,
and self extinguishing of the arc,
effectively avoiding the phenomenon of wire drawing New hot Plug and drop design
Replacement can be carried out without interrupting system operation.
Pressing the contacts on both sides of the module allows for easy insertion and removal.
It has a foolproof design, self-locking function, and is easy to maintainNew arc insulation board design
We have installed arc insulation plates between each phase and between the wiring connections, effectively preventing the occurrence of arc pulling and flying between phases, greatly ensuring the stability and reliability of the product, Remote recording function
Each product can add remote signaling terminals/intelligent monitoring modules as needed to measure and monitor the current/working status of each circuit, remotely record and display the operating status, and can be monitored through mobile phones or computers, Multiple choices to meet different installation environments
Different combination methods can be selected according to different power distribution systems,
with small product volume. Additionally, four wire products can be provided,
which can be used as two two two wire products Recommend Products
Certifications
Manufacturing Technique
Professional Electrical Equipment Laboratory
Our company attaches great importance to technological research and development, and strives to build an automated electrical equipment and digital production line base that enhances traditional industries through automation, gathering a highly skilled technical team; Committed to building a professional lightning protection electrical laboratory. Ensuring the stability and innovation of Gandian products.
---Lightning Impact Test Room: Conduct various waveform impact tests on lightning protection devices, such as 8/20, 10/350, and 1.2/50us;
---SPD safety laboratory: Conduct thermal stability and TOV fault tests, with a test current of 1A-300A;
---Environmental laboratory: salt spray, vibration, high and low temperature tests;
---Physical and chemical laboratory: material metallographic analysis, spectral analysis, RoHs analysis;
---Low voltage test room: leakage marking index, withstand voltage test, flame retardant level;
---Mechanics laboratory: pendulum impact, tensile force, pressure, torsion, hardness, and transportation vibration tests.
Specialized production process technologyOur company independently develops multiple advanced automatic production and processing lines, plastic injection molding lines,hardware stamping lines, and multiple assembly lines; Integrating automatic equipment such as automatic gluing, automatic soldering, automatic film pressing, transfer printing, laser marking, automatic detection and uploading of data, and automatic sealing and packaging into one; Form a fully automated production line, create a process technology that conforms to Gandian Lightning Protection's own technology, lean production management, and rigorous craftsmanship spirit, which runs through everylink of our production and manufacturing. Carefully control every production process, strictly implement every standard specification, and achieve controllable and traceable quality of each product.
