Water Juice Bottle Energy Saving Pet Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

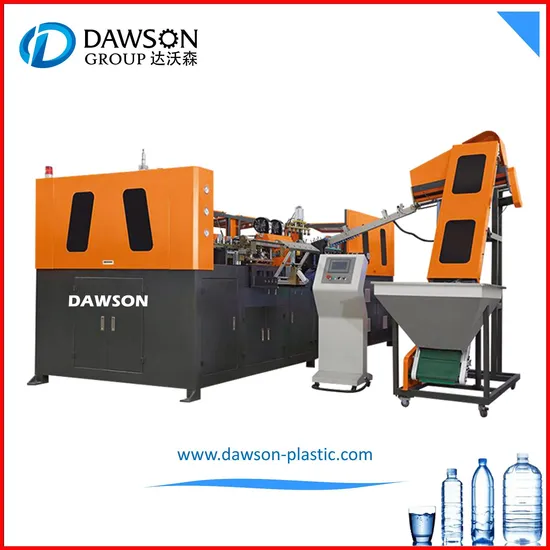

Water bottle PET blow molding machine
!! HIGH SPEED !!
YCQ Water bottle blow molding machine with 2~8 cavities is specially designed to produce water bottole, PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling. In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, YCQ plays a big role in hot filling package market.
Technical ParameterAutomatic Type Machine

Model	Item	YCQ-2	YCQ-4	YCQ-6	YCQ-8
Productivity	Depend on bottle design	2400-3000PCS/H	3500-4500PCS/H	5500-6500PCS/H	8000-9000PCS/H
Product type	Volume	0.1-2.0L	0.1-2.0L	0.1-2.0L	0.1-2.0L
	Body diameter	≤100mm	≤100mm	≤100mm	≤100mm
	Height	≤310mm	≤310mm	≤330mm	≤330mm
	Neck diameter	≤38mm	≤38mm	≤38mm	≤38mm
Mold	Cavity	2	4	6
	Mold thickness	240mm	240mm	240mm	240mm
	Mold volume	260*240*370mm	510*240*360mm	640*240*360mm	640*240*360mm
Main machine power	Electrical source power	380V/220V 50/60HZ	380V/220V 50/60HZ	380V/220V 50/60HZ	380V/220V 560/60HZ
		3Phase	3Phase	3Phase	3Phase
	Rated power	25kw	49kw	73kw	97kw
	Really use power	6.5kw	13kw	25kw
Air system	HP air compressor	1.6m³/min3.0Mpa	3.0m³/min3.0Mpa	6.0m³/min3.0Mpa	6.0m³/min3.0Mpa
	LP air compressor	1.0m³/min1.0Mpa	1.6m³/min1.0Mpa	2.0m³/min1.0Mpa	23.0m³/min1.0Mpa
	Air tank	0.6m³3.0Mpa	0.6m³3.0Mpa	1.0m³3.0Mpa	1.0m³3.0Mpa
	Air dryer	1.0m³/min3.0Mpa	2.0m³/min3.0Mpa	6.0m³/min3.0Mpa	6.0m³/min3.0Mpa
Cooling water	Water Chiller	3HP	3HP	5HP	8HP
Machine	Size(L*W*H)	1900*1280*1930mm	1900*1860*1930mm	4100*1400*1800mm	4100*2200*1800mm
	Weight	2000kg	3600kg	4200kg	5800kg
Preform unscrambler	Size(L*W*H)	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm
	Weight	500kg	500kg	500kg	500kg

Semi type machine:

		UNIT	YCQ-12	YCQ-8	YCQ-1500	YCQ-1-20
	Theoretical output	Pcs/h	500	900	1800	90
Product	Volume	L	5.0	2.0	2.0	20
	Max. height	mm	360	360	360	550
	Max. diameter	mm	120	105	105	300
Mould	Number of cavities	/	1	2	4	1
	Mould piate dimension(L*H)	mm	490*470	490*405	490*405	620*620
	Mould thickness	mm	250	220	220	380
	Mould opening stroke	mm	220	180	180	380
Electrical	Power	/	220_380V/50_60HZ	220_380V/50_60HZ	220_380V/50_60HZ	220_380V/50_60HZ
	Total power	KW	11	11	21	36
	Heating power	KW	10	10	20	37
Machine	Main body dimension(L*W*H)	m	1.5*0.65*2.0	1.5*0.65*2.0	1.5*0.65*2.0	2.1*0.75*1.6
	Main body weight	kg	600	550	550	900
	Pre-heater(L*W*H)	m	1.5*0.65*1.5	1.4*0.65*1.5	1.8*0.65*1.5	2.7*0.7*1.6

Machine Features
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: Less than 0.3percent.
Machine Parts

Blowing Cylinder	Festo	Germany
Moulding Closing and Opening Cylinder	Festo	Germany
Value	Festo	Germany
Revolve Cylinder	SMC	Japan
PLC	Mitsubishi	Japan
Touch Screen	Hitech	Taiwan
Switch	Omron	Japan

Our service Installation service
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.The sample service
1.We can send you the video of the running machine.2.You are welcome to come to visit our factory,and see the machine running.Customized service
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.After-sales service
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time. 4.We provide one year warranty5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party.9. Good after-sale service offered, please get back to us if you got any questions.Quality Control
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
