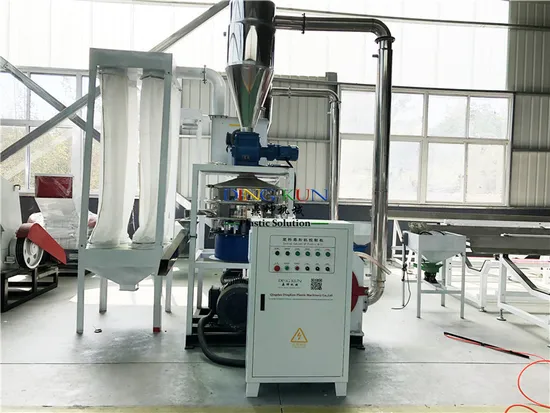

PVC Milling Machine/ Plastic Miller/Pulverizer/ Plastic Grinding Machine (SMF-500)

Product Description

SMF Plastic Pulverizer
Pulverizermaterial would be conveyed by the feeding device into milling chamber evenly, and be impacted by highspeed rotor. The rotor consists of several sections of discs and several blades. Material would be sheared, impacted and rubbed into powder. Qualified fine powder would go with air flow into product collector, while coarse powder would go back to milling chamber forfurther milling.

Performance Features
1.When the rotation speed of rotor is fixed, it can mill various material of Moh's hardness < 2~3, especially for organic product processing and special material milling.
2. It can connect with heater which can do the drying during milling process; it can connect with cooler to do milling under low temperature, for the milling of heat sensitive material.
3.Rotor has vertical shaft. Product size can be adjusted by the change of classifying pin quantity.
4.It can create different milling power by the adjustment of rotor speed or the change of different rotors. Wide application.
5.Design for quick disassembly and maintenance. Convenient maintenance, easy operation and cleaning.
Product Description

Disc-type
Item Model	MF400	MF500	MF600	MF800
Diameter	400mm	500mm	600mm	800mm
Motor power	30kw	45kw	55kw	75kw
Blade material	SKD-11 or D53	SKD-11 or D53	SKD-11 or D53	SKD-11 or D53
Capacity	100kg/h	200kg/h	250kg/h	350kg/h

Rotator-type
Item Model	MF400	MF500	MF600	MF800
Rotary blade	18	24	28	40
Fixed blade	10	12	15	20
Motor power	30kw	45kw	55kw	75kw
Capacity	100-150kg/h	150-250kg/h	250-350kg/h	450-500kg/h

Advantages High speed Wood / Plastic Pulverizer Machine :
High speed Wood Pulverizer Machine characteristics: high-quality tool is easily to replace, long life, low power consumption, high output, simple structure, easy installation.
High speed Wood Pulverizer Machine the host has the wind and water cycle cooling system, automatic feeding device, dust removal equipment, aircraft high degree of automation, effective, significantly reduced labor intensity.
Detailed Photos


Packaging & Shipping
Company Profile
1.We will provide the Feasibility Analysis Report for the wood-plastic project.
2.We will provide the model selection and technical parameter for wood-plastic machinery.
3.We will provide the design for the plant and electric power accounting for the facilities.
4.We will provide the design for wood-plastic formula according to the product requirements.
5.We will provide the technology of wood-plastic product surface treatment
6.We will provide technique training for operator.
7.We will provide solution for the practical problem during the production.
8.We will install and test the machine for free.
9.We will provide turnkey project to customers.
FAQ
1. Quality Control Management
Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control
Q: Do the QA/QC inspectors work independently from the production line?
A: Yes
Q:How many QA/QC inspectors in total?
A: 4
Q: Number. of Employees in Each Production Line
A: Supervisor 1 ; No. of Operators 29 ;No. of In-line QC/QA 2

2.Supplier Management
Q:Does the company have a supplier assessment procedure?
A:Yes
Q:Does the company have an updated list of approved suppliers?
A:Yes
Q:Does the company establish and implement a standard procedure for purchasing contract review and approval?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, with written standard procedures
Q:Does the company keep its supplier assessment reports?
A:Yes, assessment reports are available for the last 1-3 years
Q:Are the company's purchasing documents sufficient to ensure product safety control and their customers' requirements?
A:Yes, the purchasing document includes all the information required
Q:Is there a procedure to conduct random product inspections after final packaging?
A:Yes, with clear standard and written inspection records
Now we have machines in stock,sincerely invite you to vist our factory! Also you can contact me for machine's running video.
