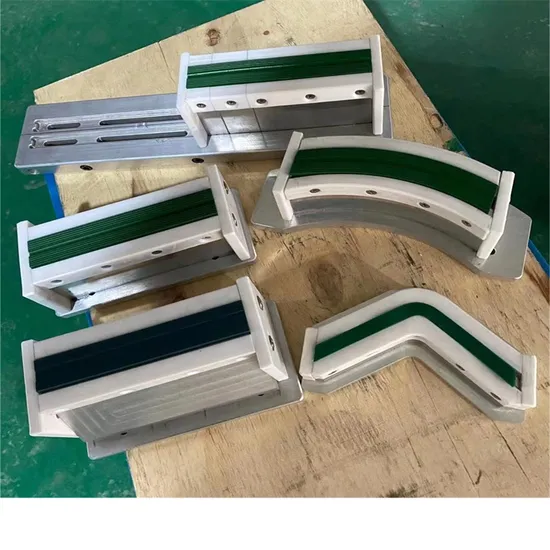

Bayrich High Frequency Conveyor Belt Cleat Sidewall Welding Mold

Product Description

Bayrich High frequency conveyor belt cleat sidewall welding mold
★Detail:The sidewall,cleat conveyor belt can be divided into various bulk materials for continuous transportation at any angle of 0~90°, and can be transported at large inclination angles. The sidewall cleat conveyor belt is widely used, has the characteristics of large transportation capacity and low maintenance cost, and can solve the problem of that ordinary conveyor belts cannot reach the transport angle.
Conveyor belt high-frequency welding mold is used with high-frequency welding machine, which is specially used for welding sidwall,cleat, guide bars, etc. on industrial belts.
★Features:
1.good material
Bayrich mold is made of the best high-frequency mold special alloy aluminum, which has fast heat transfer and good electrical conductivity.
2.Easy to operate
Quick and easy to use, the products produced are beautiful in appearance and high in efficiency.
3.Personalized customization
High-frequency molds are customized on demand, with various styles, and high-frequency special molds of different specifications are made according to products.
Combination type, integral type. high. The length and the width of the skirt can be customized as required
4 .Guide high frequency strength
The high-frequency mold material is aluminum strip, which has the advantages of no rust, light weight, and high frequency conduction.

Model:	HF-10KW
High frequency power:	10KW
Power supply voltage:	380V 50/60Hz
Frequency:	27.12MHz
Input power:	18KVA
Rectifier:	Silicon Diode
Oscillator:	E3069
Maximum pressure:	500KGS
Electrode spacing:	150MM
Upper electrode size:	400x500mm can be customized
Lower electrode size:	500x800mm can be customized
Welding time:	0-10S adjustable
Capacity:	4000 times/8H
Pressurization method:	pneumatic drive

Detailed PhotosProduct Description
★Bayrich have verious conveyor belt fabrication machine .Welcome to contact with us.
