Factory Price Single Mode Simplex Sc/APC-Sc/APC Fiber Optic Patch Cord 5%off

Product Description

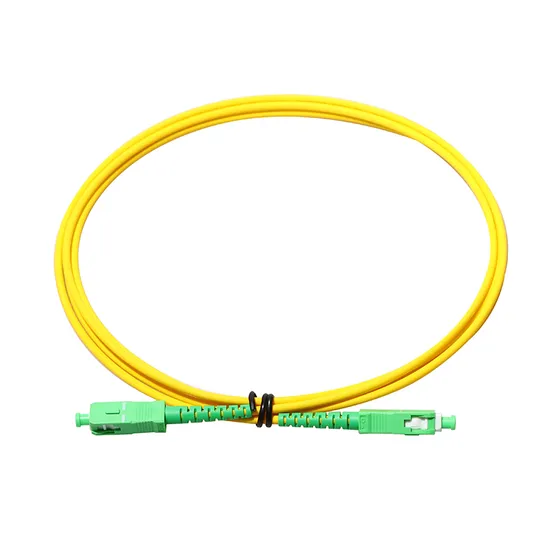

Fiber Optic Cable Single Mode 9/125 Simplex SC/APC-SC/APC Fiber Optic Patch Cord
1.Fiber optic patch cord is available in both singlemode and multimode versions.
2.Both singlemode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
3.These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
APPLICATION
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Medical
FEATURES
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
PRODUCT PARAMETERS

Mode	Single mode		Multimode
Polish	UPC	APC	PC
Insertion Loss	≤0.30dB	≤0.20dB	≤0.20dB
Return Loss	≥50dB	≥60dB	≥30dB
Test Wavelength	1310/1550nm		850/1310nm
Durability(500 Matings)	≤0.2dB
Operating Temperature	-40ºC~+60ºC
Storage Temperature	-45ºC~+85ºC
Fire Resistant	IEC 60794-2-30
Standards-Compliant	ROHS,IEC and GR-326

Fiber type	Single mode:	(1)9/125-G652D	(2)9/125-G655	(3)9/125-G657A,G657A2	(4)9/125-G657B3
	Multimode:	(5)50/125-OM2	(6)62.5/125-OM1	(7)50/125-OM3	(8)50/125-OM4	(9)50/125-OM5
Fiber Brand	YOFC, Corning, Sumitomo
Connector	SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
Cord type	Simplex ,Duplex
Cable diameter	0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
Cable jacket	PVC, OFNR, LSZH, OFNP
length(M)	0.5m,1m,2m,5m,10m,25m,50m,100m…Customized

Quality Control System
Company Profile
Shenzhen DYS Fiber Optic Technology,The leading company in developing and manufacturing advanced fiber optic products,mainly offer below:
Fiber optic cable
CPRI outdoor cable assemblies
MPO/MTP series products
Standard fiber optic patch cable&pigtail
Fiber optic PLC Splitter
Fiber optic Fast Connector
FTTH box
DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.
Over 3500 square meters and more than 18 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.
The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.
All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

FAQ
1. How many staff's we have?
Answer: About 200 well-trained staff and engineers.
2. When our company be established?
Answer: We started from year 2008.
3. What's our main products?
Answer: DYS dedicates to the developing, production, marketing of the Fiber Optic Cable,
Indoor/Outdoor Patch Cord, Splitter, Adapter, Attenuator, and so on.
4. What is the area of the factory?
Over 3500 square meters
More than 18 non dust productions lines in total
4 production lines for Fiber Optic Cable
2 high standard MPO/MTP Jumper assembly lines
8 production lines for standard Jumpe
4 PLC Pplitter production lines
5. What certificate we have?
Answer: ISO 9001: 2015, RoSH, CE, High and New Tech Enterprise Certficate.
