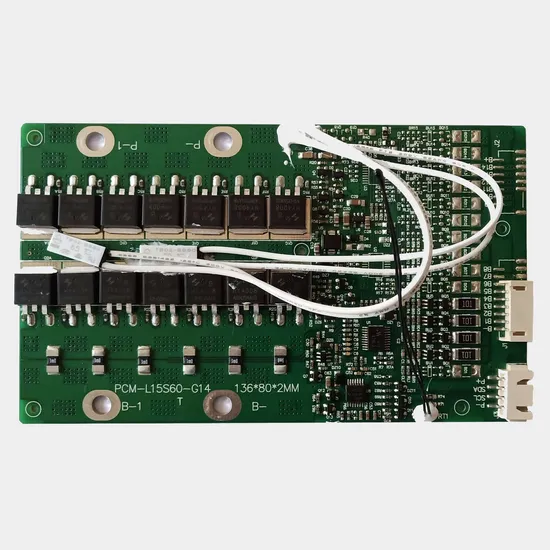

Shenzhen Smartec PCBA 15s 40A 50A 60A Lto LiFePO4 BMS for Li-ion Battery

Product Description

iFePO4 Battery/Li-ion battery circuit board BMS/PCM/PCB Board 1. True lithum battery pack BMS factory
2. Supply OEM/ODM and custom service
3. High quality with smart balance function
4. Wholesale price
5. ISO9001/ISO14001/CE/ROHS certificates
6. Fast delivery
Production Description

Shenzhen Smartec Technology Co.,LTD
PCM Specifications (15S) LiFePO4 Battery Packs
Model:PCM-15S60A-E92
Available for 1-4 series battery packs, working current adjustable!
No.	Test item		Criterion
1	Voltage	Charging voltage	DC: 24V 3.6/Cell
		Balance voltage for single cell	3.6±0.025V
2	Current	Balance current for single cell	36±5mA
		Current consumption	50μA
		Maximal continuous charging current	60A
		Maximal continuous discharging current	60A
3	Over charge Protection	Over charge detection voltage for single cell	3.75±0.025V
		Over charge detection delay time	0.5S-1.5S
		Over charge release voltage for single cell	3.55±0.050V
4	Over discharge protection	Over discharge detection voltage for single cell	2.20±0.080V
		Over discharge detection delay time	10mS-150mS
		Over discharge release voltage for single cell	2.70±0.100V
5	Over current protection	Over current detection voltage	100±25mV
		Over current detection current	300±20A
		Detection delay time	0.5-1.5S
		Release condition	Cut load
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load
7	Resistance	Protection circuitry(MOSFET)	≤50mΩ
8	Temperature	Operating Temperature Range	-20~+70ºC
		Storage Temperature Range	-40~+125ºC
		Temperature Sensor	75ºC

Our Advantages for BMS
1. Complete Function: Detect and protect the battery from: over-charge, over-dicharge,
over-current, short-circuit,
temperature detecting protection, auotmatically voltage balance function.
2. Build with high end electronic components (High End IC and MOSFET ) ,
3. Simple structure design will let it have more stable quality working performance ,
4. Flexible application ( it can be used for less series battery by leaving some connection pins at empty status ),
5. Full set of protection measures let it works well
6. Without any infulence from external unexpected accidents.
About your products, just tell us the relative voltage/ cells/ current A or equipment etc,
we will help to recomment the most suitable products for you. or we design for you!
Similar products (1~35 series)
Product Features: 1. Have the Basic Functions of a normal battery protection circuit:
2.Have more Intelligent functions to monitor the batteries :
How to produce?
Certificates:
who we are?
A great Team to support you high quality products, fast delivery time, good after-sales services!
Our Services 1.after sales services
2.OEM,ODM,Customized Design
3.We can provide 24 hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'needs. We take time to listen to your unique business needs and then set out to surpass them .
Can provide variouse capacity and size is per your requirements.
Packaging & Shipping Packing:
Inner packing:Vaccum packing/Plastic bag.
Outer packing:Standard carton packing or packing per customer's requirements.
Delivery type:by air such as TNT,UPS,FEDEX or by sea ,just depend on your convenient.
Payment:L/C,T/T,Western Union,PAYPAL etc.
