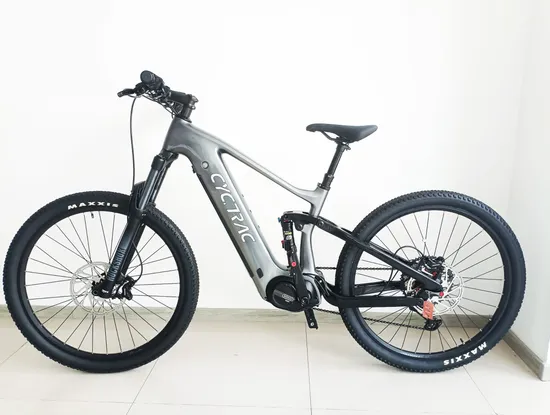

High-Performance Full Suspension Carbon MID Drive Electric Mountain Bike for Adventurers

Product Description

Product Description

Bike Model	EB-03
ConfRev	M600+48V15A
Frame SizeFork	29(27.5)×16"(18")
Bike Color	DarkGreen / DarkGrayBlack / RedBlack / BlueBlack, HolographicBlack
Net Weight	24.7KG
Frame	EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55,Gloss+UV laser decals
Handelbar Sets	RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm
Seat post	KS adjustable lifting with hydraulic, Remote,31.6**395*125mm
Fork	ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost
Head Sets	Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever	SHIMANO DEORE/M6100-12S
Rear Derailleur	SHIMANO DEORE/M6100-12S
Cranksets	Matching with Mid Motor, 38T
Cassettes	SUNSHINE-12S,11-50T
Chain	SUMC-12S
Brake	RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
Hub	RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim	RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke	SHUNJIU, Circular 14G
Tire	MAXXIS, CROSSMARK, 29/27.5×2.25"
Grips	Circular 22.2×120mm, PU leather&locking Ring
Saddle	RS, Comfortable and Thickened for MTB
Pedals	RS, Alu alloy CNC with Bearings for MTB
Motor System	Bafang Mid, M560, Mid, 48V500W
Max Torque	120 N.m (Peak 140N.m)
Speed Limit	25KMh (max 45KMh)
Pedal Sensor	Torque+Cadence
Battery	Samsung 21700 Li-ion 720Wh, 48V15A
Endurance	130-150KM (pedal assist)
Charging Time	8-9 Hours
Charger	2A, DC2.1
HMI	Bafang, LCD digital, 0-5 Modes
Waterproof	IP X5
Max Load	150 KG

Company Profile Galaxy Power is a leading professional electric bicycles manufacturer in China, especially over high performance carbon fiber electric mountain bikes.
Our R&D team is made up of engineers specialized in the industry for over 10 years, and have established a great system from R&D, producing management, quality inspection, to customer services, which give us a strong technical capability to ensure the high quality of our product and meet variable demands from different customers, and support OEM, ODM services.
Our plants are delivering over 150,000 units of bikes every year to customers from all over the world .
Our biggest advantage is the whole lifecycle services to our customers which will address your after-sale concerns.
Be our business partner, and you'll have our full support and cooperation.

Certifications
FAQ
1. Q: Can I get sample and how long it will take?
A: Yes, we could supply sample for quality check, it will take 7 days to prepare the sample
after payment. 2. Q: Do you support OEM? A: Yes, we support OEM with your own brand, and normally MOQ is 100pcs. 3. Q: What is the payment terms? A:We accept 30% payment by T/T in advance and 70% balance payment by T/T before shipping. Other payment terms can be negotiable. 4. Q:What's shipping methods do you support? A: By sea, air or express, the terms we can accept FOB, CIF, DDP, DDU and so on. 5. Q: How does your factory carry out quality control? A: We attach great importance to quality control.Every part of our products has its own QC.We can take the photos and videos to you.
