China Customized Aluminum Casting Machinery Foundry Gravity Die Casting Machine

Product Description

Product Description
Product Describition :
0-90°tilting gravity casting machine, it uses for pouring aluminum ,copper or brass products for auto parts or others foundry company.. Below are our gravity casting machine photos:
Detailed Photos
We use YUKEN brand solenoid valve and customized big brand oil cylinder for gravity casting machine , high quality oil tube. Make sure the casting machine quality is high for our customer. Packaging & Shipping

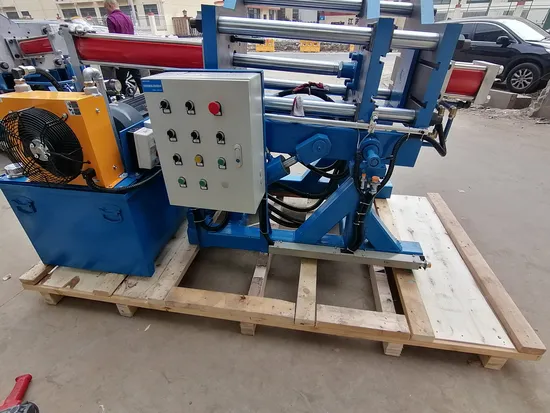

Gravity Casting machine aluminum casting machine foundry machine package:
Product Parameters
Our gravity casting machine have both manual and automatic function.
Our gravity casting machines are accept customized .
Our gravity casting machine mainly use in aluminum / copper casting factory. such as auto parts. It is also can produce casting parts with sand core.
Gravity Casting Machine type:

Parameter / Model	JJ-4040	JJ-6045	JJ-8050	JJ-1080
Mold plate Max.size	600*400mm	800*450mm	1010*500mm	1300*900mm
Mold Max.installation size	400*400mm	600*450mm	800*500mm	1000*800mm
Mold plate thickness	50/50/50mm	60/70/60mm	60/70/60mm	70/mm
The Max. distance between two mold plate	600mm	700mm	700mm	700mm
The Min. distance between two mold plate	200mm	200mm	300mm	300mm
Tilt angle	0-90°	0-90°	0-90°	0-90°
Tilt speed	Manually adjustable	Manually adjustable	Manually adjustable	Manually adjustable
Equipped with two channels of temperature control instrument	Digital display	Digital display	Digital display	Digital display
Equipped with a two - way cold air system	solenoid valve	solenoid valve	solenoid valve	solenoid valve
Power	AC 380V 50/60Hz	AC 380V 50/60Hz	AC 380V 50Hz	AC 380V 50/60Hz
Rated power of hydraulic station	5.5KW	7.5KW	7.5KW	11KW
Hydraulic system pressure/flow ratingL/min	15Mpa/21	15Mpa/21	17Mpa/27	19Mpa/47

We are also a casting automatic production line manufacturer, we have gravity casting unit and turntable gravity casting production line , all use robobt to pouring ! It is easy to operate and save labour. increasingly increase prodcution ! and safe!
1.Gravity casting automatic production line
Advantage :
-14 sets gravity casting machines, large production for foundry company.
-Every 5-7minutes one circle pouring (according to product cooling time to set ),
- One robot pouring , continous pouring( can be 24 hours working )
- One 11KW hydraulic station ( power saving ) for full production line
- rotary round turntable , diameter: 10M
- Just need 1-2 workers to operate( save labour)
- It also can come true robot pick up products, can according to customers'
need to make( come true unmanned automation )

2.RobotIc gravity casting Unit
Advantage :
- Four or six sets gravity casting machines
- Every 5 minutes one circle pouring (according to product cooling time to set ),
- One robot pouring , continous pouring( can be 24 hours working )
- One 5.5KW hydraulic station ( power saving ) for gravity casting unit
- Just need 1-2 workers to operate( save labour)
- can pouring product with sand core,
We have our own robot pouring system, which we have gotten the patent and
software copyrights Certification.
Gravity casting automatic production line Photos :
Robotic gravity casting Unit photo:
Company introduction: We are a machine and automatic production line manufacturer in China. Mainly for metal and foam products equipment . Such as aluminum or brass gravity casting production line ,aluminum or brass gravity casting unit, PU foam products production line , gravity casting machine, high pressure PU foam machine ...., all our automatic production line with robot pouring , SIEMENS PLC programming, robot on line tracking pouring. We have our own patent and software copy rights. we have more than 6 years experience, with experienced team . Our most customers are China mid or big companys , we have our own export rights. With high quality and best price products, we belive we can have a good cooperation.
Our company Gravity casting automatic production line and gravity casting unit with our own patent and software copyrights certification:
Lead time : 15-30 days after receive the deposite by T/T ( for single gravity casting machine) , 90days for production line .
Payment term : 50% deposite by T/T, 50% paid before delivery

Installation :
For single gravity casting machine, we can teach how to install it by video or phone.
For gravity casting production line, once the equipment reach customer's factory, we will arrange the workers to customer's company to install,test ,training .
