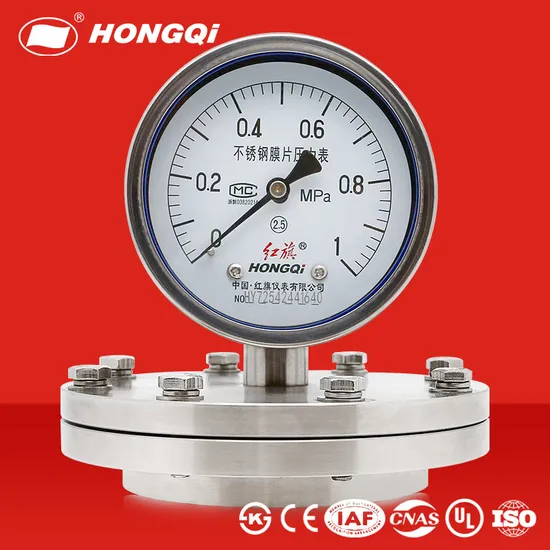

Ypf - 100mf: The All - Purpose Universal Diaphragm Pressure Gauge

Product Description

Ypf - 100mf: The All - Purpose Universal Diaphragm Pressure Gauge
This gauge is suited for measuring the pressure of all kinds of liquid with some corrosion, nonsolidfied or non-crystallized.
This gauge is made up of the measuring system ( invole connector,flange and diaphragm ), gear setting, point setting and outer case. When the service medium pressure act on the flexibillty parts ( diaphragm), and make it moving, with the stick help, sending and making it bigger, then the pointer point it out on the dial.
Accuracy class: 2.5.
Environmental condition: -40ºC~+70C, relative humidity is no more than 90%.
Temperature effect: when the environment temperature deviate from 20 + 5C, the additional error is no more than 0.04%/C.
Working positon: installed vertically.
Ingress protection: IP64.
Main Technical Data
Scale range, accuracy class and weight
FAQ:
Q: Are you trade company?
A:No , we have over 700 staffs in our factory which has 28 years professional production experience.
Q:Can you do OEM services?
A:No problem.
Q:Are you able to provide customized service for non-standard applications?
A:Yes, We have a professional R&D team can customize dial, thread, case....based on customer requirements.
Q:Do you have technical drawings or data sheets of your instruments?
A:Yes, we can supply upon customer's request, please contact with the sales.
Q:How about the delivery time?
A:The delivery time is 10-45days depends on the products type and quantity.
Q:Do you inspect the products before shipment?
A:Our QA department will have 100% inspection before shipping.
Q:What is your warranty?
A: 1Year warranty.
Please feel free to send inquiry to us for more details of this product or other products in our showroom!
