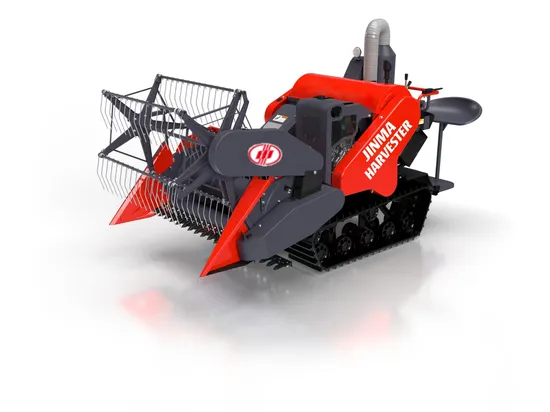

Small diesel engine Crawler type combine harvester 4LZ-1.0B

Product Description

Cultivate Your Dream
About US Started in 1959 A national backbone agriculture machineries manufacturer Business of tractor manufacturing was started in 1969 (a history of nearly 60 years) Under Jiangsu Yueda Group Co., Ltd. A state-holding enterprise Main of the tractor production enterprises Product export to North America, Europe, South America, Africa, southeast Asia and the Middle East area about hundred countries and area, The export number is top one of same industry in china. The tractor Was voted as main cultivating international famous brands by Jiangsu department of commerce Company profile
JINMA tractor is one of the world's most popular tractor brand. Mainly including tractors covering 20-260HP, Product exporting to more than 90 countries and regions in North America, Europe, South America, Africa, Southeast Asia and the Middle East, the amount of export delivery value has been among the top of same industry in China for many years.JINMA has strong capacity in developing and designing products and perfect quality management system, well-equipped production equipment, owning pre-processing cathodic electrophoresis production line, final assembly line, and flexible processing line composed of Germany, Italy imported CNC, laser cutting machine and welding robotconsisting of intelligent welding production line. Have experienced technical and management person, our products are novel design and durable in use. Our JINMA tractor has its own intellectual property rights; the products have passed CE certification,EPA certification and get the patent. Insisting on high quality stands, advanced technology and rational management, we win a good reputation among our worldwide customers.
Product Description
Feature introduction
. Self-designed full gear transmission box, high transmission efficiency, reliable quality. Direct Gear Drive with Clutch, No pulley, No belt.
. With steering,cutting table lifting and brake handle control system,it is efficient and safe
. 350mm width crawler, allows larger ground contact area, can work in muddy fields at 30cm depth
. Retractable feeding into the roller, feeding evenly without blocking
. With sieve in grid type, high-efficient and thorough threshing, less grain loss in straw outlet.
. With larger fan and winnowing roller, more accurately grain screening; With air outlet guide pipe, keeps operator away from dust

Model name	4LZ-1.0B
Type	Crawler type,riding type
Body dimension(LxWXH)(mm)	2900x1380x1650
Net weight(kg)	725
Header width(mm)	1100
Mini ground clearance(mm)	215
Average ground pressure(Kpa)	9.0
Rated feed rate(kg/s)	1
Gears	1.2.3.0.-1
Working speed m/s	0.6-1.5
Productivity(hm²/h)	≥0.06
Fuel consumption(kg/hm²)	≤30
Engine model	1100FE Diesel
Engine type	Vertical single cylinder, 4-stroke,force air-cooled, direct injection
Rated Power(kW)	9.5
Rated speed (r/min)	3600
Starting system	Electric start
Header type	horizontal
Header lifting system	Mechanical hydraulic system
Cutter assy quantity	2 groups
Auger type	Telescopic type Spiral finger raking
Reel type	Eccentric spring gear type
Reel diameter(mm)	730
Reel quantity(pcs)	5

FAQ 1. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.What can you buy from us?
Farm tractor; Farm implements ; Farm equiment ; Spare parts.
3 What services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EURO;RMB;
Accepted Payment Type: T/T,L/C,
4.Warranty Regulation of Product Quality
12 months warranty period. The starting date depends on service policy.
