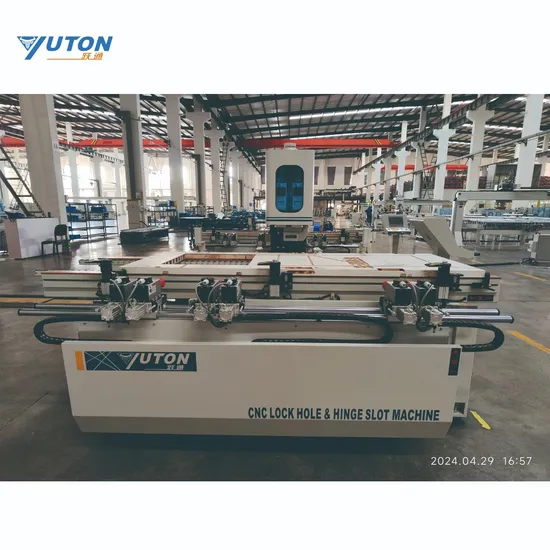

CNC lock hole and hinge slot machine MDK4120D
Function:
This machine works for all kinds of lock-holes, lock-slots, lock side-steps and hinge-slots on door leaf at one working cycle.
Lock-hole & lock-slot processing
Hinge slot processing
Optional device:
1. Hinge motor tilting device (for drilling anuba hinge hole)
2. Hinge corner square and screw hole drilling motor assembly
3. Hinge interpolation for concealed hinge
4. Door frame clamp device (to process lock & hinge shape on door frame)
5. Extra hinge motor assembly (to make more than three hinges)
6. Worktable width automatic adjustment
7. Max working length 3m
Technical specification:
Working length: 1800-2400mm
Working width: 600-1100mm
Working thickness: 30-80mm (only can do "down open" hinge for 60-80mm thick workpiece)
Hinge motor power: 3x0.4Kw
Lock-slot motor power: 3.7Kw
Lock sidestep motor power: 0.4Kw
Lock-hole motor power: 2*1.5Kw
Max moving speed of tool: 8m/min
Overall size: 2740*2270*1620mm
Wooden case size: 2800*2290*2060mm
(One 20GP container can load two sets of MDK4120D)
Weight: 1800kg
Voltage: 380V, 50HZ, 3phase.
Tool specification:

Name	Size of tool blade	Size of tool shank	Qty
lock-slot tool (Overall solid carbide)	Ø18*110	Ø16*50	1
lock-hole tool (blade insert carbide and steel body)	Ø10*80	Ø12.7*30	1
lock-hole tool (blade insert carbide and steel body)	Ø22*80	Ø12.7*30	1
lock-sidestep tool & hinge screw hole tool (blade insert carbide and steel body)	Ø3*15	Ø12.7*30	1
hinge tool (blade insert carbide and steel body)	Ø12.7*Ø12.7		3
