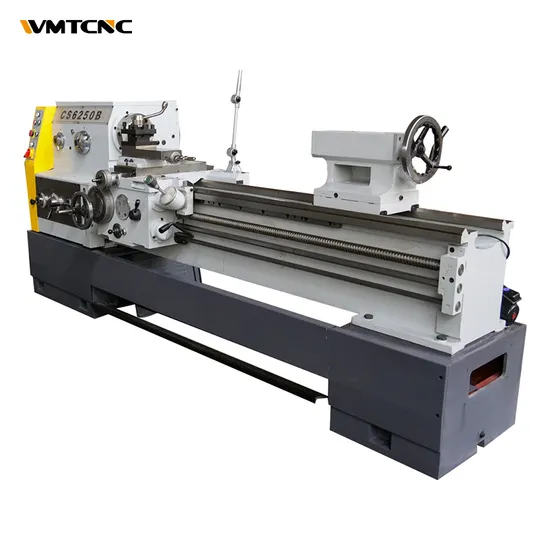

500 mm diameter CS6250C universal manual lathe machine for sale

Product Description

Product Description
Machine Features:
1. CS6250C horizontal heavy duty metal engine lathe machine with CE;
2. Perform internal and external turning, taper turning, end facing, and other rotary parts turning;
3. Threading Inch, Metric, Module and D.P.;
4. Perform drilling, boring and groove broaching;
5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose;
8. Power supply of different voltages (220V/380V/420V) and different frequencies (50Hz,60Hz) are available.
Main specification :

SPECIFICATIONS		UNIT	CS6240		CS6250/B	CS6266/B		CS6250C	CS6266C
Capacity	Max.Swing dia.Over bed	Mm	Φ400		Φ500	Φ660		Φ500	Φ660
	Max.Swing dia.In gap	Mm	Φ630		Φ710	Φ870		Φ710	Φ870
	Max.Swing dia.Over slides	Mm	Φ220		Φ300	Φ420		Φ300	Φ420
	Max.Workpiece length	Mm	1000/1500/2000/3000
Spindle	Spindle bore diameter	Mm	Φ52		Φ82			Φ105
	Type of spindle nose	No	CS6240:ISO 702/III NO.6 bayonet lock, others:ISO 702/II NO.8 com-lock type
	Spindle speed	Rpm	24 steps 9-1600			24 steps			12 steps
						8-1400			36-1600
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	Mm	Φ75			Φ90
	Max.Travel of quill	Mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D.Size	Mm	25X25
Feed	Max.X travel	Mm	145
	Max.Z travel	Mm	320
	X feed range	Mm/r	93 kinds 0.028-6.43					65 kinds 0.063-2.52
	Z feed range	Mm/r	93 kinds 0.012-2.73					65 kinds 0.027-1.07
	Metric threads	Mm	48 kinds 0.5-224					22 kinds 1-14
	Inch threads	T.P.I	48 kinds 72-1/4					25 kinds 28-2
	Module threads	Πmm	42 kinds 0.5-112					18 kinds 0.5-7
	Diametricpitch threads	T.P.I.Π	42 kinds 56-1/4					24 kinds 56-4
	Weight	Kg	1795/2050	2050/2100			2400/2600	2100/2300	2200/2400
			2250/2450	2300/2500/2900			2800/3000	2500/2900	2600/3000

Standard Accessories	Optional Accessories
3-jaw chuck (325mm)	Quick change tool post
4-jaw chuck (400mm)	Turning tools
Face plate	Leadscrew cover
Steady rest	Chuck guard
Follow rest	Tool post cover
Splash guard	Digital readout system
Stand	Taper turning attachment
Halogen work lamp	One piece casting stand
Toolbox & tools
Coolant system
Foot brake
Five position carriage stop

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
