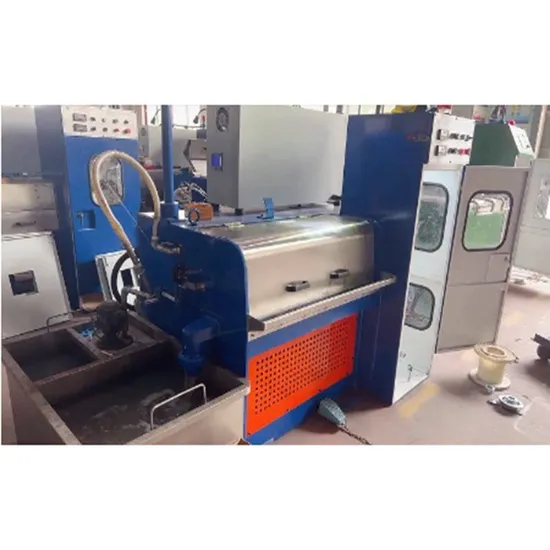

Outlet Wire 0.12-0.45mm Extremely Wire Drawing 24 Dies Super Fine Copper Wire Drawing Machine

Product Description

Application
This machine is specially used for drawing wire 0.04-0.15mm. The finished wire is wound by a plastic bobbin. Adopting four pieces of capstan, each one has 11 layers. The last layer of capstan was used to fix the speed. The loading and unloading of the wire drawing capstan is fixed in a conical pressing form, which is easy to install and unload.
Feature
(1)Wire Quantity: 1 wire
(2)Max.Inlet wire: 0.45 mm, outlet wire: 0.04-0.15 mm
(3)Raw material: copper
(4)Capstan Quantity: 4 PCS(horizontal)
Product Parameters

Machine type	SY-24VD
Control system	Push Button
Inverter control	Dual Inverter control
Drawing dies No./Max.	24
Inlet diameter	0.12- 0.45mm
Outlet diameter	0.04- 0.15mm
Drawing line speed	2500m/min
Slip ratio of m/c	10.5%
Frame	Ironed cast
Capstan	Ceramic plasma capstan
Main motor	5.5KW
Spooler motor	2.2KW
Spool bobbin size	Φ250mm or customized
Machine dimension	2000×1600×1900mm
Machine weight	1700KG

Machine Characteristic
1. Ironed cast body is very strong.
2. Adopting world-famous bearings and belt-type transmission with low noise.
3. Drawing capstan of Super Fine Copper Wire Drawing Machine arranged in horizontal type, which is easier to operate.
4. The Double inverter can keep the outlet wire with stable tension and the wire seldom breaks.
Testing Photo
Delivery Photo
Company Profile
Mentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.
Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.
Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers.

FAQ
Q1: What's the payment terms?
A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.
Q2: How about the after-sell service?
A2: The engineer will be dispatched as needed.
Q3: How much need pay for after-sell service?
A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage.
Q4: Can you support a complete project instead of a single machine?
A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.
Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
