Rh300t High Finished Product Rate Rubber Injection Molding Machine

Product Description

Product Description

Detailed specifications	LD-RH200T	LD-RH250T	LD-RH300T
Locking force	2000KN	2500KN	3000KN
Main Cylinder trip	500mm	500mm	500mm
Hot plate size	550*600mm	550*600mm	650*700mm
Cylinder diameter	1500cc	2500cc/3500cc	3500cc
Hydraulic motor power	11kw+0.37kw*3	11kw+0.37kw*3	15kw+0.37kw*3
System pressure	21mpa	21mpa	21mpa
Machine size	3600*3400*260000	2850*3800*2750(adjustable)	3500*2300*5300(adjustable)
Heating power	15.6kw+2kw*3	15.6kw+2kw*3	18.6kw+2kw*3
Oil tankcapacity	400L	400L	400L
Tonnage	200T	250T	300T

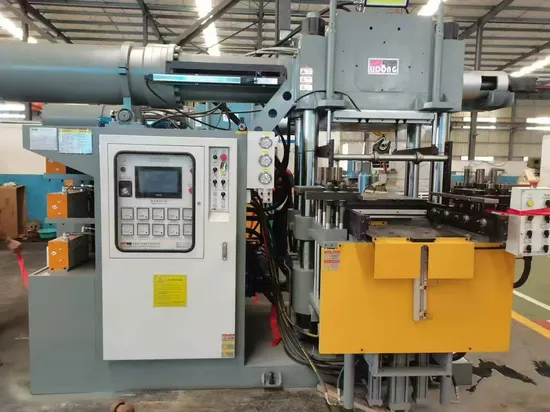

Detailed Photos
Machine core parts Adopt foreign imported, such as Sino-US joint venture PLC control system, Taiwan HYTEK Hydraulic pump, France Telemecanique Solid state relay Japan Oil seals and other international brands accessories, stable quality, superior performance, low failure rate.

NO.	Name	Manufacturer	Manufacture
1	PLC control system	Thinget	Sino-US joint venture
2	Touch Screen	Thinget	Sino-US joint venture
3	Electrical components	Telemecanique	France
4	Solid state relay	Telemecanique	France
5	Oil Seal	NOK/BS	Japan/Taiwan
6	Pressure auge	ZFYB	Taiwan
7	Hydraulic Pump	Hytek	Taiwan

Our Advantages 1.Adopting the horizontal advanced injection structure,the injection force is stable and reliable.
2.With mold design,quantitative injection control,can greatly improve the ineffective raw edge.Saving time and material suitable for the rapid replacement of different colour performance rubber production.
3.The parallesim between upper and lower hot plates is less than 0.1mm.
4.Our machines have passed ISO SGS certificate.

Company Profile

FAQ 1.What is your sample policy? We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
2.Are you a manufacturer or a trading company? We are a manufacturer.Welcome to visit our factory.We can provide OEM and ODM services.
3.What is the production capacity of your factory? The annual output is 1200 units.
4.How about the delivery time? Within 2-3 months after we received payment.
5.What is the minimum order quantity? One machine.
6.Do you have QC or any Safety standards for your Rubber injection molding machine? Yes,We have established a highly strict quality control department to guarantee good quality.
