186f Diesel 9HP Weeding Machine Mini Power Tiller Farm Tiller Cultivator

Product Description

Product Description

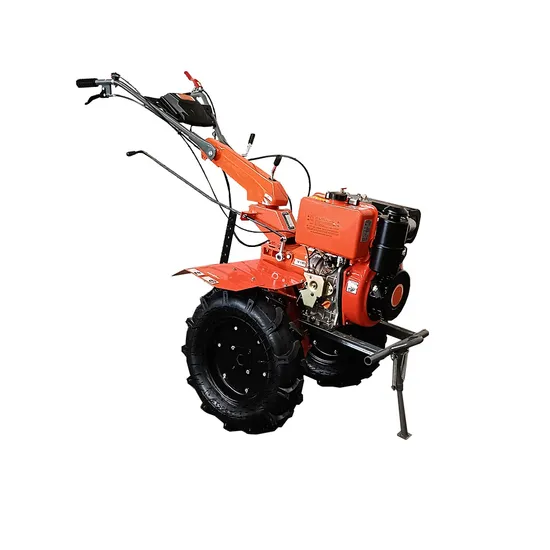

186F Diesel Weeding Machine Mini Power Tiller
186F diesel power tiller is a kind of fully functional, adaptable, easy to operate, durable and energy-saving and environmentally friendly agricultural machinery and equipment. It plays an important role in agricultural production and provides farmers with an efficient and convenient way of farming.
Frame and handrail: The frame is the main structure of the powe tiller and is used to support and connect the various components. The handrail is used for the operator's grip and maneuvering, and is usually adjustable in height to suit different heights and operating needs.
Rotary Tillage Cutter: The rotary tillage cutter is the main working part of the power tiller and is used for tilling the soil. It usually consists of several blades, which rotate through the power transmitted by the transmission part to realize the cutting and tilling of soil.
Strong durability: this kind of micro tiller is made of high-quality materials and advanced technology, which is characterized by strong durability. Its key components such as the engine, transmission part and rotary plow knives are subject to strict quality control and testing to ensure stable performance and reliability in long-term use.
Energy saving and environmental protection: 186F diesel micro-tiller adopts diesel fuel as its power source, which is characterized by low fuel consumption and low emission. Meanwhile, its engine is air-cooled, eliminating the need for an additional cooling system, further reducing energy consumption and emissions.

Product name			186F Diesel Farm Tiller Cultivator
Model Name			1WG6.5-135FQ-ZC
Specification Model			Handheld
Matching Engine	Model Name		186F Diesel engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		6.5 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Diesel
Overall dimension(mm)			1740x1350x800 mm
Weights			110kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:145 r/min Slow gear S:83 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	24
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1350 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤30 kg/hm ²

Detailed Photos

Increase the oxygen content of the intake air: the filter element can not only filter out the dust and impurities in the air, but also increase the oxygen content of the intake air, which makes the engine burn more fully, thus improving the power performance of the power tiller.
The starter of the power tiller is the key component to ensure the engine can be started smoothly, this starter has the advantages of compact structure, reliable starting, etc., which can ensure the power tiller can be started smoothly even in the bad working environment.
Optimized Weight Distribution: carefully balanced fuel tank placement enhances the machine's stability and maneuverability,features like flame arrestors and overfill prevention mechanisms ensure safe, hassle-free refueling.
Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:1 Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.
