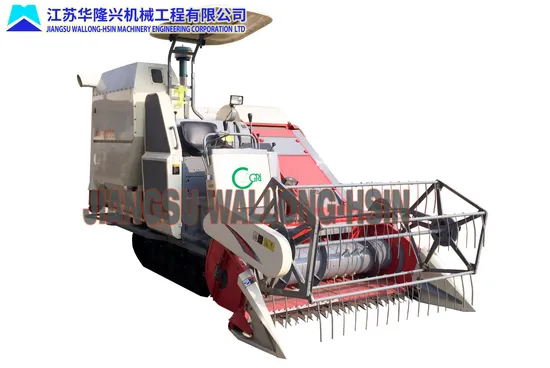

Paddy Wheat Combine Harvester Cag-2000b-75HP Farm Machinery
| US$13,000.00-18,000.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
CAG-2000B
Application
Rice, Corn, Wheat, Soybean, Paddy
Power Source
Diesel
Harvest method
Cutting
Drive Type
Hydraulic Transmission
Transmission
Belt
Portable Harvester Type
Self-Propelled Rubber Track Full Feed
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture
Warranty
12 Months
Feed Capacity
2.5 Kg/S
Fuel Tank Capacity
60 L
Rated Power
75HP
Cutting Width
2000 mm (2200 mm Optional)
Grain Tank
250 Kg
Fuel Consumption
18-28 Kg/Ha
Min Ground Clearance
310 mm
Transport Package
Complete in Container
Specification
4680mm*2300mm*2650mm
Trademark
Cagri
Origin
China
HS Code
843351009
Production Capacity
10000 Pieces/Year
Product Description
Product DescriptionCA-2000B is new generation of full-feed combine harvester with the characteristics of comfortable driving, low noise, high reliability, excellent operating performance, and strong paddy field passing ability.
The threshing system is Dual Spiked Tooth Tangential Flow. The combine harvester is mainly used for the harvesting of rice and wheat.
The horse power of diesel engine: 61hp / 75hp / 88hp; cutting width: 2000mm / 2200mm; Hydrostatic Transmission(HST); The width of rubber track: 400mm / 450mm / 500mm; Standard hydraulic discharging pipe.
Detailed Photos
Product Parameters
| Model | CAG-2000B | |
| Type | Self-propelled Full-Feed Crawler | |
| Engine | Type | Water-cooled, 4stroke, Turbocharged Vertical Diesel |
| Rated Power (hp) | 75 | |
| Rated RPM (r/m) | 2400 | |
| Dimensions | Overall Length (mm) | 4680 |
| Overall Width (mm) | 2300 | |
| Overall Height (mm) | 2605 | |
| Transmission Type | Third Gear Transmission+HST | |
| HST Displacement (ml/r) | 37 | |
| Operation Weight (kg) | 2400 | |
| Rubber Track (Picth x Number of Pitch x Width) | 90 x 49 x 450 | |
| Track Gauge (mm) | 1150 | |
| Cutting Width (mm) | 2000 | |
| Feed Capacity (t/h) | 7.2 | |
| Min. Gound Clearance (mm) | 310 | |
| Fuel Consumption (kg/ha) | 18-28 | |
| Pickup Reel | Type | Eccentric Reel Teeth |
| Diameter (mm) | 900 | |
| Height Adjustment | Hydraulic | |
| Threshing Cylinder | Type | Dual Spike-tooth type |
| Cylinder No. | 2 | |
| DiameterxLength (mm) | F540x1285, F540x650 | |
| Cleaning | Fan(front blowing+rear suction) | |
| Brake | Wet Friction Discs | |
| Discharging Type | Standard Discharging Pipe/ Manually Grain Collection | |
| Grain Tank Capacity (kg) | 800 | |
| Working Efficiency (ha/h) | 0.25-0.48 | |
